Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58889 |

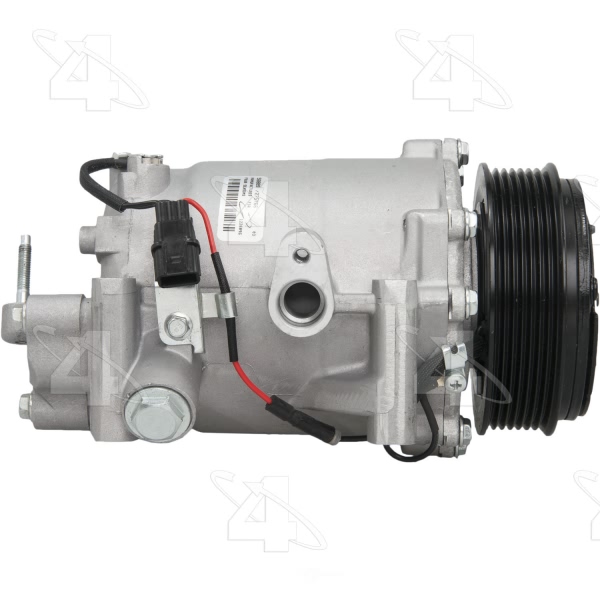

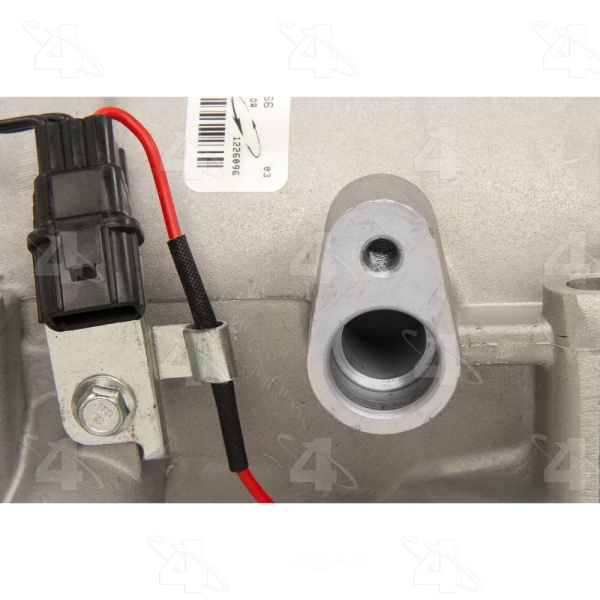

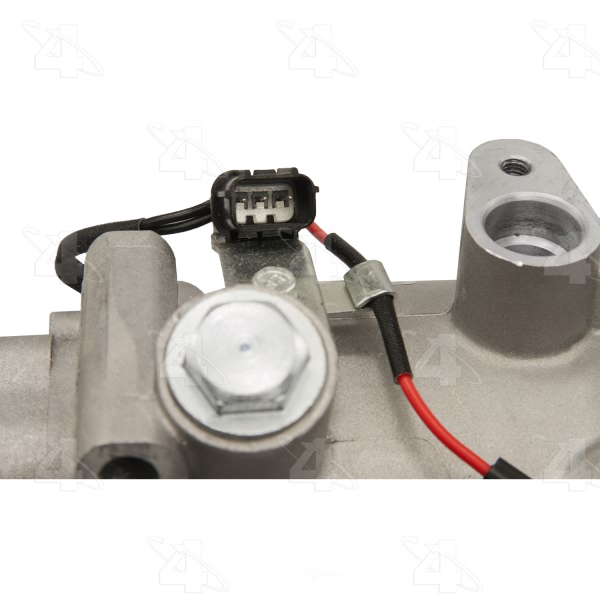

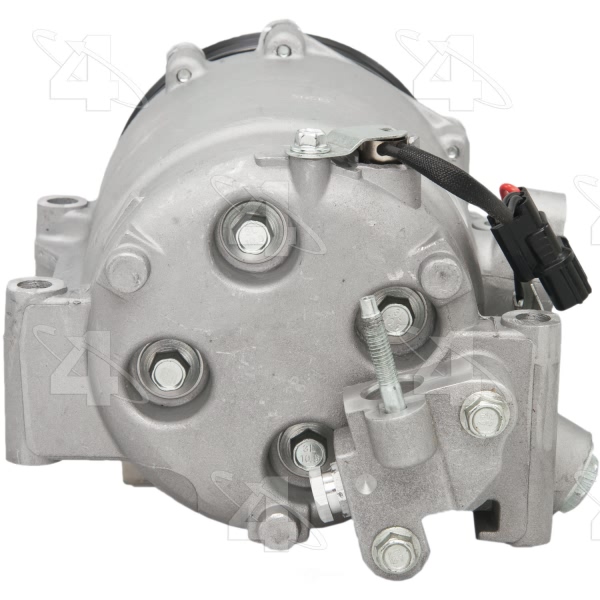

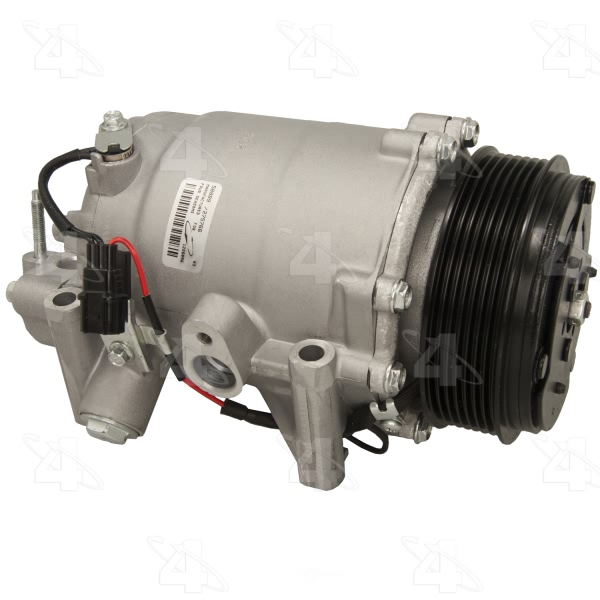

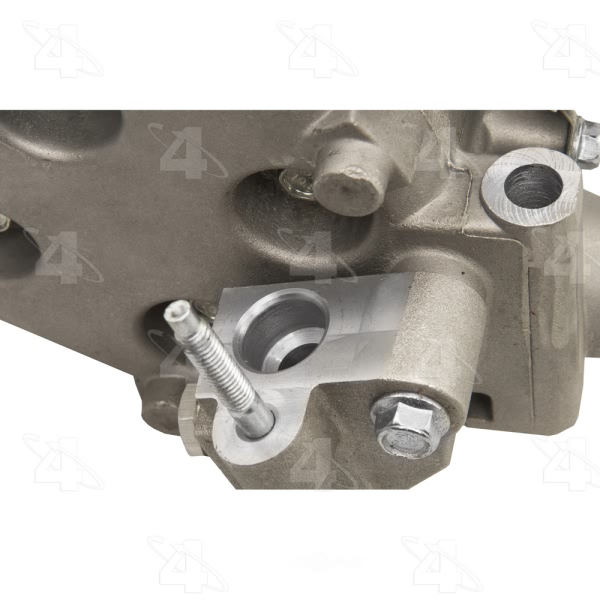

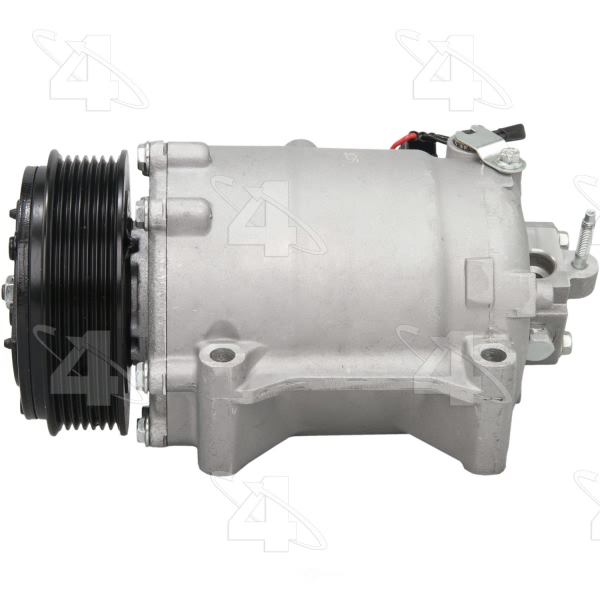

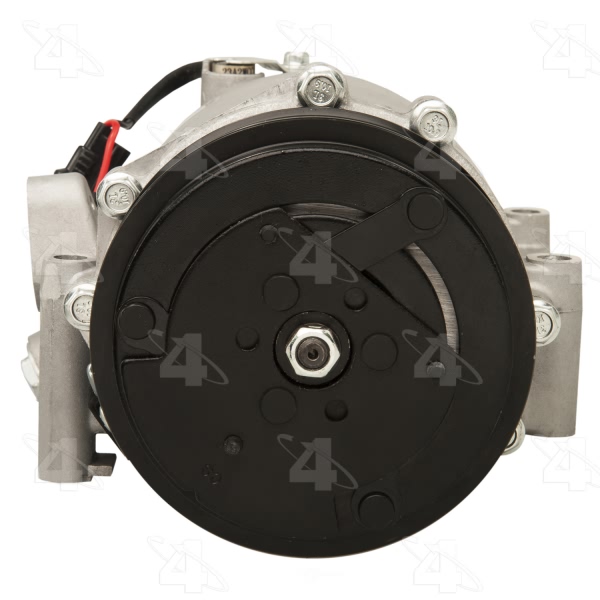

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.330 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | HS090 |
Distance From Clutch To Mounting Flange | 1.350 |
Mount Distance MM | 34.290 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 109.982 |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 4.330 |
Pulley Outside Diameter | 4.330 |
Pulley Ridge Diameter | 4.330 |
Refrigerant Type | R134a |
Switch Included | Heat Switch |
Terminal Type | Pin |
UPC | 096361588899 |
Year Make Model | Trim | Engine |
---|---|---|
2009 Acura TSX | All Trims | All Engines |
2010-2014 Acura TSX | All Trims | 4 Cyl 2.4L |
