Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58660 |

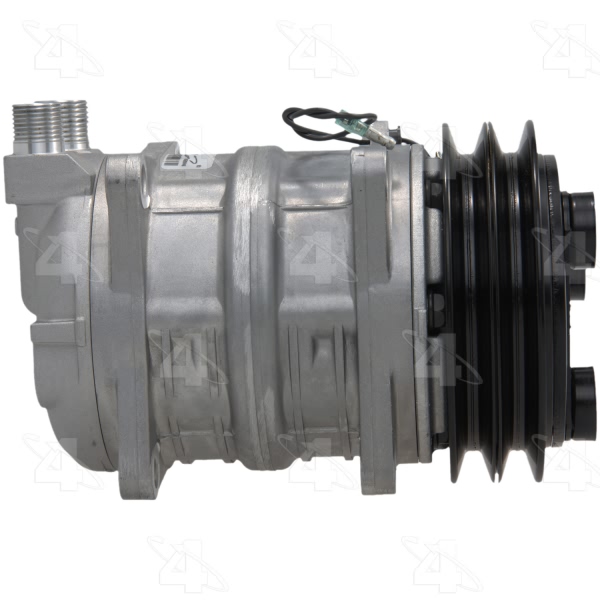

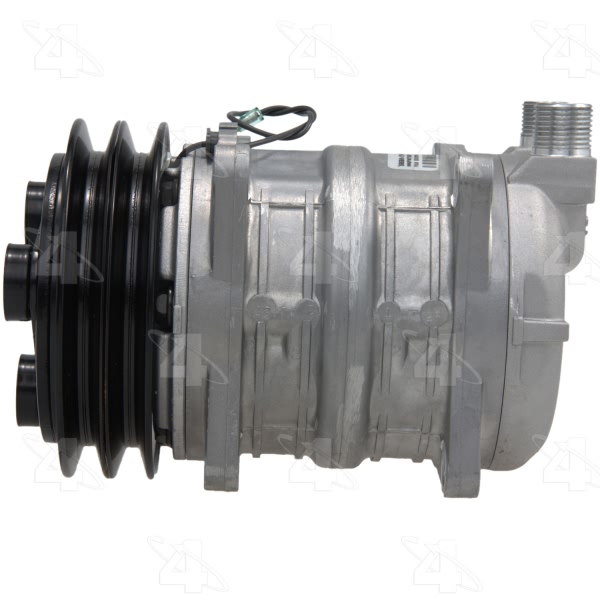

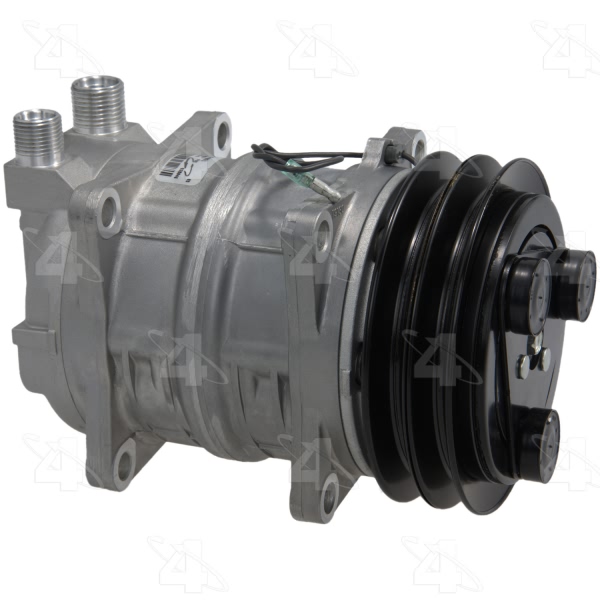

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.500 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.250 |
Coil Clock Position | 12 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | TM13HA |
Distance From Clutch To Mounting Flange | 1.09375 |
Mount Distance B IN | 1.750 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |

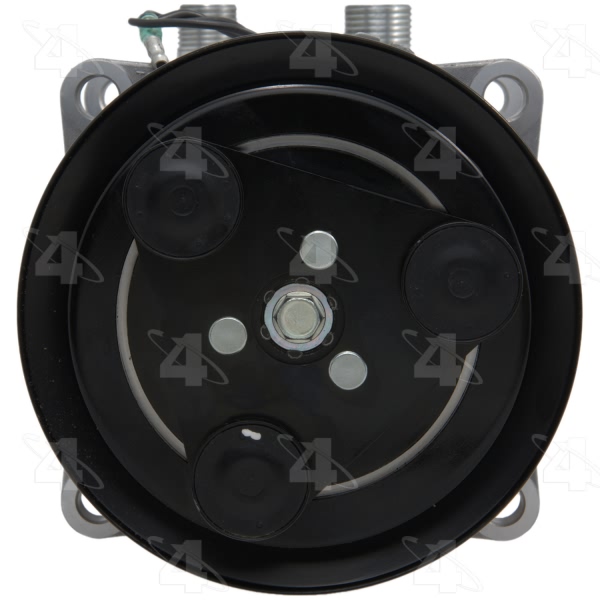

Pulley Belt Type | V-Belt |
Pulley Diameter MM | 133.350 |
Pulley Groove Quantity | 2 |
Pulley Lip Diameter | 5.250 |
Pulley Outside Diameter | 5.250 |
Pulley Ridge Diameter | 5.250 |
Refrigerant Type | R134a |
Suc Prt Typ Note | #8 and #10 |

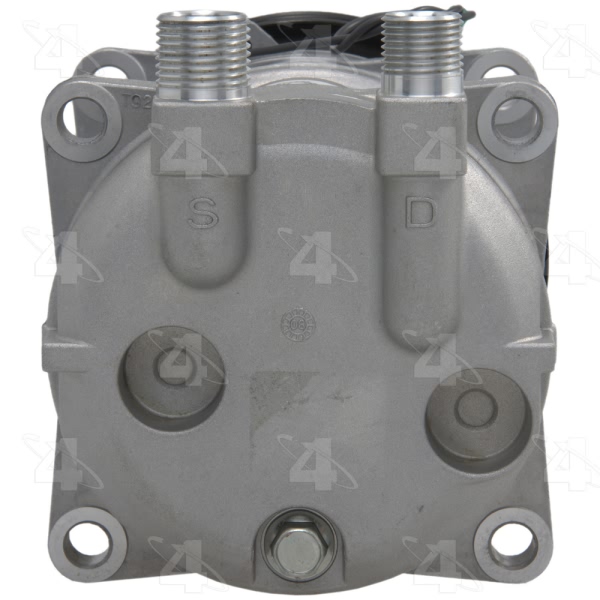

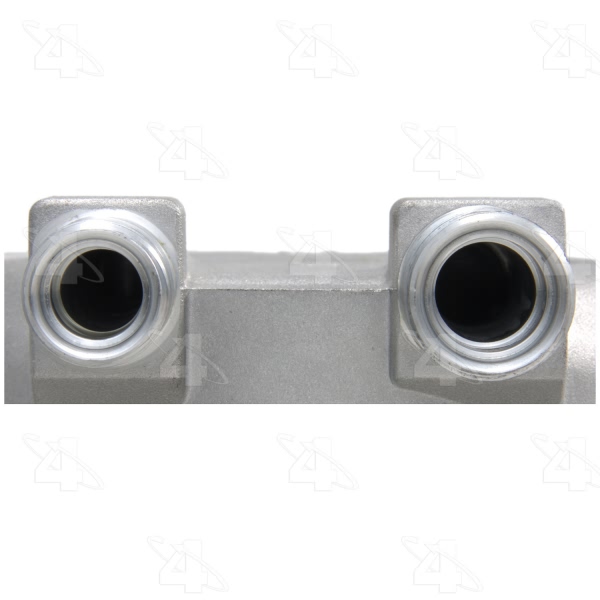

Suction Port Type | O-Ring |

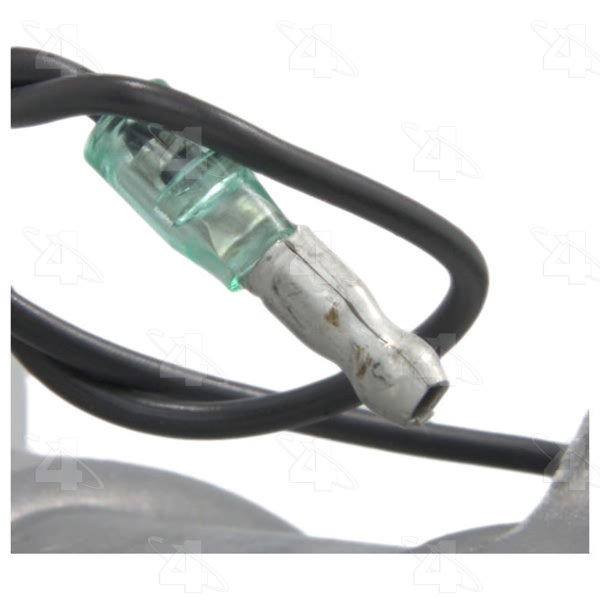

Terminal Type | Bullet |
UPC | 096361586604 |
Year Make Model | Trim | Engine |
---|---|---|
1984 Honda Accord | All Trims | All Engines |
