Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58581 |

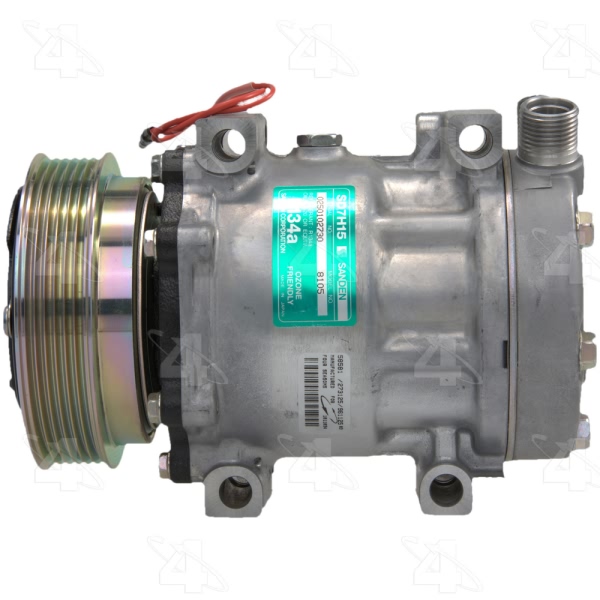

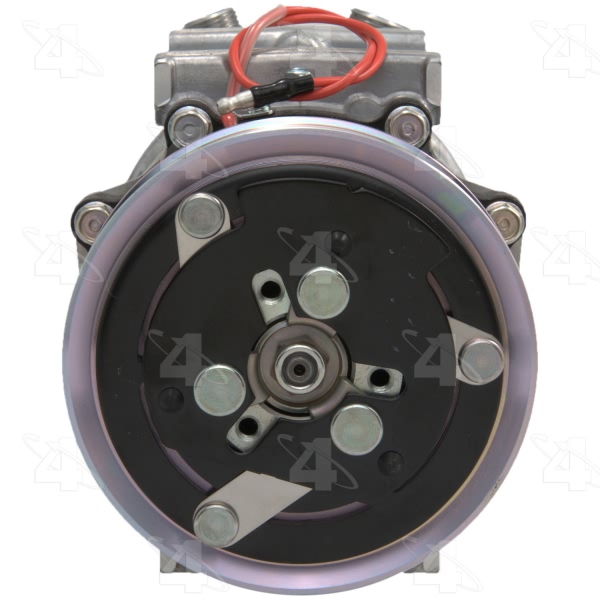

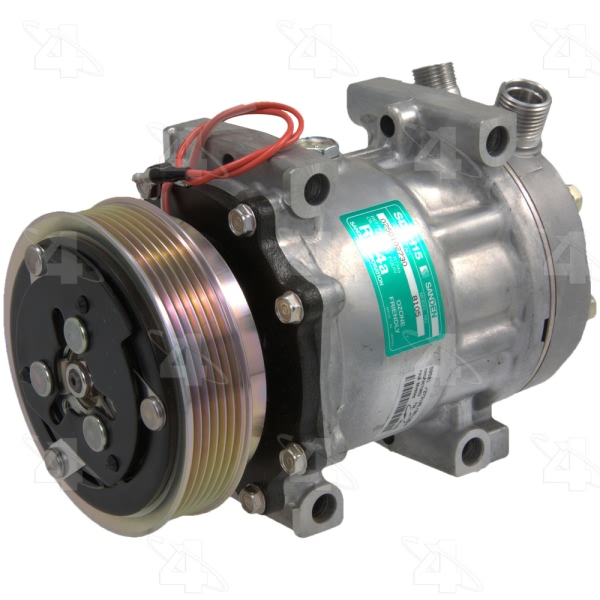

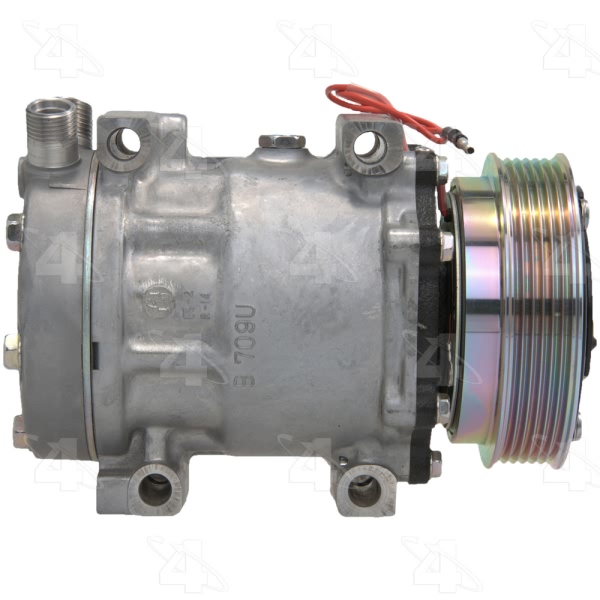

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.859375 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |

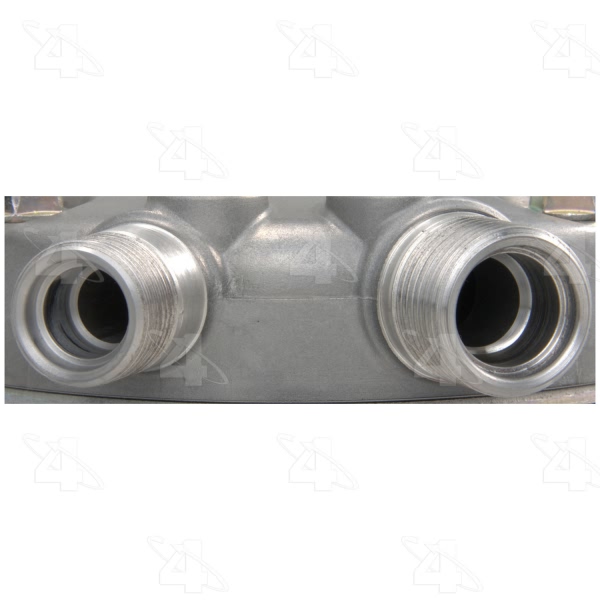

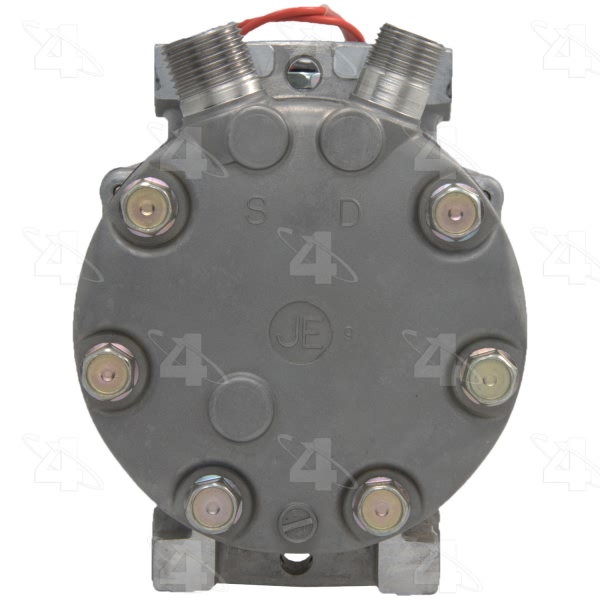

Comp Head Prt Config | Top-Vert O-Ring |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Head Type | FG/FJ |
Compressor Type | SD709 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.703125 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 123.190 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.859375 |
Pulley Outside Diameter | 4.859375 |
Pulley Ridge Diameter | 4.859375 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

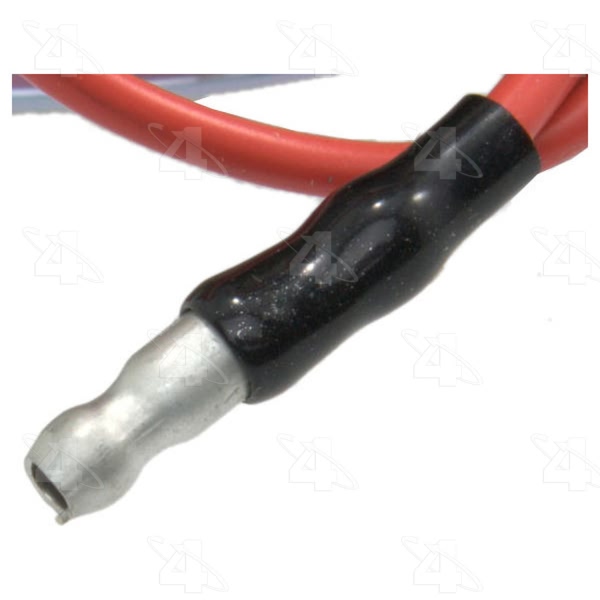

Terminal Type | Bullet |
UPC | 096361585812 |
Year Make Model | Trim | Engine |
---|---|---|
1988-1989 Ford Aerostar | All Trims | All Engines |
1990-1992 Ford Aerostar | All Trims | 6 Cyl 3.0L |
1990-1996 Ford Aerostar | All Trims | 6 Cyl 4.0L |
1994-1996 Ford Aerostar | All Trims | 6 Cyl 3.0L |
1988 Ford Bronco | All Trims | All Engines |
1989-1992 Ford Bronco | All Trims | 6 Cyl 4.9L |
1989-1992 Ford Bronco | All Trims | 8 Cyl 5.0L |
1989-1992 Ford Bronco | All Trims | 8 Cyl 5.8L |
1993-1995 Ford Bronco | All Trims | All Engines |
1985 Ford Bronco II | All Trims | 6 Cyl 2.8L |
