Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58568 |

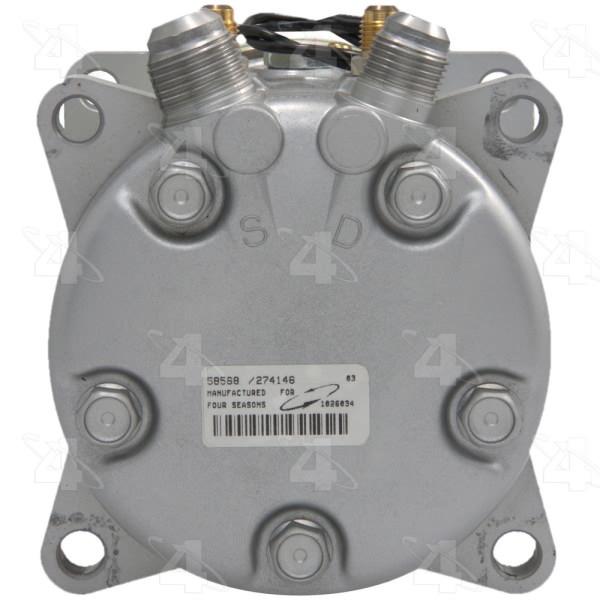

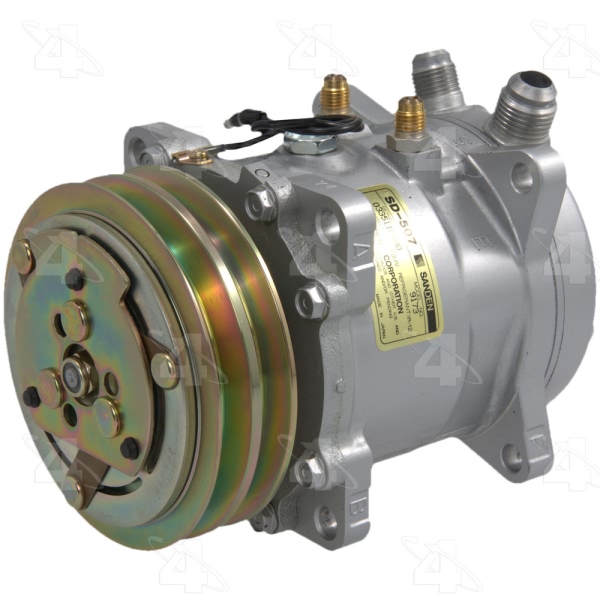

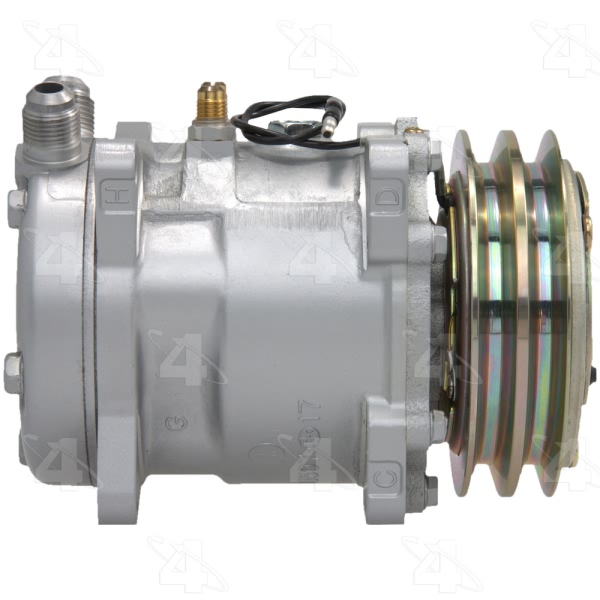

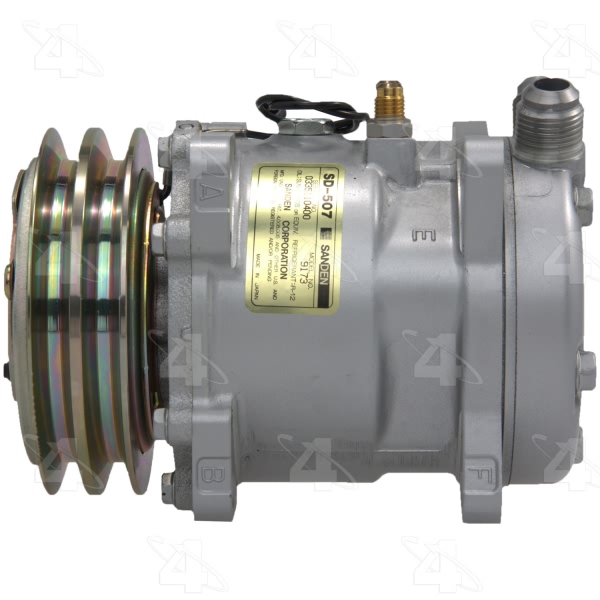

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.500 |

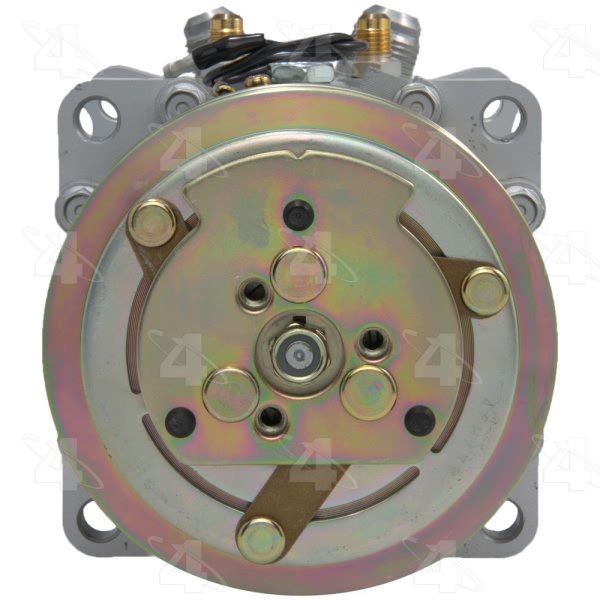

Clutch Included | Yes |
Clutch Maximum Diameter | 4.875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Comp Head Prt Config | Top-Vert-Flare |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Head Type | E |
Compressor Type | SD507 |

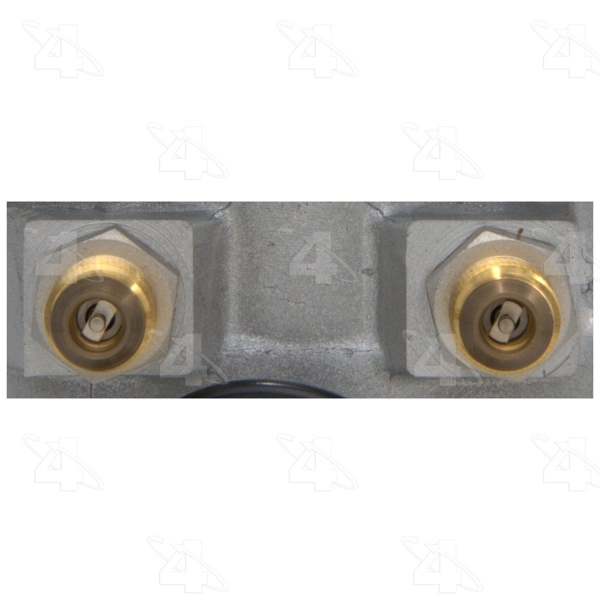

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.125 |
Mount Distance B IN | 1.750 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | Not Required |
O-Ring A Quantity | NR |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 123.698 |
Pulley Groove Quantity | 2 |
Pulley Lip Diameter | 4.875 |
Pulley Outside Diameter | 4.875 |
Pulley Ridge Diameter | 4.875 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

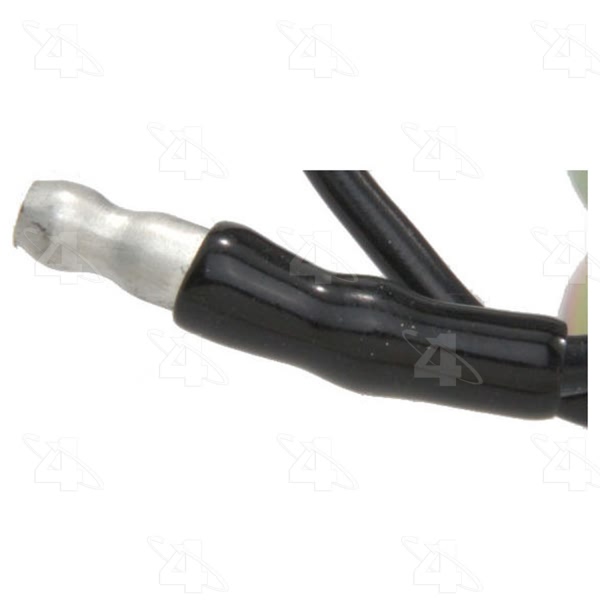

Terminal Type | Bullet |
UPC | 096361585683 |
Year Make Model | Trim | Engine |
---|---|---|
1982-1989 Alfa Romeo Spider | All Trims | All Engines |
1984 Honda Accord | All Trims | All Engines |
