Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58559 |

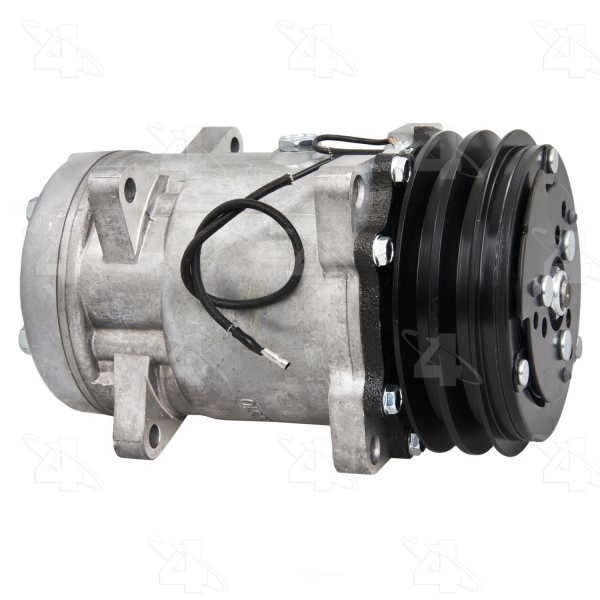

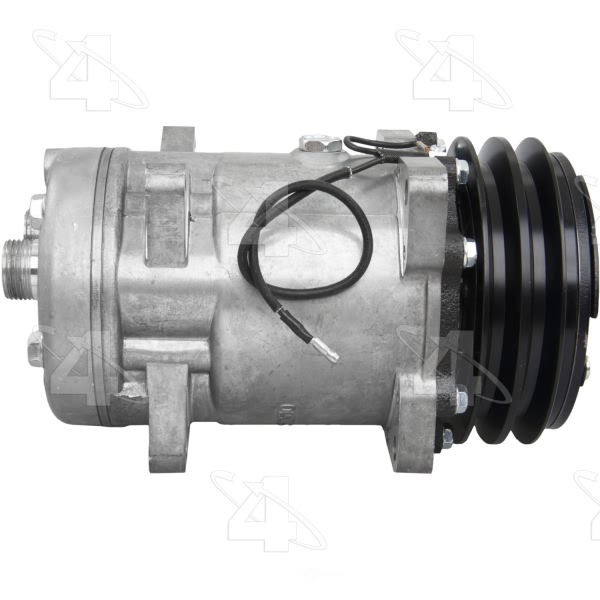

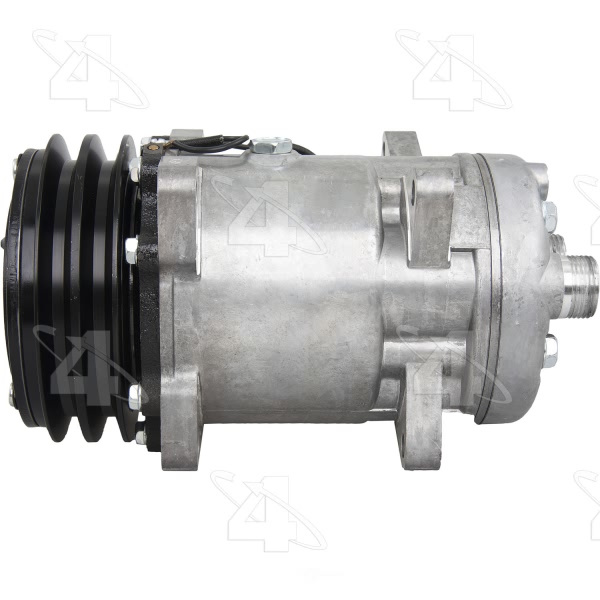

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.500 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Comp Head Prt Config | Rear-Horiz-Tube O |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Head Type | M |
Compressor Type | SD510HD |

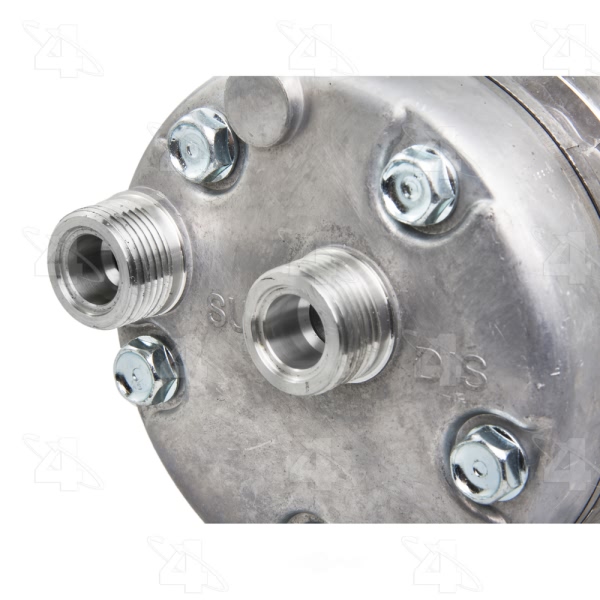

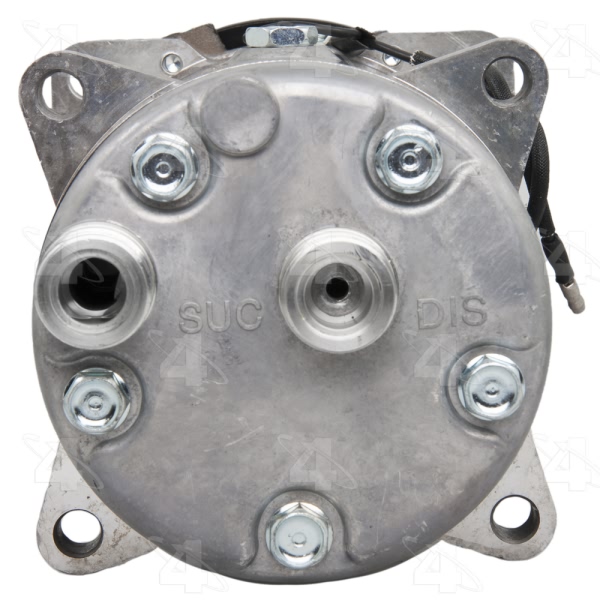

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.953125 |
Mount Distance B IN | 1.546875 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24111] / Mini York Teflon Seal O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |

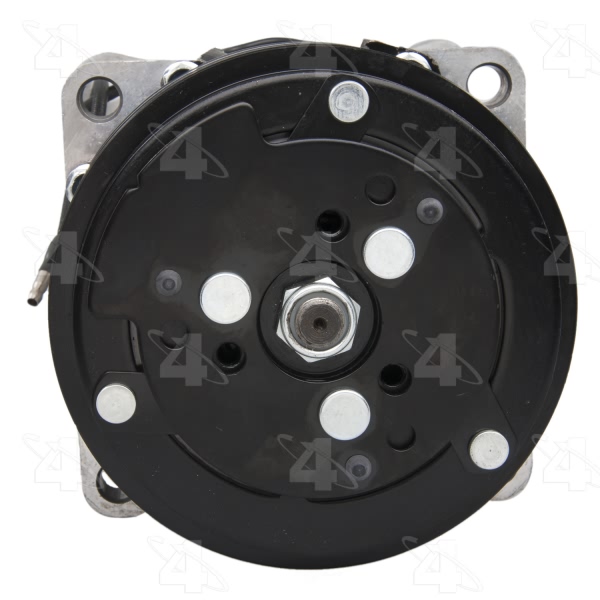

Pulley Belt Type | Serpentine |
Pulley Diameter MM | 130.048 |
Pulley Groove Quantity | 2 |
Pulley Lip Diameter | 5.125 |
Pulley Outside Diameter | 5.125 |
Pulley Ridge Diameter | 5.125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

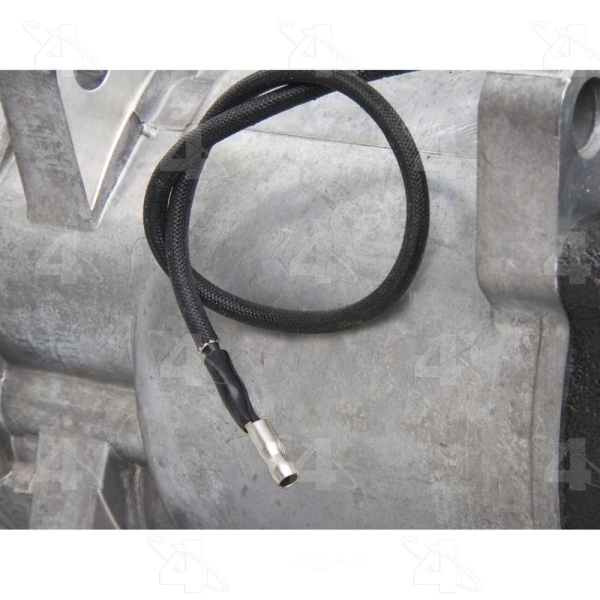

Terminal Type | Bullet |
UPC | 096361585591 |
Year Make Model | Trim | Engine |
---|---|---|
1986 Chevrolet P20 | All Trims | 8 Cyl 5.7L |
1986-1988 Chevrolet P20 | All Trims | 8 Cyl 6.2L |
1986-1989 Chevrolet P20 | All Trims | 6 Cyl 4.8L |
1988 Chevrolet P20 | All Trims | 8 Cyl 5.7L |
1986 Chevrolet P30 | All Trims | 8 Cyl 5.7L |
1986 Chevrolet P30 | All Trims | 8 Cyl 7.4L |
1986-1988 Chevrolet P30 | All Trims | 8 Cyl 6.2L |
1986-1989 Chevrolet P30 | All Trims | 6 Cyl 4.8L |
1988 Chevrolet P30 | All Trims | 8 Cyl 5.7L |
1988 Chevrolet P30 | All Trims | 8 Cyl 7.4L |
