Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58555 |

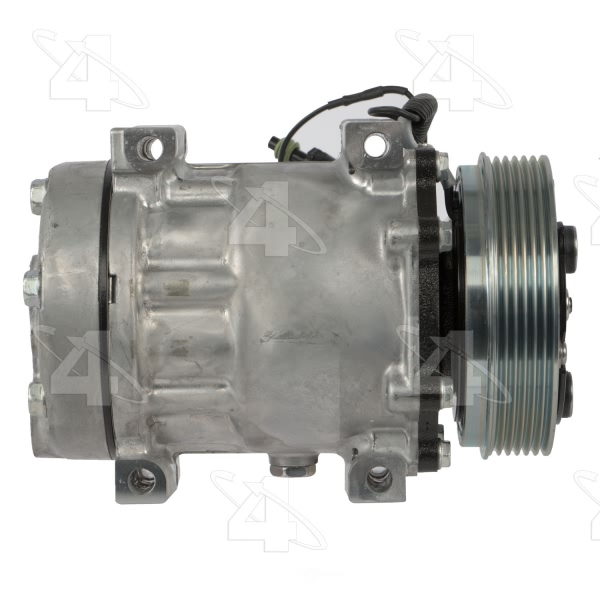

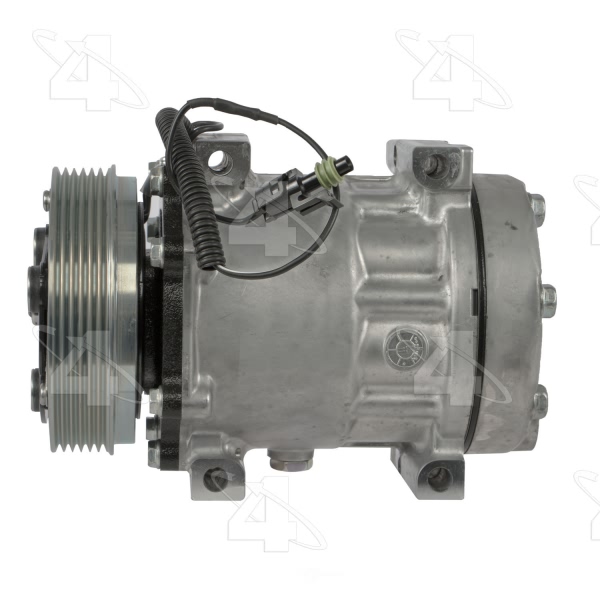

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |

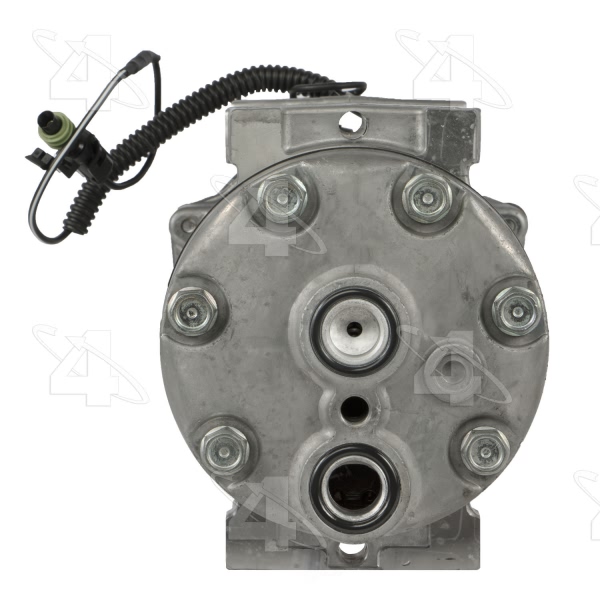

Comp Head Prt Config | Rear-Vert O-Ring |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Head Type | QD |
Compressor Type | SD709 |

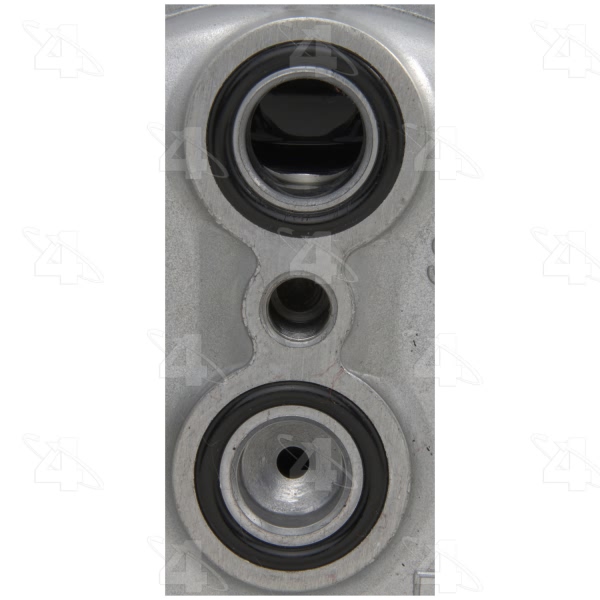

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.40625 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24615] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 120.650 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.750 |
Pulley Outside Diameter | 4.750 |
Pulley Ridge Diameter | 4.750 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

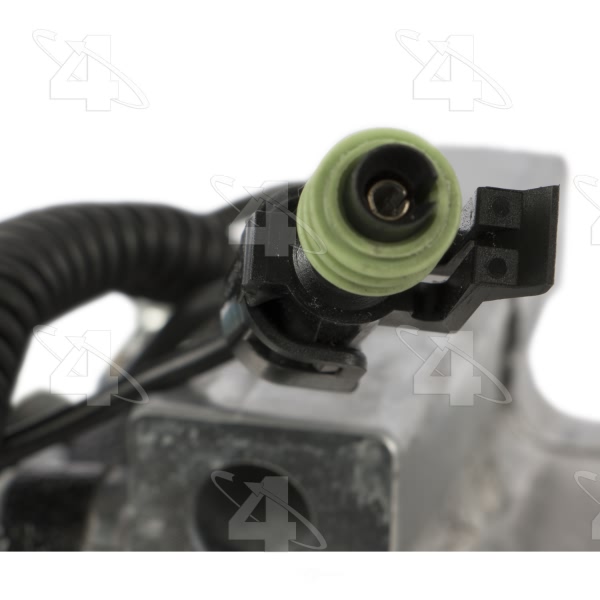

Terminal Type | Bullet |
UPC | 096361585553 |
Year Make Model | Trim | Engine |
---|---|---|
1990-1992 Dodge Monaco | All Trims | All Engines |
1988-1992 Eagle Premier | All Trims | All Engines |
1997-2003 Jeep TJ | All Trims | 6 Cyl 4.0L |
1997-2003 Jeep Wrangler | All Trims | 6 Cyl 4.0L |
