Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58551 |

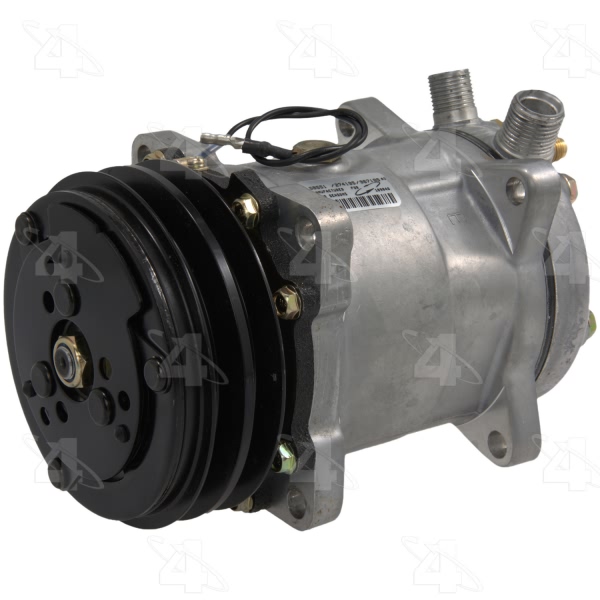

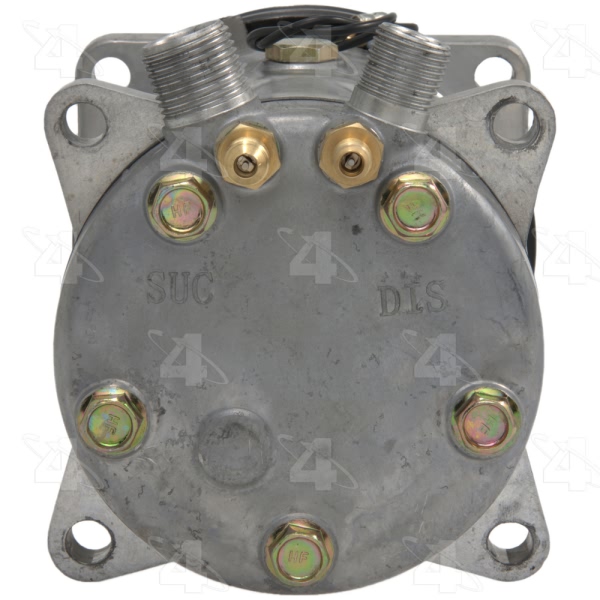

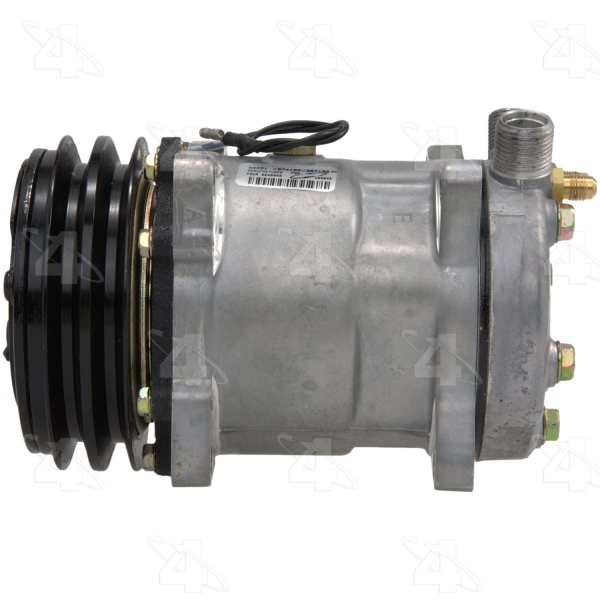

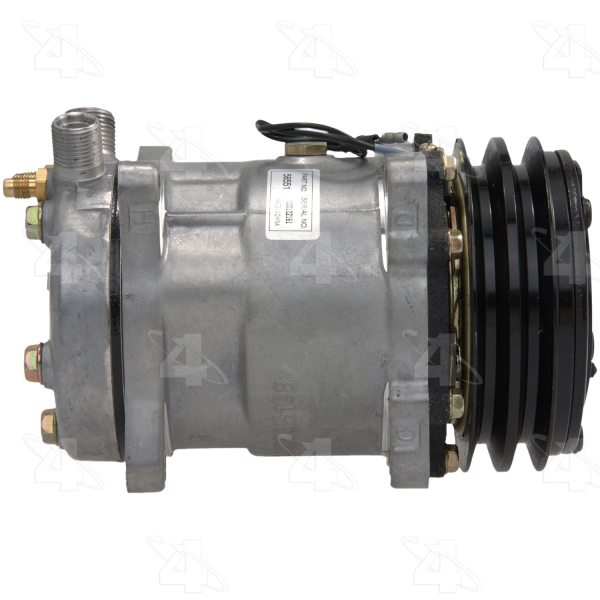

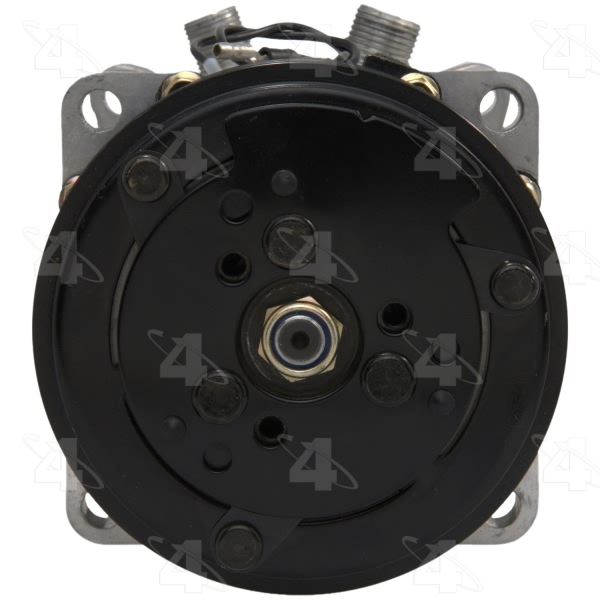

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.500 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.250 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Comp Head Prt Config | Top-Vert O-Ring |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Head Type | FG |
Compressor Type | SD508 |

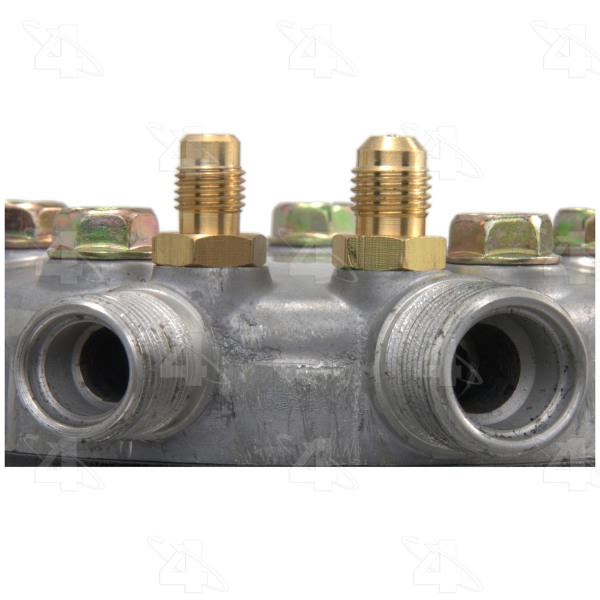

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.953125 |
Mount Distance B IN | 1.546875 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 133.350 |
Pulley Groove Quantity | 2 |
Pulley Lip Diameter | 5.250 |
Pulley Outside Diameter | 5.250 |
Pulley Ridge Diameter | 5.250 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

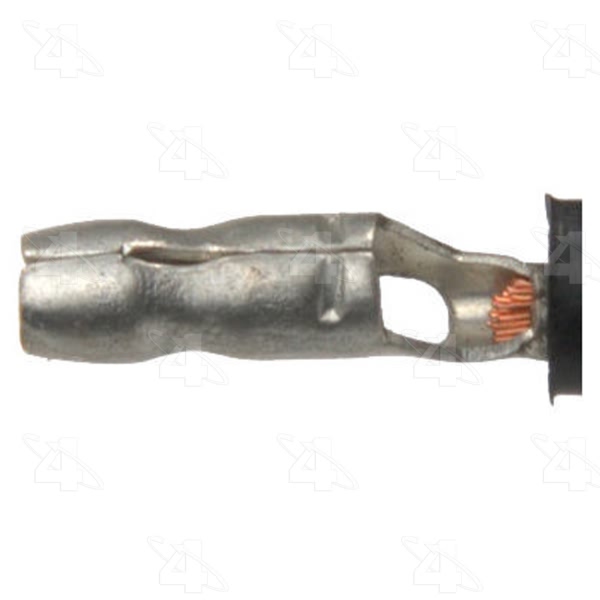

Terminal Type | Bullet |
UPC | 096361585515 |
Year Make Model | Trim | Engine |
---|---|---|
1986-1987 Jeep Cherokee | All Trims | 4 Cyl 2.5L |
1986-1987 Jeep Comanche | All Trims | 4 Cyl 2.5L |
1985-1986 Jeep Grand Wagoneer | All Trims | 8 Cyl 5.9L |
1987-1991 Jeep Grand Wagoneer | All Trims | All Engines |
1985-1987 Jeep J10 | All Trims | 8 Cyl 5.9L |
1988 Jeep J10 | All Trims | All Engines |
1985-1988 Jeep J20 | All Trims | All Engines |
1986-1987 Jeep Wagoneer | All Trims | 4 Cyl 2.5L |
1987-1990 Jeep Wrangler | All Trims | 4 Cyl 2.5L |
1987-1990 Jeep Wrangler | All Trims | 6 Cyl 4.2L |
