Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58463 |

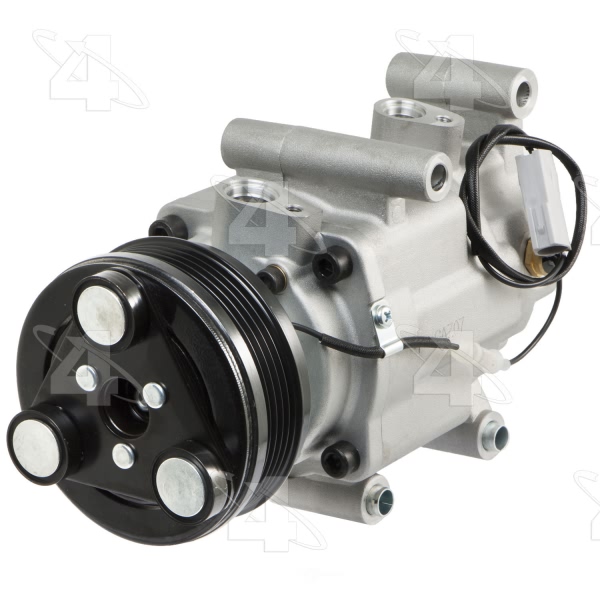

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 3.875 |

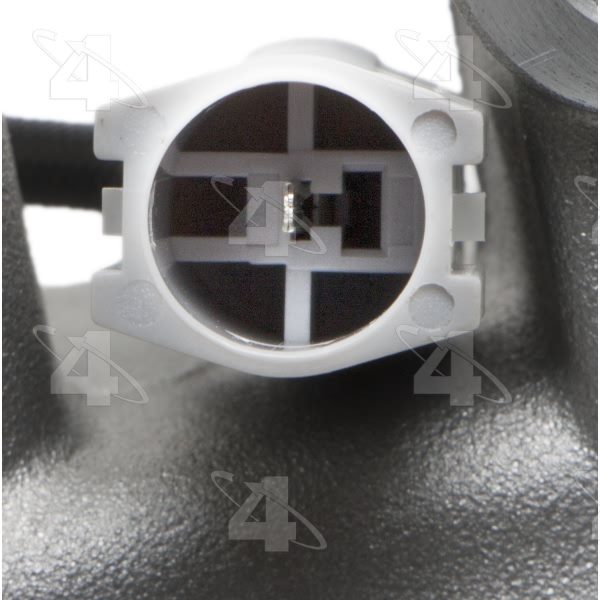

Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | H12A1AH4DX |

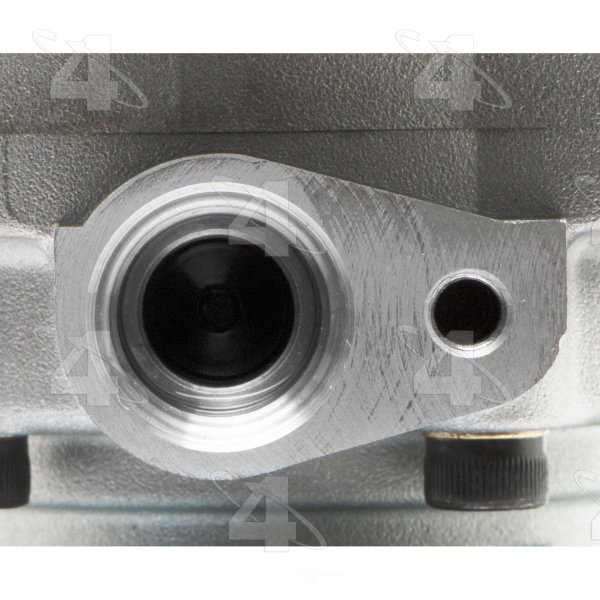

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.40625 |
Mount Distance MM | 35.560 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |

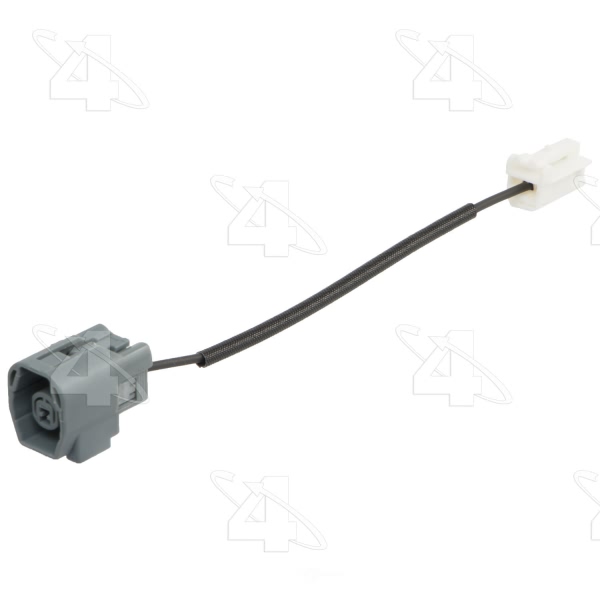

Printed Foot Note | May require use of OE connector |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 98.425 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 3.875 |
Pulley Outside Diameter | 3.875 |
Pulley Ridge Diameter | 3.875 |
Refrigerant Type | R134a |

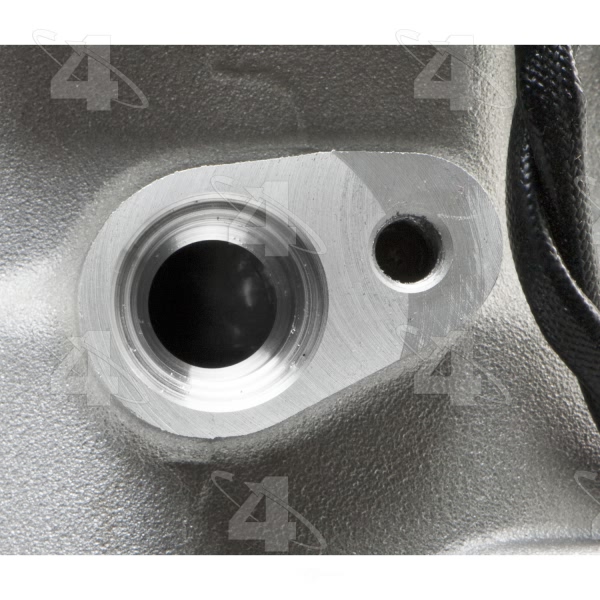

Suction Port Type | O-Ring |
Switch Included | Heat Switch |

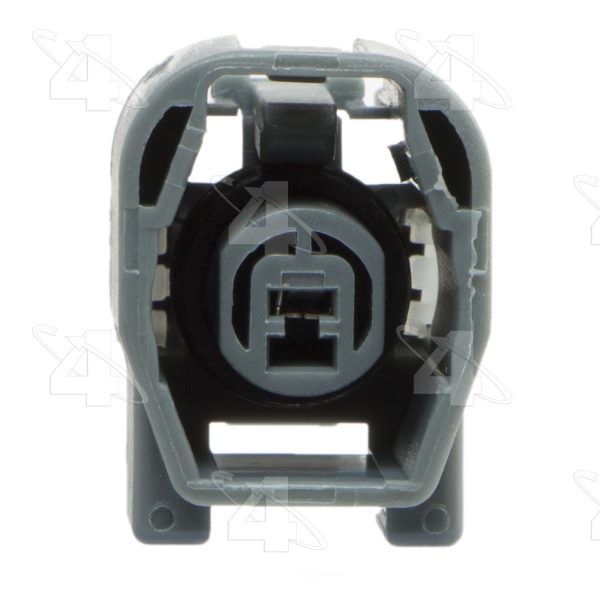

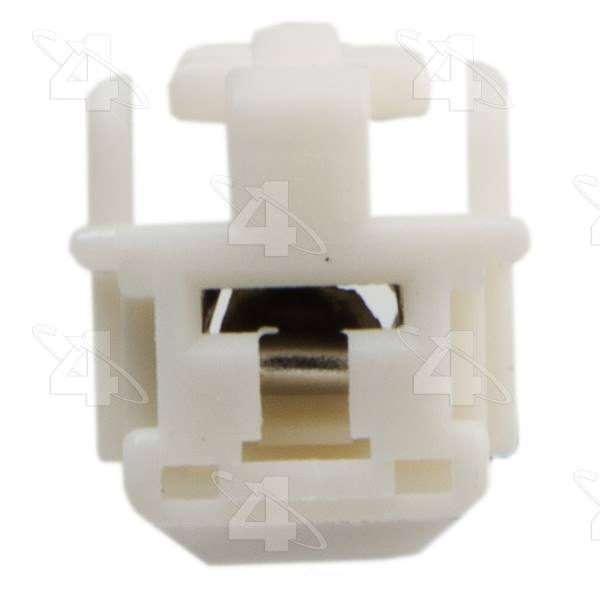

Terminal Type | Pin |
UPC | 096361584631 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2006 Mazda 3 | All Trims | All Engines |
2007 Mazda 3 | All Trims | 4 Cyl 2.0L |
2007 Mazda 3 | i | 4 Cyl 2.0L |
2007 Mazda 3 | All Trims | 4 Cyl 2.3L |
2007 Mazda 3 | Mazdaspeed | 4 Cyl 2.3L |
2007 Mazda 3 | S | 4 Cyl 2.3L |
2008-2009 Mazda 3 | All Trims | All Engines |
2009 Mazda 3 Sport | All Trims | All Engines |
2006-2010 Mazda 5 | All Trims | All Engines |
