Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58456 |

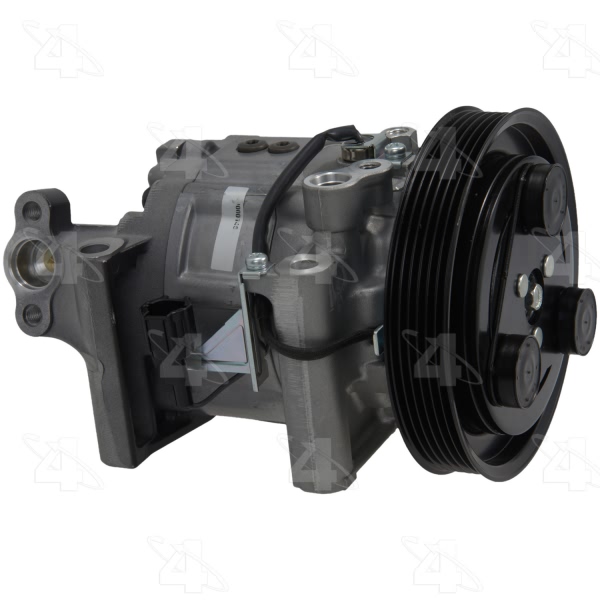

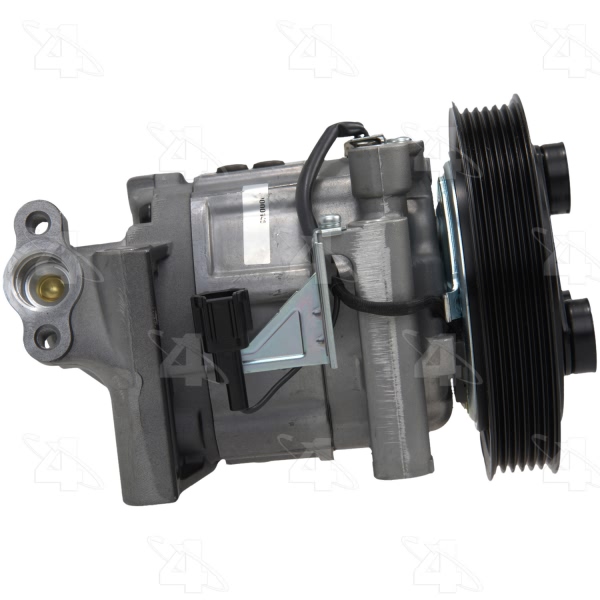

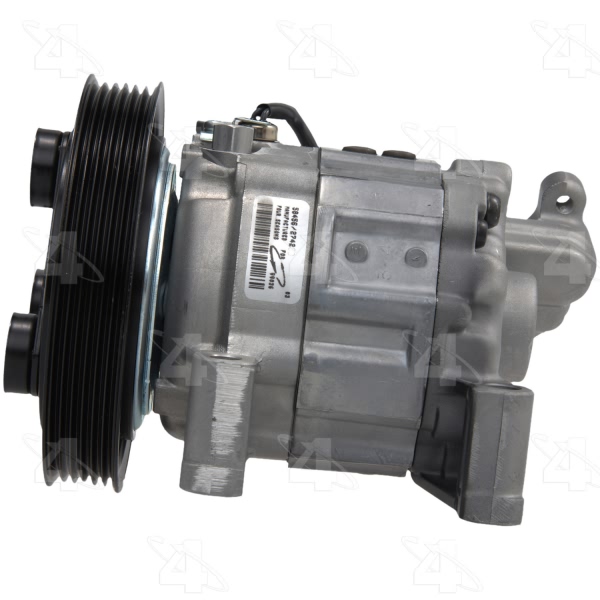

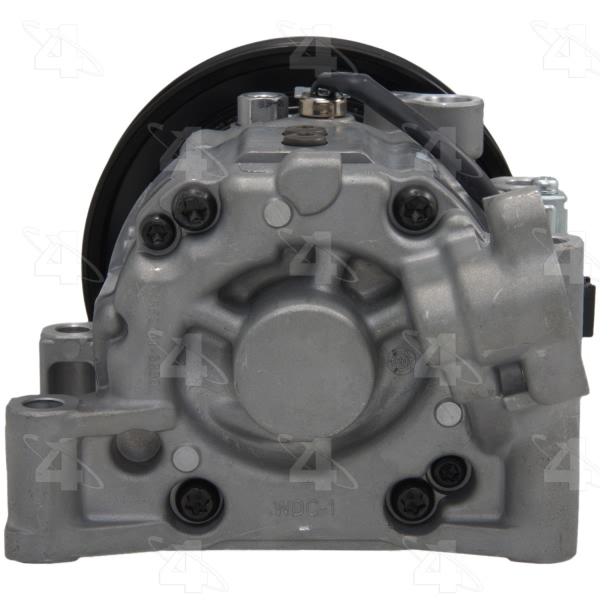

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.875 |
Belt Width MM | 22.225 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.625 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Type | DKV14D |

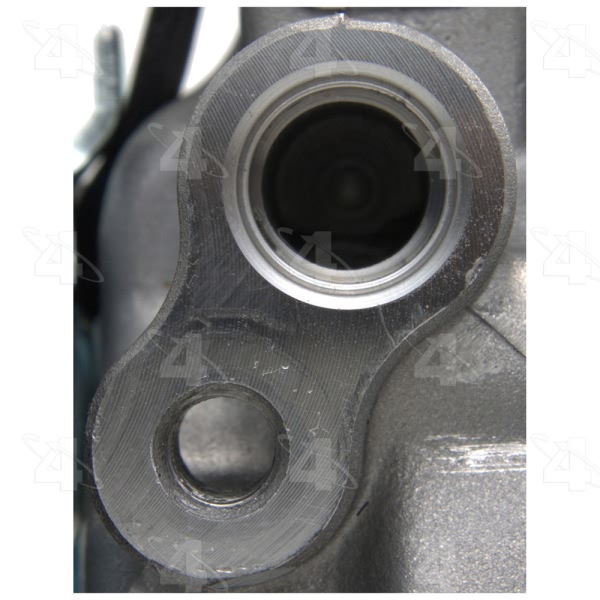

Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 1.000 |
Mount Distance MM | 25.400 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24612] / Green O-Ring |
O-Ring B Quantity | 1 |

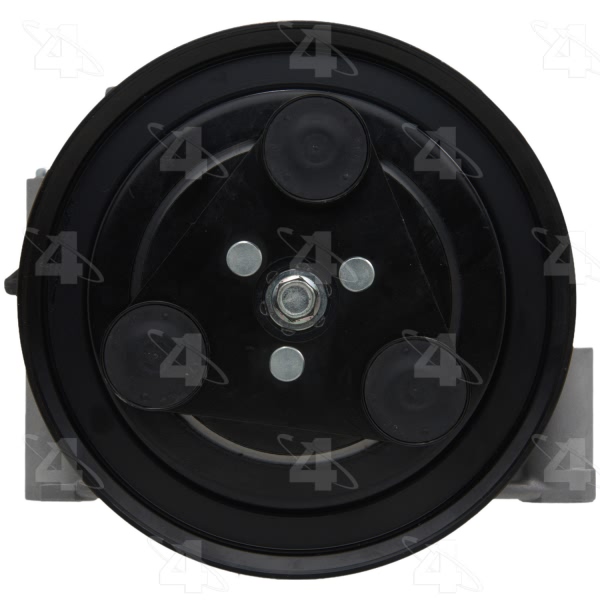

Pulley Belt Type | Serpentine |
Pulley Diameter MM | 142.748 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.625 |
Pulley Outside Diameter | 5.625 |
Pulley Ridge Diameter | 5.625 |
Refrigerant Type | R134a |

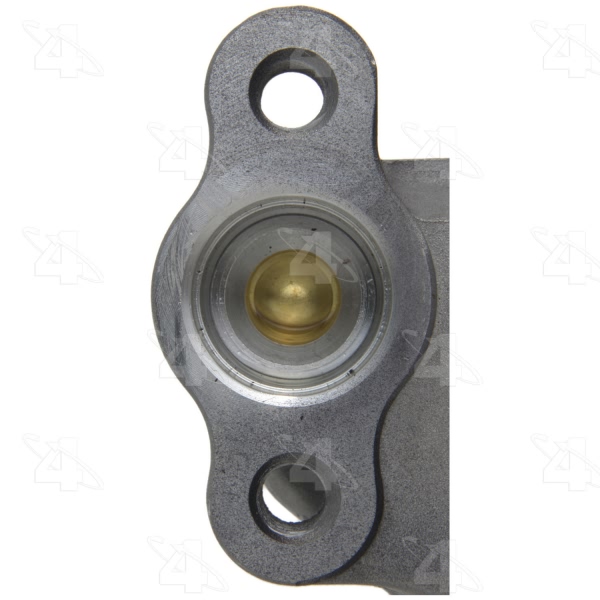

Suction Port Type | Pad Mount |
Switch Included | Heat Sensor |

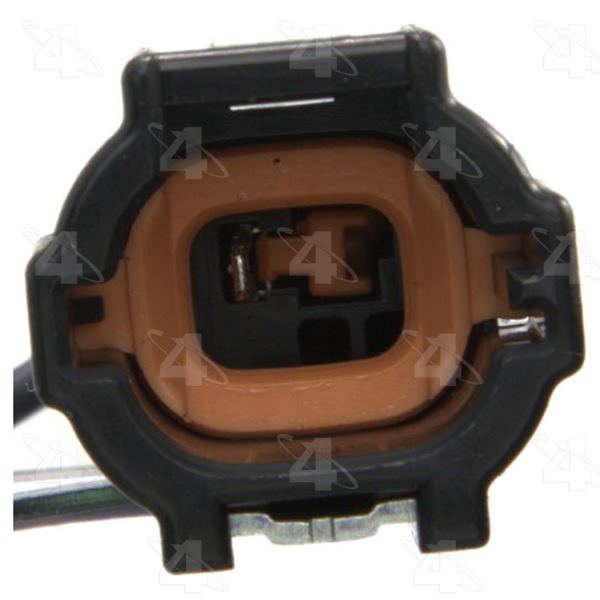

Terminal Type | Pin |
UPC | 096361584563 |
Year Make Model | Trim | Engine |
---|---|---|
1995-1998 Nissan 200SX | All Trims | All Engines |
1999-2000 Nissan Lucino | All Trims | 4 Cyl 1.6L |
1993 Nissan NX | All Trims | 4 Cyl 2.0L |
1993-1994 Nissan Sentra | All Trims | 4 Cyl 2.0L |
1995-1997 Nissan Sentra | All Trims | All Engines |
1998 Nissan Sentra | All Trims | 4 Cyl 1.6L |
1995-1999 Nissan Tsubame | All Trims | All Engines |
1993 Nissan Tsuru | All Trims | 4 Cyl 1.6L |
1993-1994 Nissan Tsuru | All Trims | 4 Cyl 2.0L |
1995-1998 Nissan Tsuru | All Trims | All Engines |
