Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58451 |

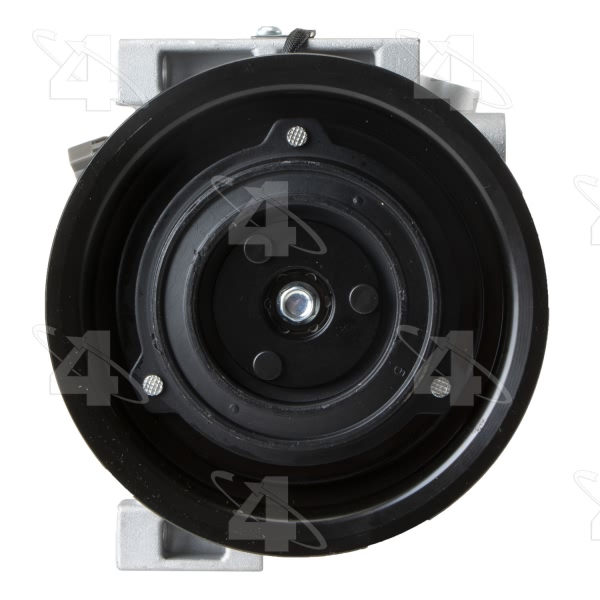

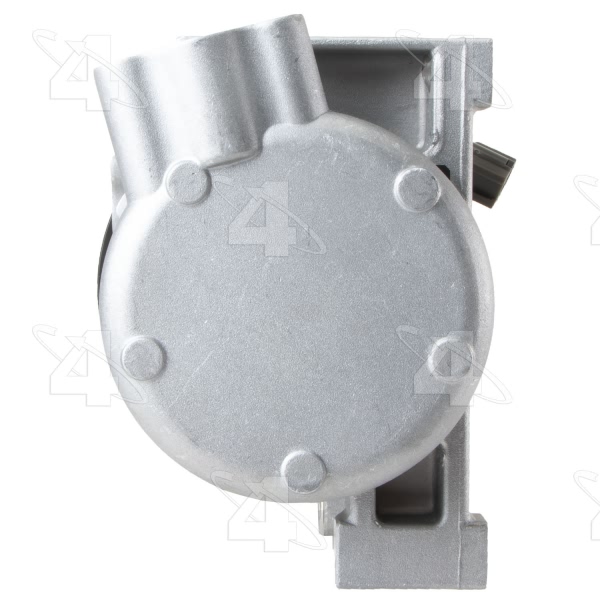

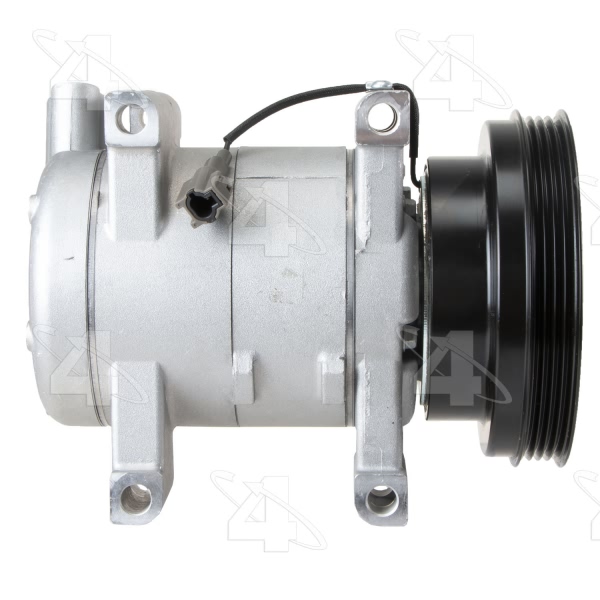

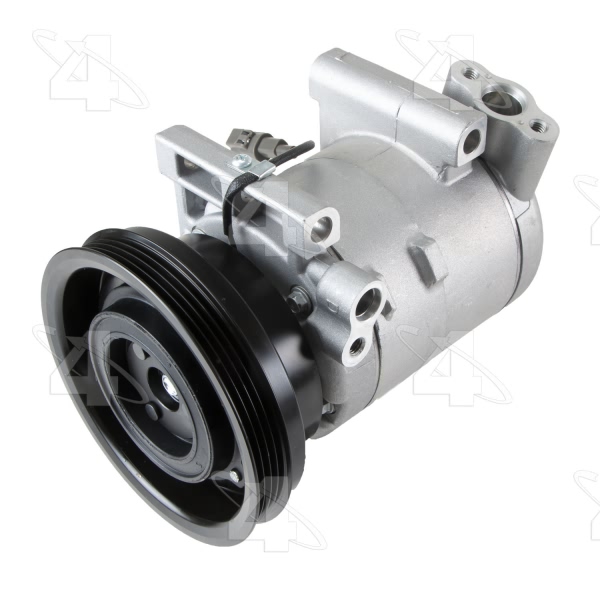

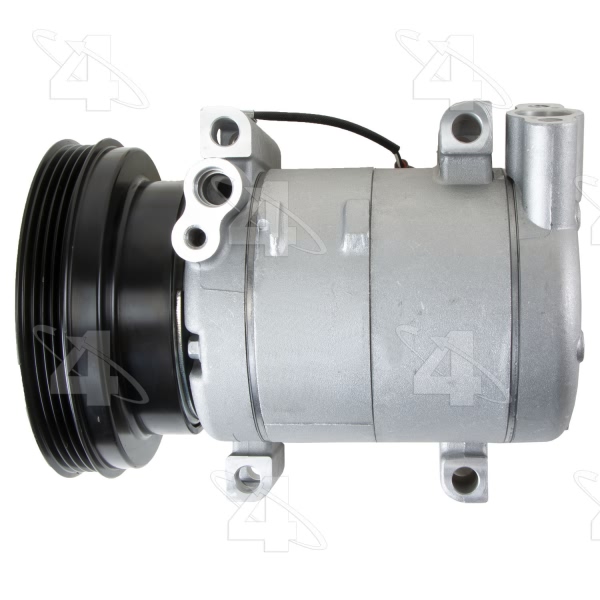

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.250 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | DKV14D |

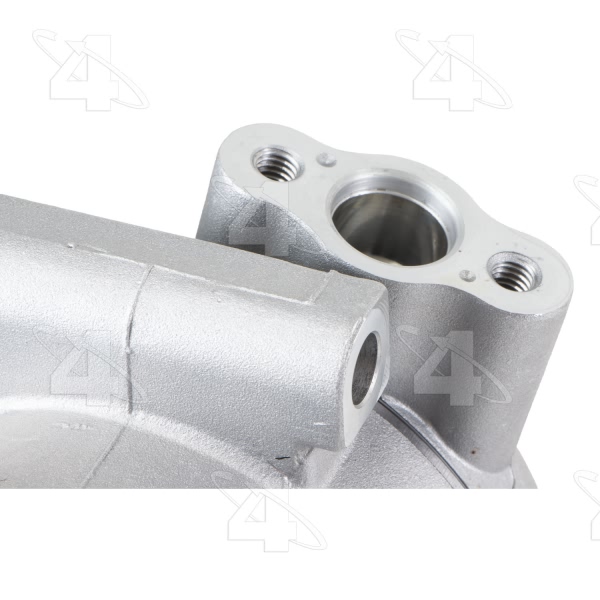

Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 1.750 |
Mount Distance MM | 44.450 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24612] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 133.350 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 5.250 |
Pulley Outside Diameter | 5.250 |
Pulley Ridge Diameter | 5.250 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |
Switch Included | Heat Sensor |

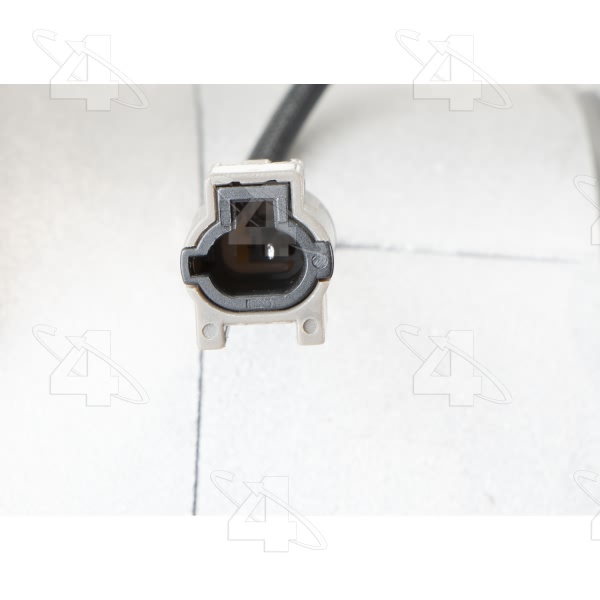

Terminal Type | Pin |
UPC | 096361584518 |
Year Make Model | Trim | Engine |
---|---|---|
1993 Nissan NX | All Trims | 4 Cyl 1.6L |
1993-1994 Nissan Sentra | All Trims | 4 Cyl 1.6L |
1993-1994 Nissan Tsuru | All Trims | 4 Cyl 1.6L |
