Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58444 |

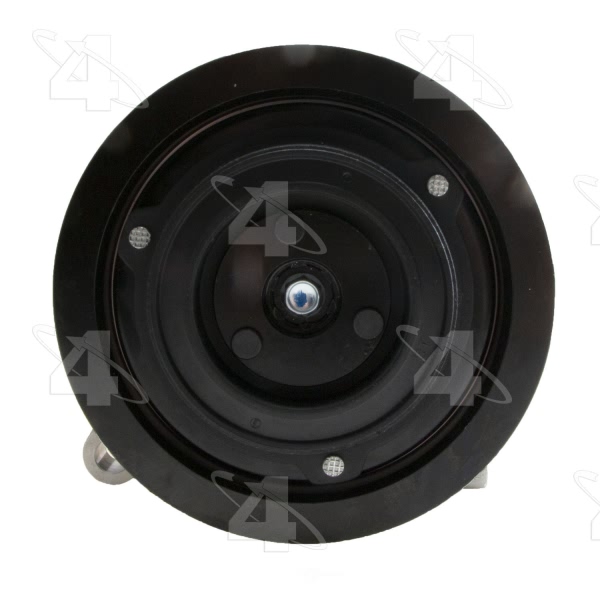

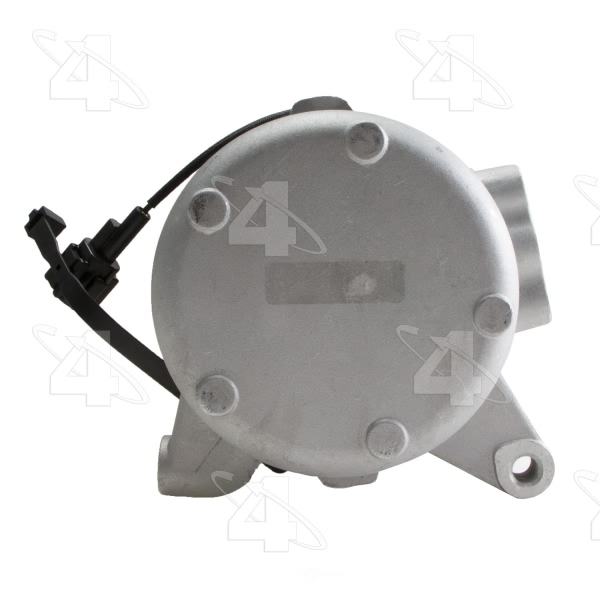

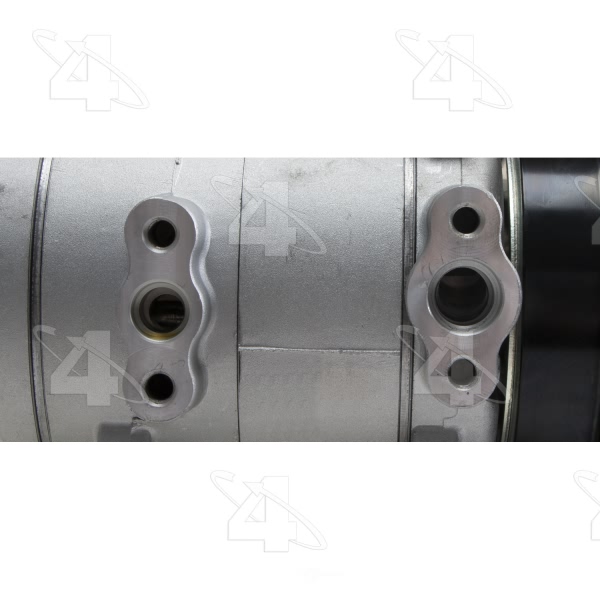

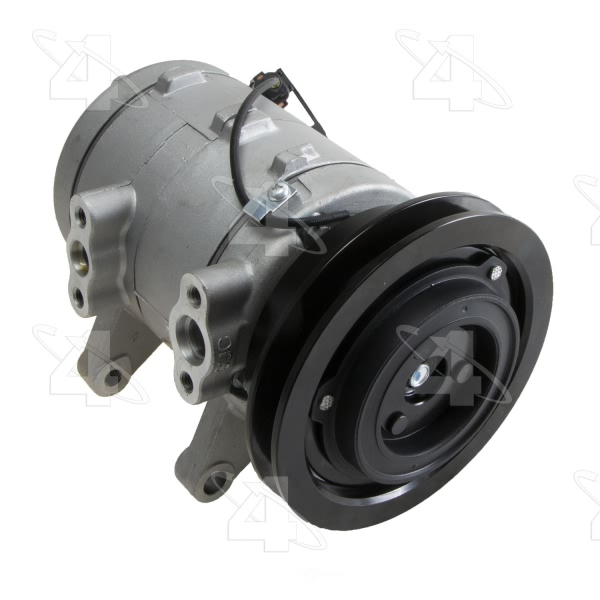

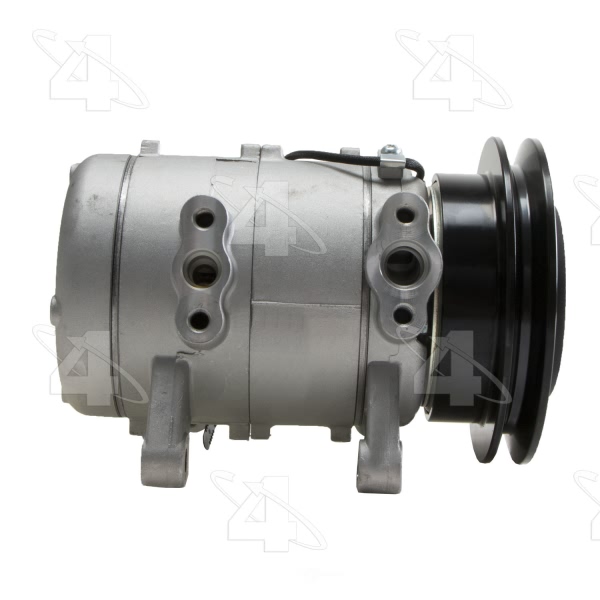

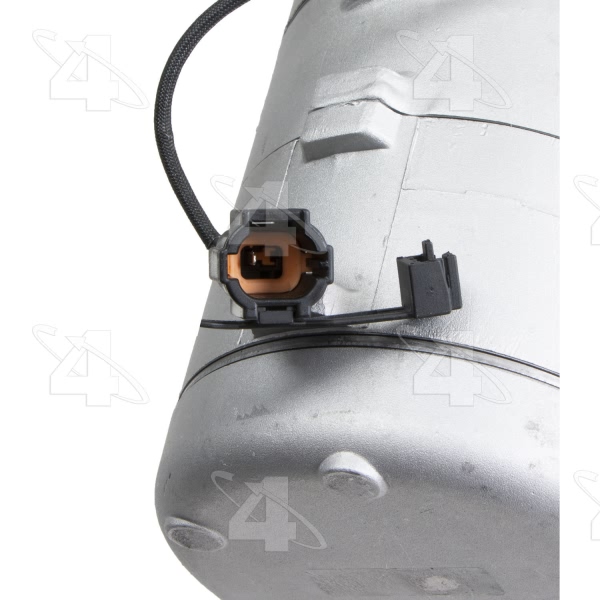

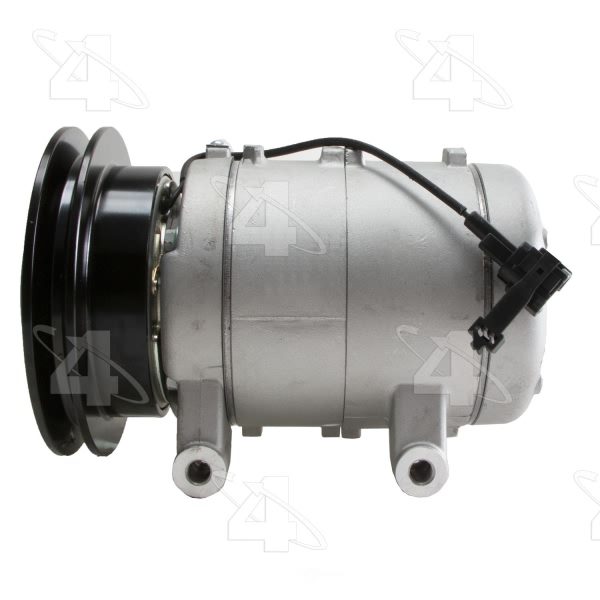

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.500 |
Belt Width MM | 12.700 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.250 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | NVR140S |
Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 1.796875 |
Mount Distance MM | 45.720 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 133.350 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.250 |
Pulley Outside Diameter | 5.250 |
Pulley Ridge Diameter | 5.250 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |
Switch Included | Heat Sensor |
Terminal Type | Spade |
UPC | 096361584440 |
Year Make Model | Trim | Engine |
---|---|---|
1985-1986 Nissan 720 | All Trims | All Engines |
1986-1994 Nissan D21 | All Trims | 4 Cyl 2.4L |
1994 Nissan Pickup | All Trims | All Engines |
1995 Nissan Pickup | All Trims | 4 Cyl 2.4L |
1996-1997 Nissan Pickup | All Trims | All Engines |
