Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58440 |

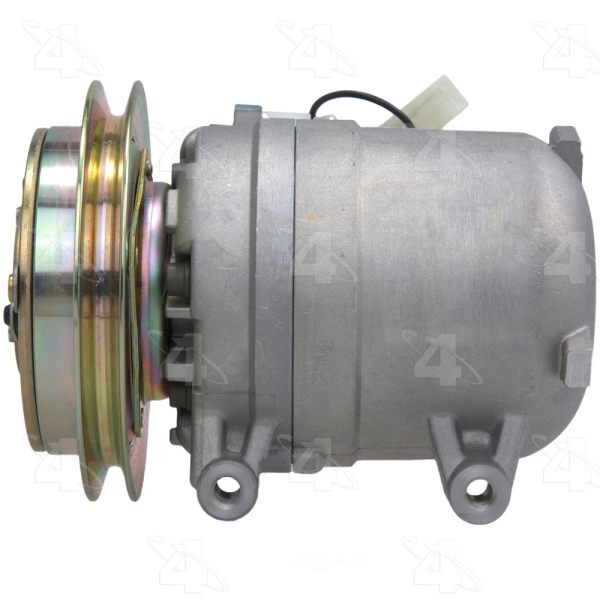

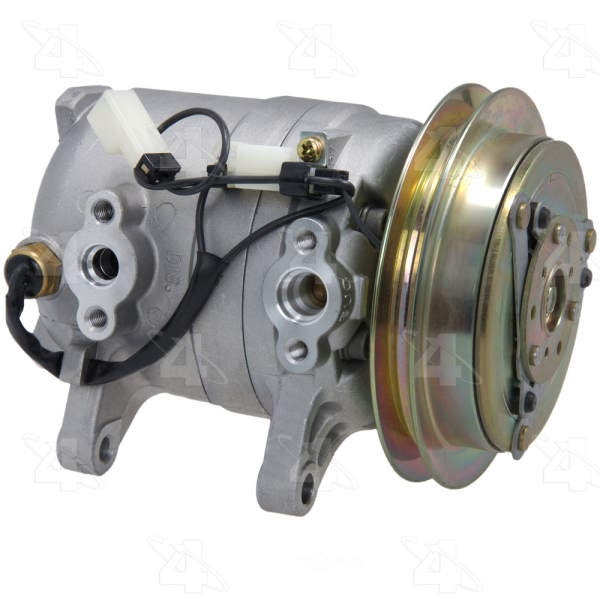

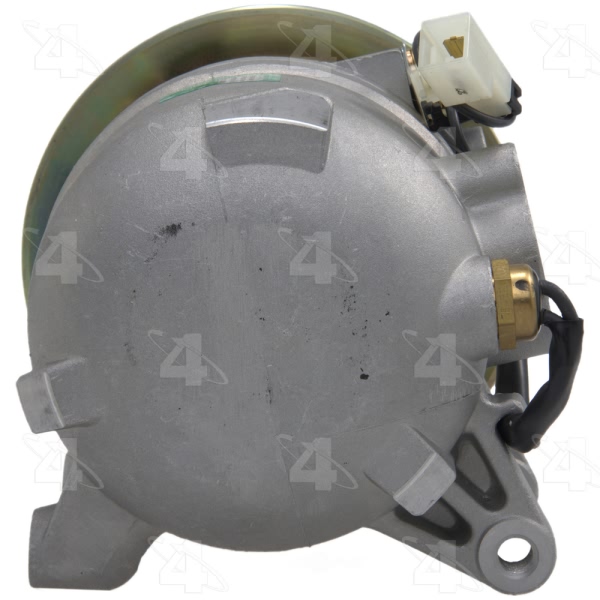

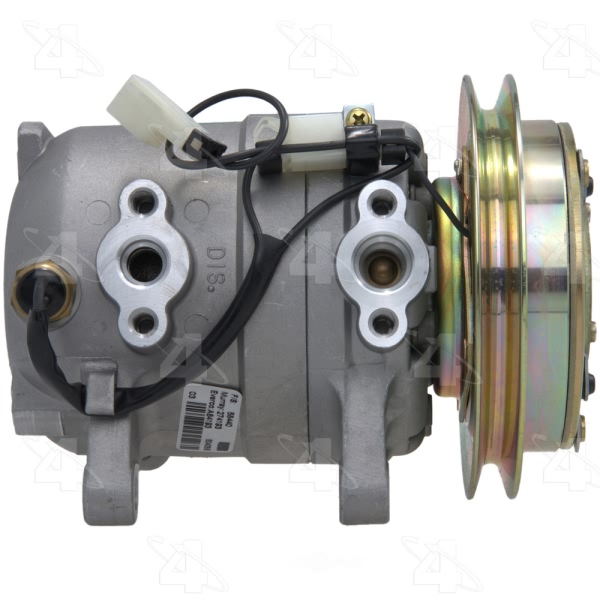

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.500 |
Belt Width MM | 12.700 |

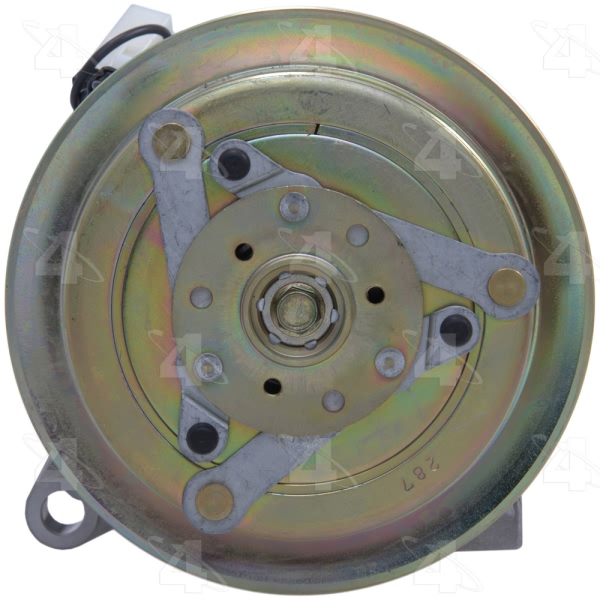

Clutch Included | Yes |
Clutch Maximum Diameter | 5.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | NVR140S |

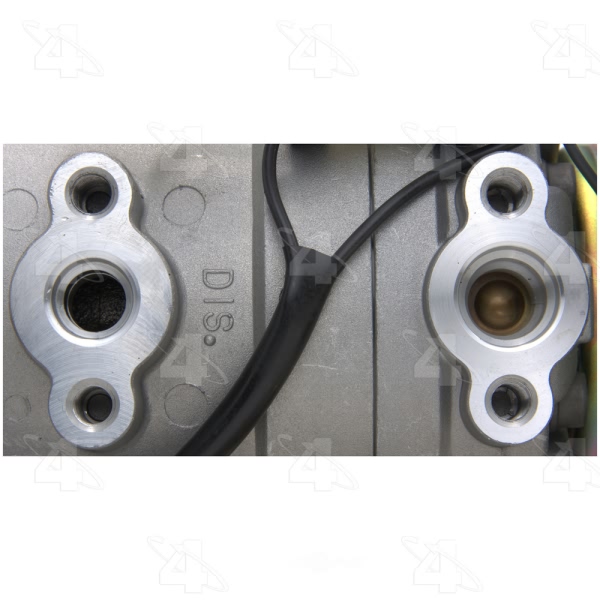

Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 1.40625 |
Mount Distance MM | 35.560 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 146.050 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.750 |
Pulley Outside Diameter | 5.750 |
Pulley Ridge Diameter | 5.750 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |
Switch Included | Heat Sensor |

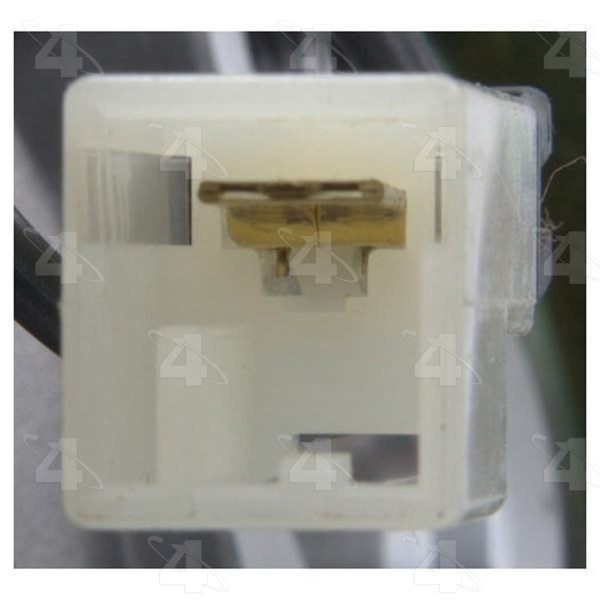

Terminal Type | Spade |
UPC | 096361584402 |
Year Make Model | Trim | Engine |
---|---|---|
1986-1994 Nissan D21 | All Trims | 6 Cyl 3.0L |
1987-1995 Nissan Pathfinder | All Trims | All Engines |
1995 Nissan Pickup | All Trims | 6 Cyl 3.0L |
