Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58410 |

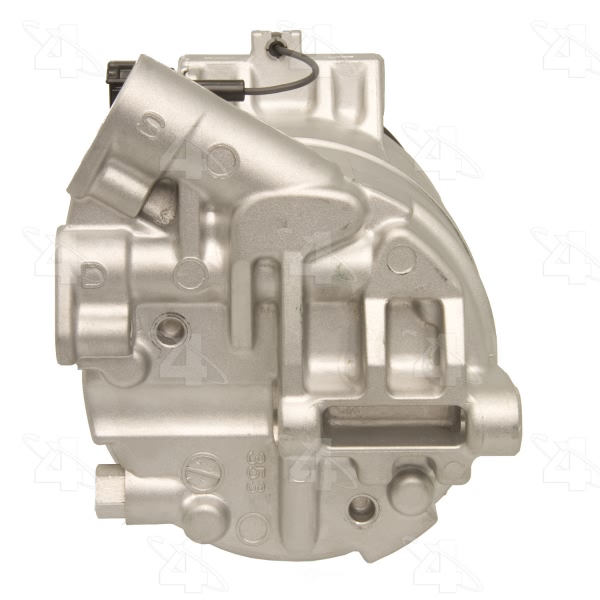

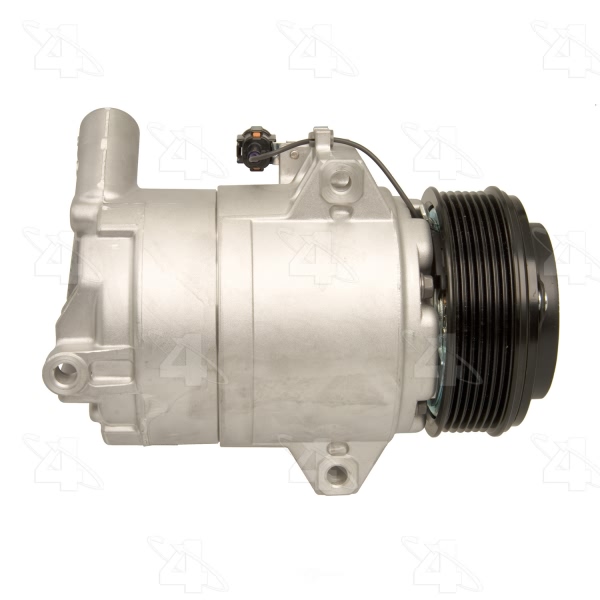

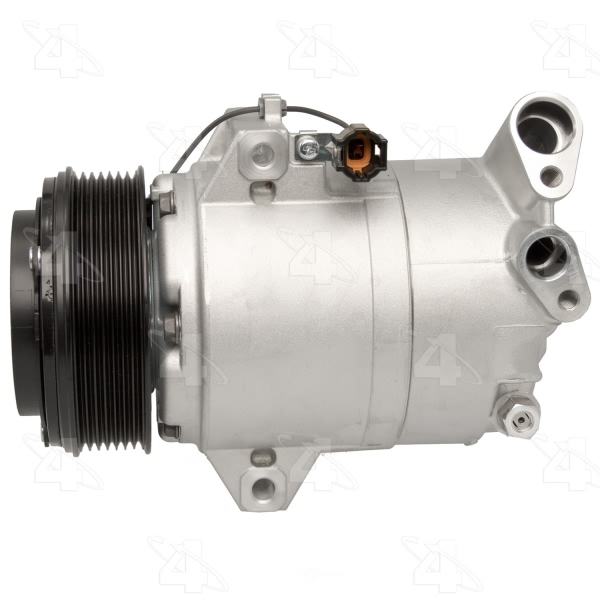

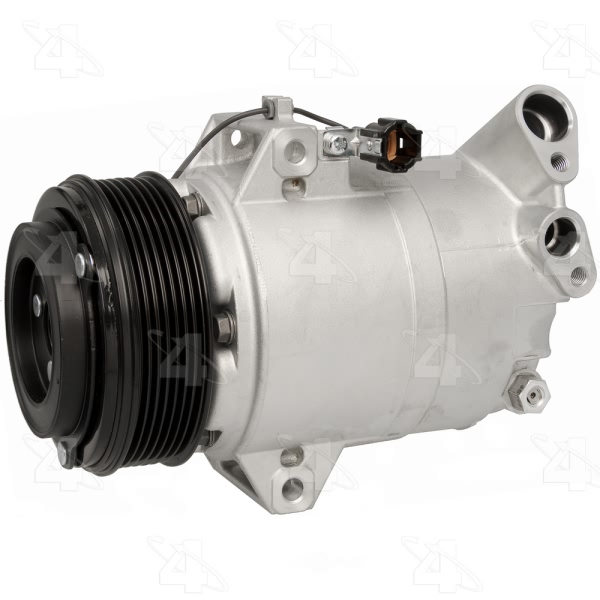

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |

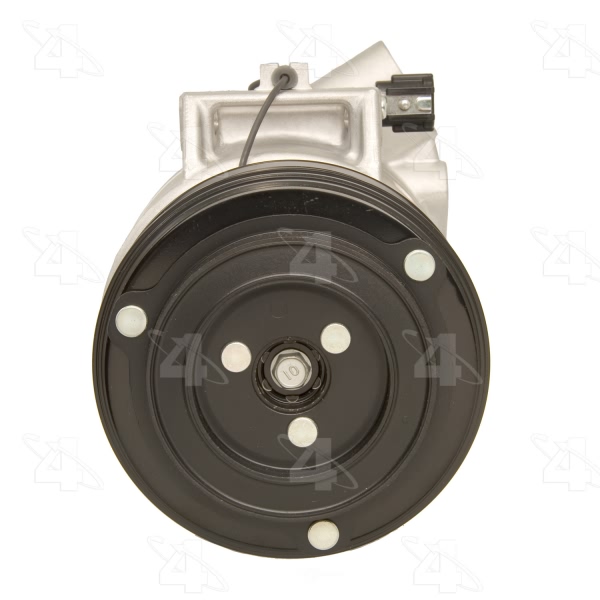

Clutch Maximum Diameter | 4.500 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | DKS17D |

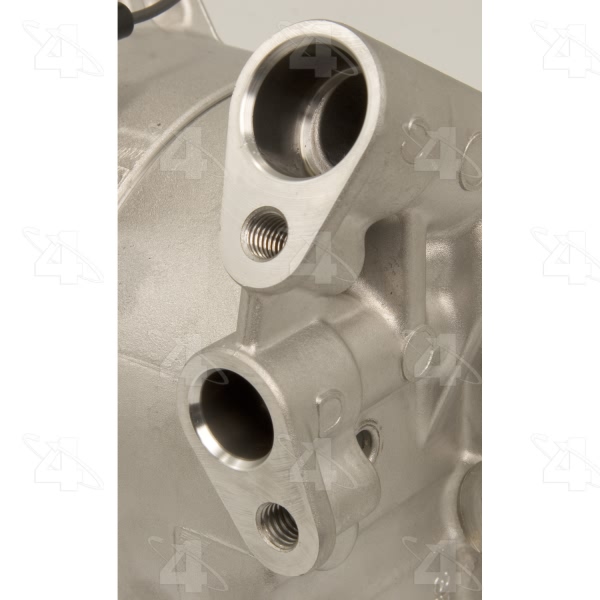

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.500 |
Mount Distance MM | 38.100 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24602] / Green Round O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24659] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 114.300 |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 4.500 |
Pulley Outside Diameter | 4.500 |
Pulley Ridge Diameter | 4.500 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

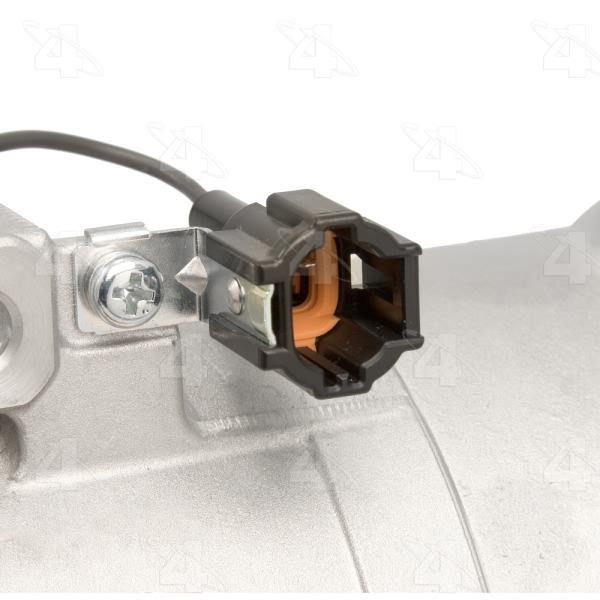

Terminal Type | Pin |
UPC | 096361584105 |
Year Make Model | Trim | Engine |
---|---|---|
2012-2018 Nissan NV1500 | All Trims | All Engines |
2012-2018 Nissan NV2500 | All Trims | 6 Cyl 4.0L |
2012-2017 Nissan NV3500 | All Trims | 6 Cyl 4.0L |
2018 Nissan NV3500 | S | 6 Cyl 4.0L |
2018 Nissan NV3500 | SV | 6 Cyl 4.0L |
2005-2007 Nissan Pathfinder | All Trims | All Engines |
2008-2012 Nissan Pathfinder | All Trims | 6 Cyl 4.0L |
