Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58387 |

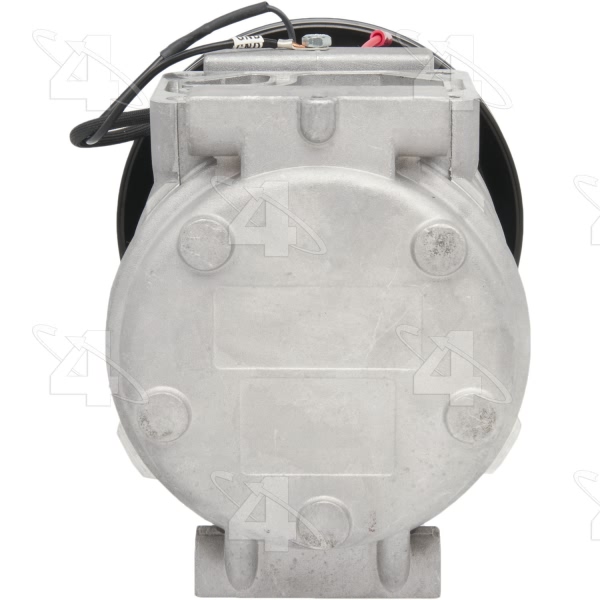

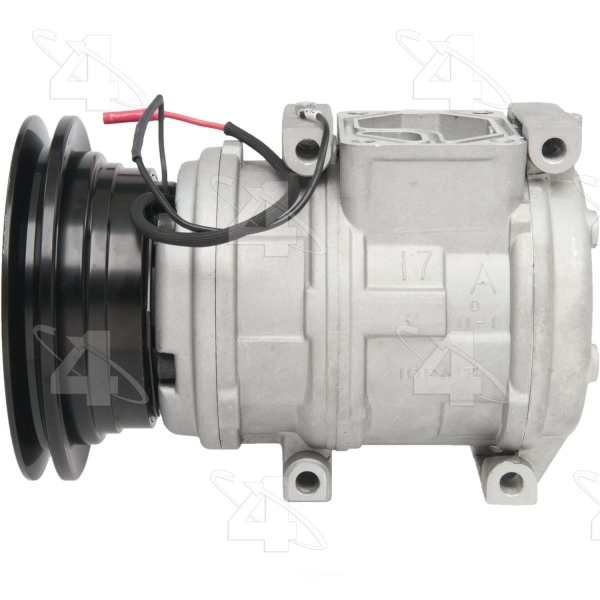

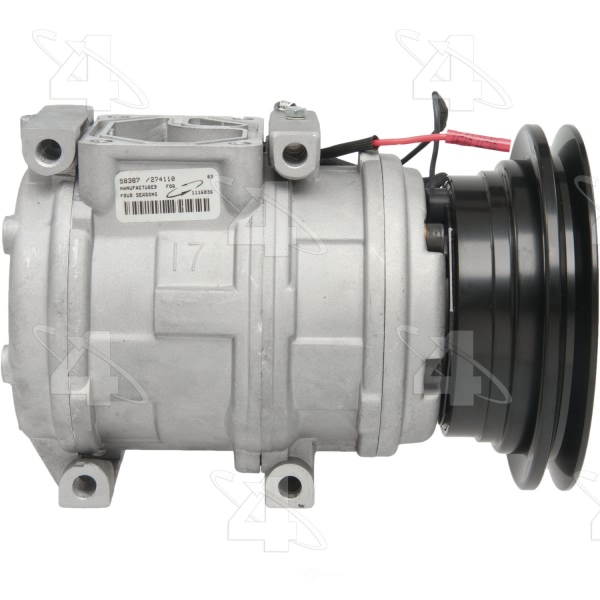

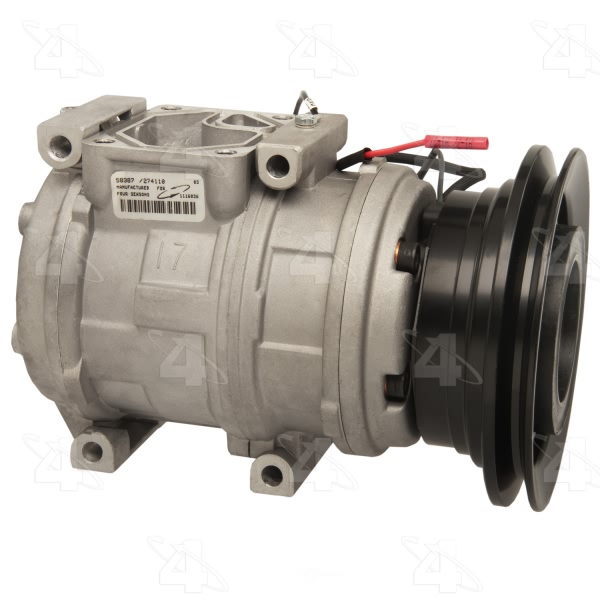

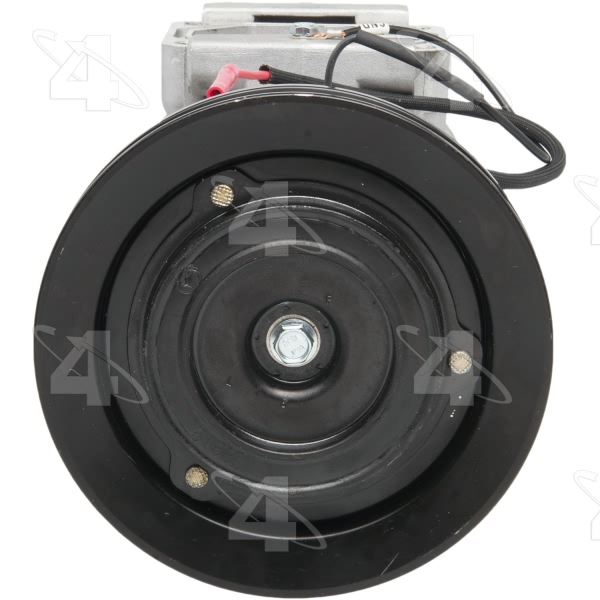

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.500 |
Belt Width MM | 12.700 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.625 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10PA17C |
Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 3.453125 |
Mount Distance MM | 87.630 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24156] / Compressor Manifold Port Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 142.748 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.625 |
Pulley Outside Diameter | 5.625 |
Pulley Ridge Diameter | 5.625 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |
Terminal Type | Spade |
UPC | 096361583870 |
Year Make Model | Trim | Engine |
---|---|---|
1993-1994 Eagle Talon | All Trims | 4 Cyl 1.8L |
1990-1994 Mitsubishi Eclipse | All Trims | 4 Cyl 1.8L |
1988 Mitsubishi Galant | All Trims | All Engines |
1989-1990 Mitsubishi Sigma | All Trims | All Engines |
1990-1994 Plymouth Laser | All Trims | 4 Cyl 1.8L |
1988-1990 Toyota 4Runner | All Trims | 6 Cyl 3.0L |
1991-1993 Toyota 4Runner | All Trims | All Engines |
1994 Toyota 4Runner | All Trims | 4 Cyl 2.4L |
1994-1995 Toyota 4Runner | All Trims | 6 Cyl 3.0L |
