Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58369 |

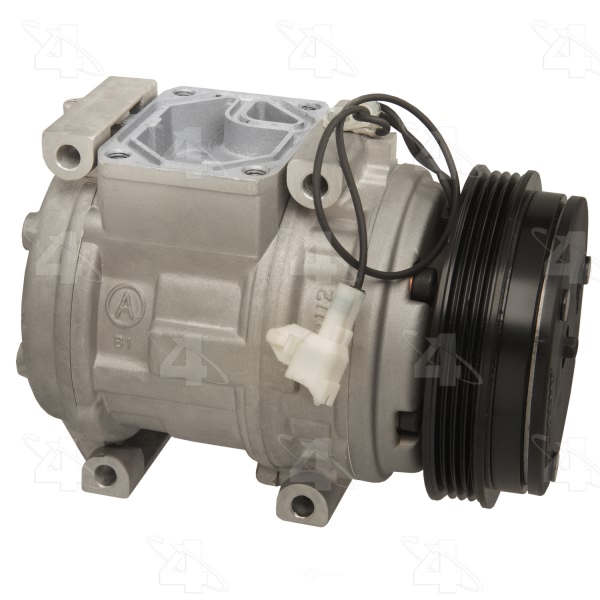

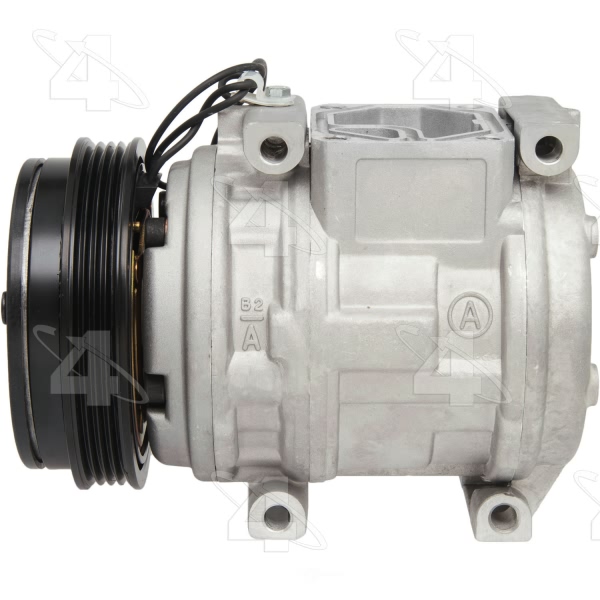

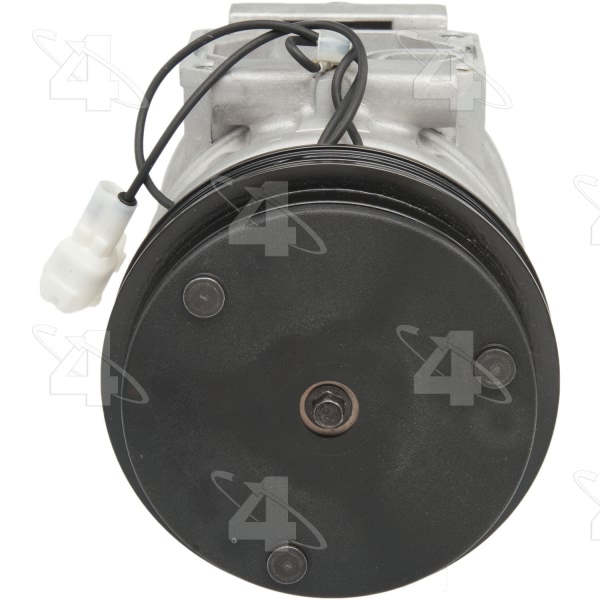

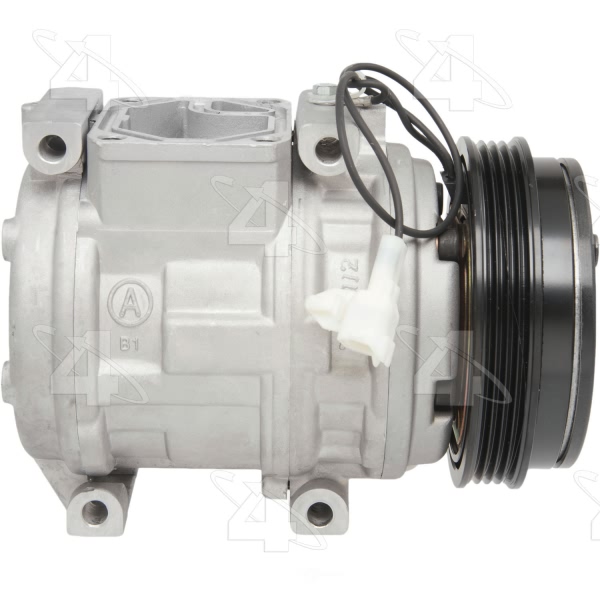

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10PA15C |
Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 1.609375 |
Mount Distance MM | 40.894 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24156] / Compressor Manifold Port Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 120.650 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 4.750 |
Pulley Outside Diameter | 4.750 |
Pulley Ridge Diameter | 4.750 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |
Terminal Type | Pin |
UPC | 096361583696 |
Year Make Model | Trim | Engine |
---|---|---|
1988 Toyota Corolla | DLX | 4 Cyl 1.6L |
1988 Toyota Corolla | DLX All Trac | 4 Cyl 1.6L |
1988 Toyota Corolla | FX | 4 Cyl 1.6L |
1988 Toyota Corolla | FX16 | 4 Cyl 1.6L |
1988 Toyota Corolla | FX16 GTS | 4 Cyl 1.6L |
1988 Toyota Corolla | GTS | 4 Cyl 1.6L |
1988 Toyota Corolla | LE | 4 Cyl 1.6L |
1988 Toyota Corolla | SR5 | 4 Cyl 1.6L |
1988 Toyota Corolla | SR5 All Trac | 4 Cyl 1.6L |
1989 Toyota Corolla | All Trims | All Engines |
