Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58356 |

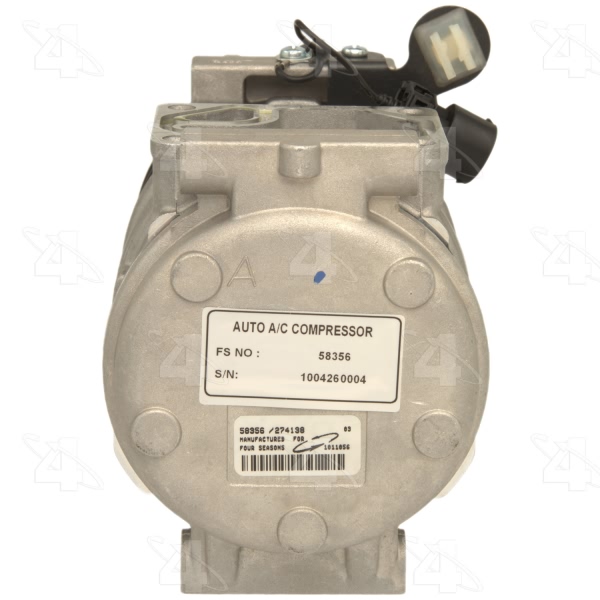

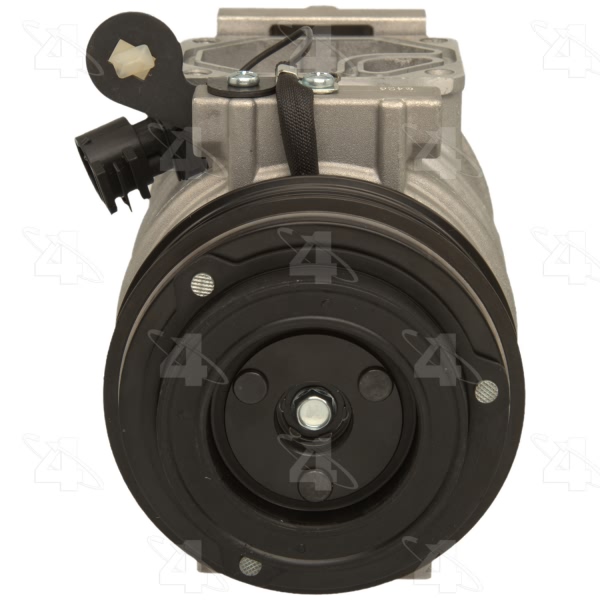

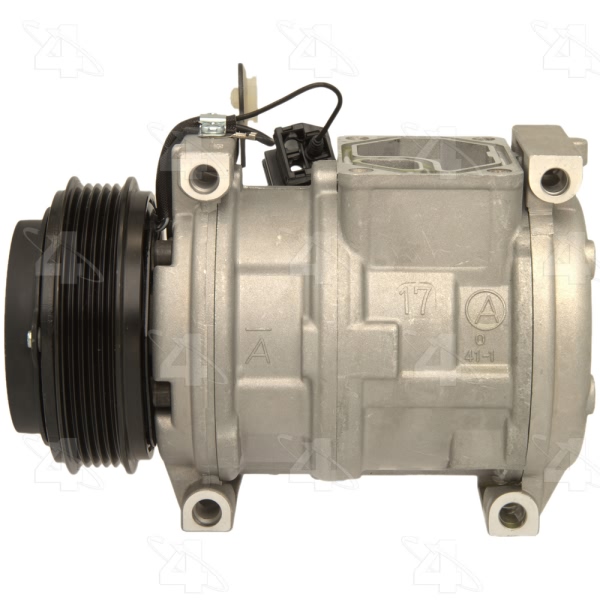

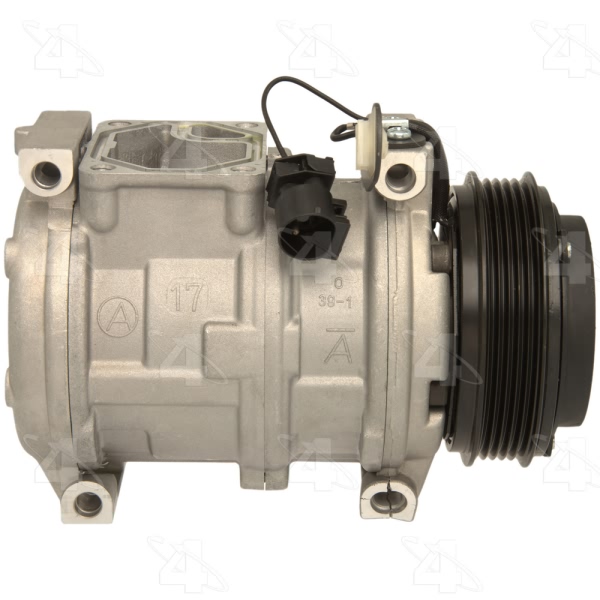

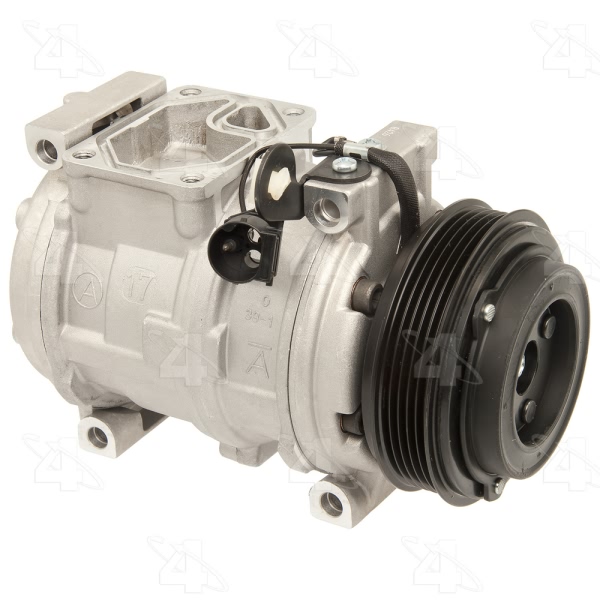

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.250 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10PA17C |
Distance From Clutch To Mounting Flange | 0.953125 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24156] / Compressor Manifold Port Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 4.250 |
Pulley Outside Diameter | 4.250 |
Pulley Ridge Diameter | 4.250 |
Refrigerant Type | R134a |
Suc Prt Typ Note | May Require use of OE Manifold |

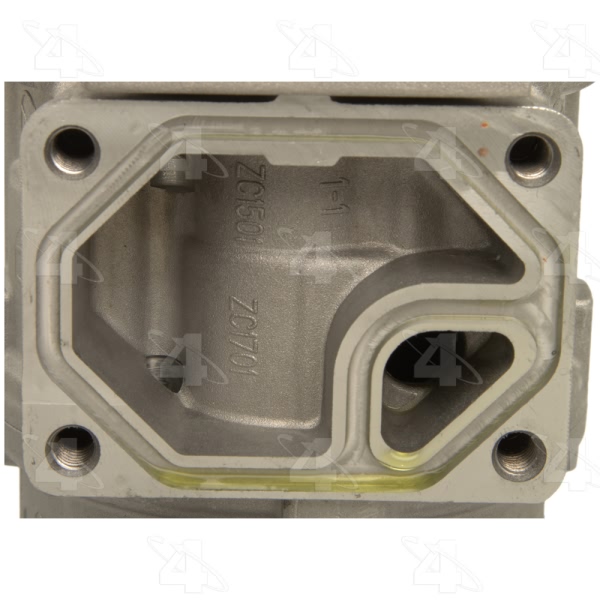

Suction Port Type | Pad Mount |

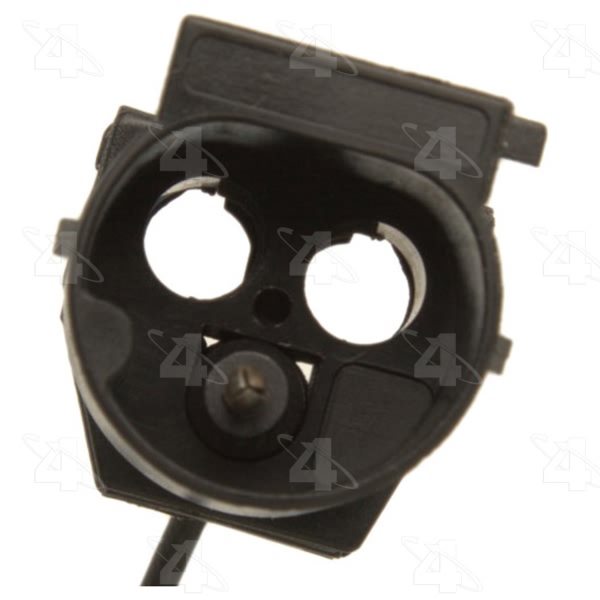

Terminal Type | Bullet |
UPC | 096361583566 |
w/ Diode | Yes |
Year Make Model | Trim | Engine |
---|---|---|
1998-1999 BMW 323i | All Trims | All Engines |
1998-1999 BMW 323is | All Trims | All Engines |
1999 BMW 323ti | All Trims | All Engines |
1988 BMW 325 | All Trims | All Engines |
1988-1995 BMW 325i | All Trims | All Engines |
1988-1991 BMW 325iX | All Trims | All Engines |
1988-1995 BMW 325is | All Trims | All Engines |
1996-1998 BMW 328i | All Trims | All Engines |
1996-1998 BMW 328is | All Trims | All Engines |
1991-1995 BMW 525i | All Trims | All Engines |
