Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58334 |

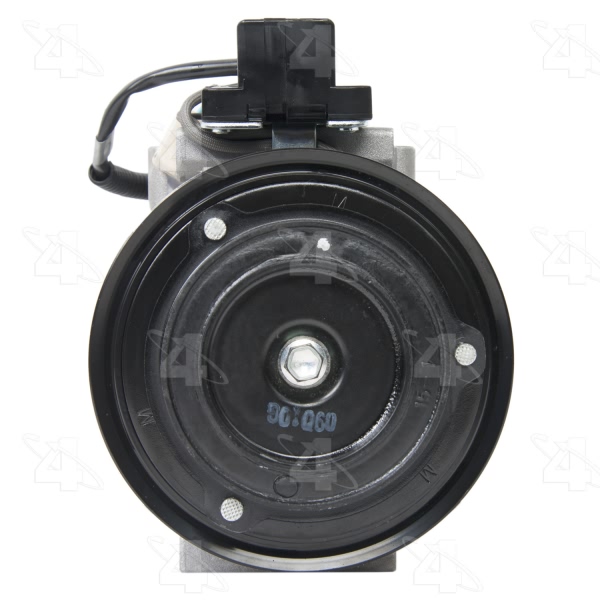

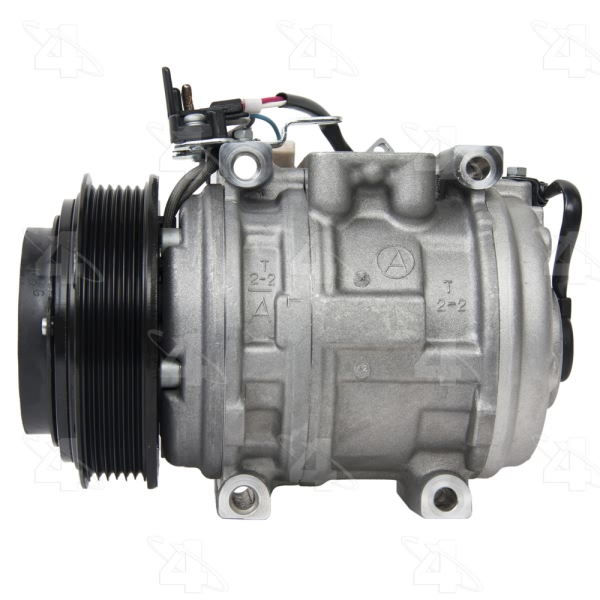

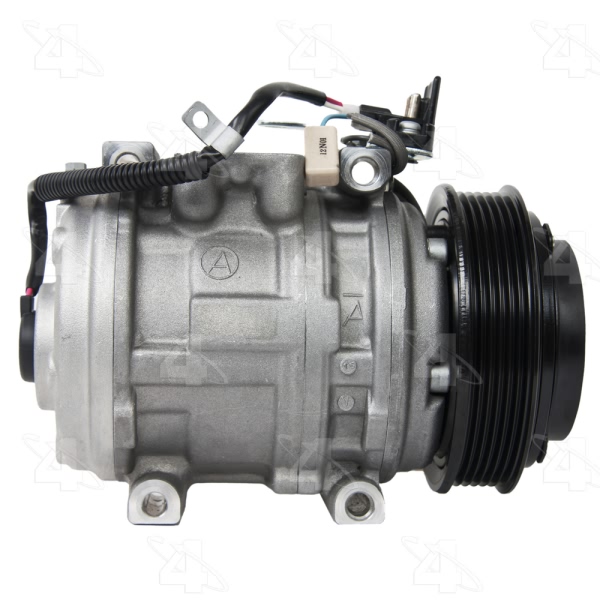

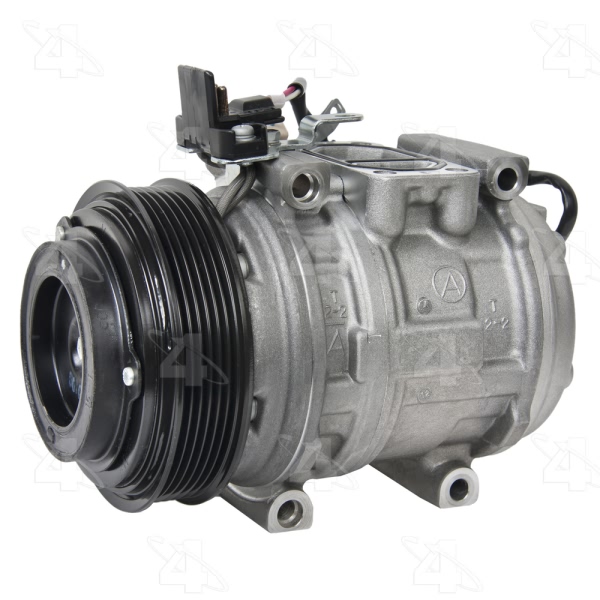

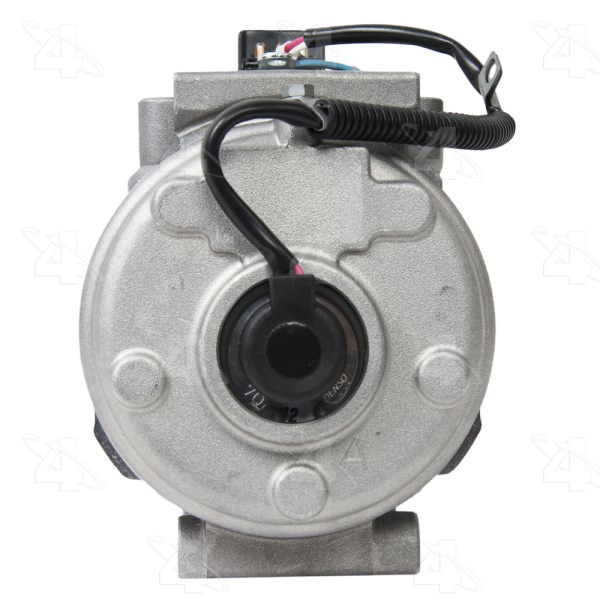

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Head Type | Small |
Compressor Type | 10PA15C |
Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 1.203125 |
Mount Distance MM | 30.000 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24156] / Compressor Manifold Port Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 120.650 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.750 |
Pulley Outside Diameter | 4.750 |
Pulley Ridge Diameter | 4.750 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |
Switch Included | Speed Sensor |

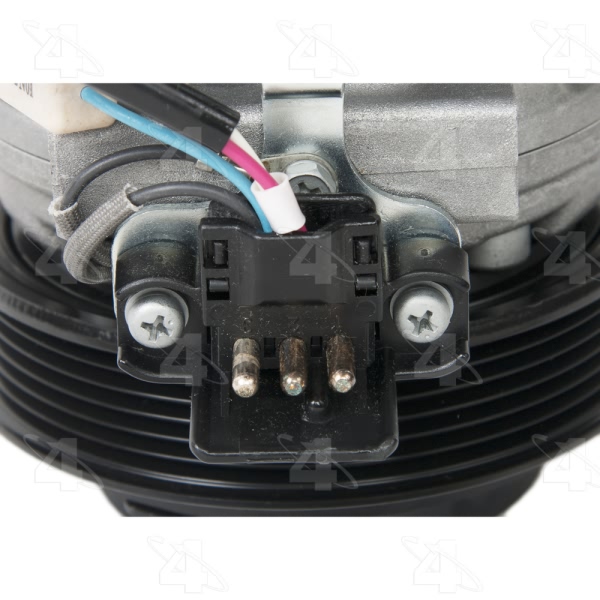

Terminal Type | Bullet |
UPC | 096361583344 |
Year Make Model | Trim | Engine |
---|---|---|
1986 Mercedes-Benz 190D | All Trims | 5 Cyl 2.5L |
1987 Mercedes-Benz 190D | All Trims | All Engines |
1988-1989 Mercedes-Benz 190D | All Trims | 5 Cyl 2.5L |
1985-1993 Mercedes-Benz 190E | All Trims | All Engines |
1987-1989 Mercedes-Benz 260E | All Trims | All Engines |
1988-1990 Mercedes-Benz 300CE | All Trims | All Engines |
1987 Mercedes-Benz 300D | All Trims | 6 Cyl 3.0L |
1990-1993 Mercedes-Benz 300D | All Trims | All Engines |
1986-1992 Mercedes-Benz 300E | All Trims | All Engines |
1987 Mercedes-Benz 300SDL | All Trims | 6 Cyl 3.0L |
