Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58332 |

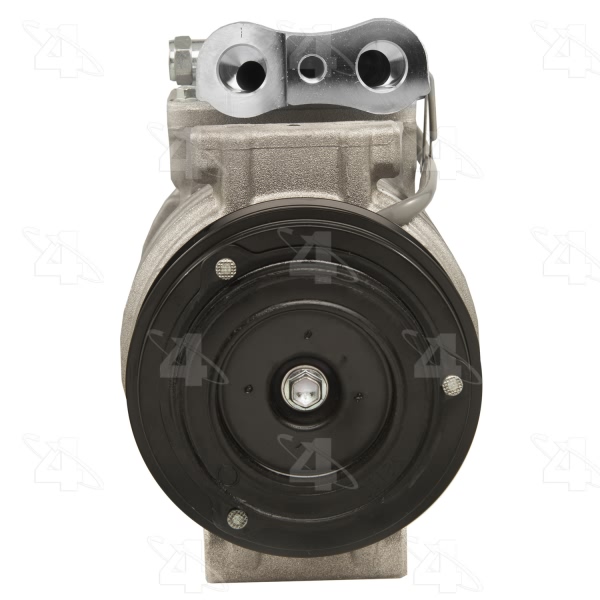

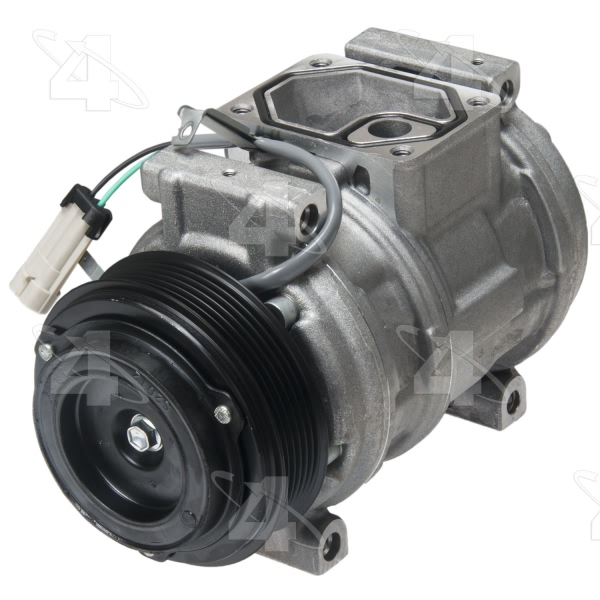

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.500 |

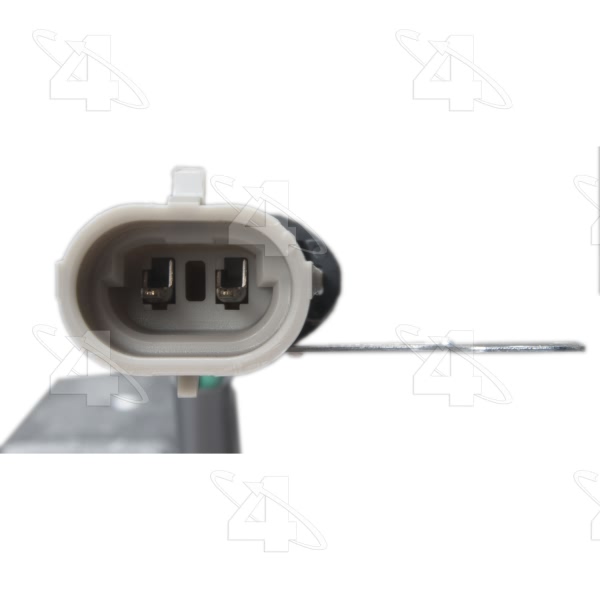

Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10PA20C |

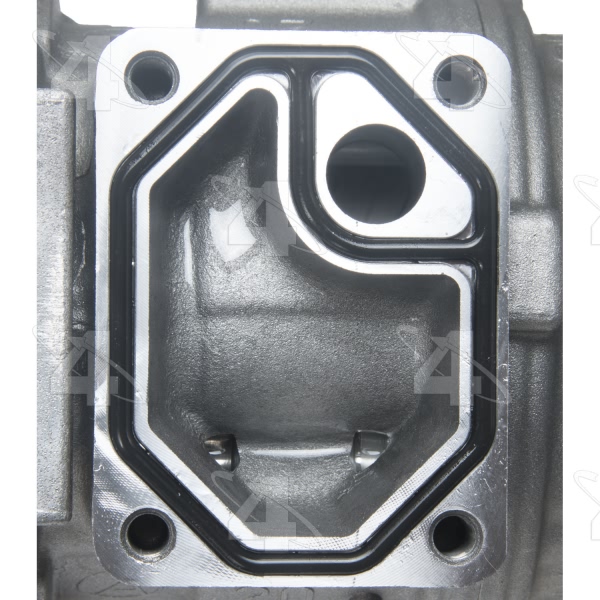

Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 0.828125 |
Mount Distance MM | 21.082 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24156] / Compressor Manifold Port Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 114.300 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.500 |
Pulley Outside Diameter | 4.500 |
Pulley Ridge Diameter | 4.500 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |
Switch Included | Speed Sensor |
Terminal Type | Pin |
UPC | 096361583320 |
Year Make Model | Trim | Engine |
---|---|---|
1988-1989 Chevrolet Corvette | All Trims | All Engines |
1990-1995 Chevrolet Corvette | Base | All Engines |
1991-1996 Chevrolet Corvette | All Trims | All Engines |
1993 Chevrolet Corvette | 40th Anniversary Edition | All Engines |
1995 Chevrolet Corvette | Indianapolis 500 Pace Car | All Engines |
