Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58281 |

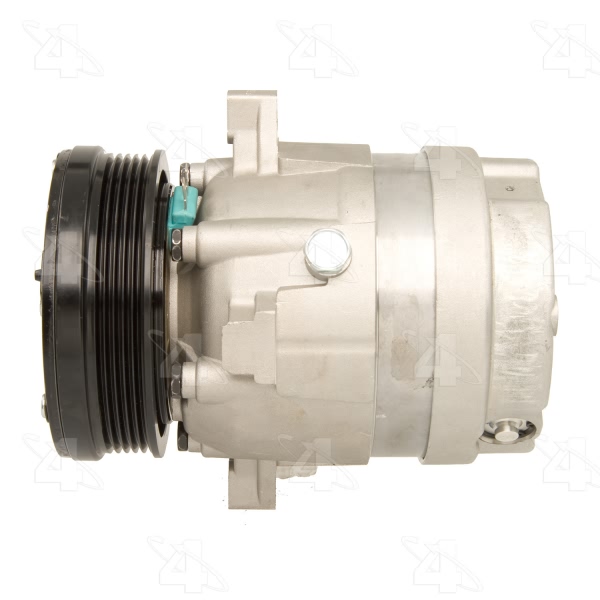

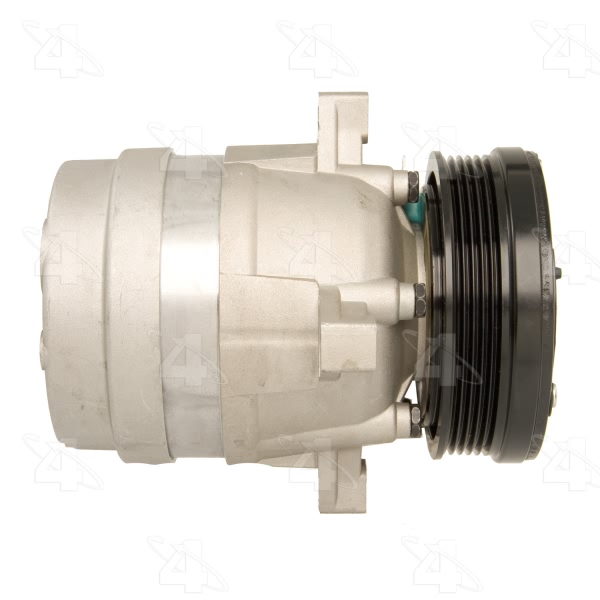

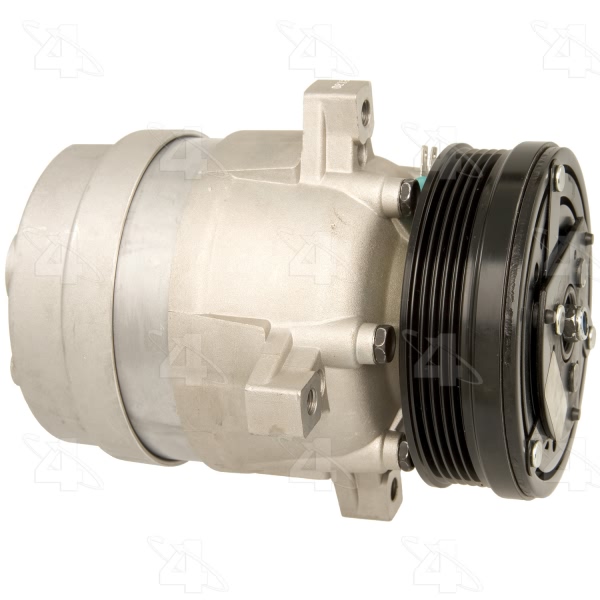

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |

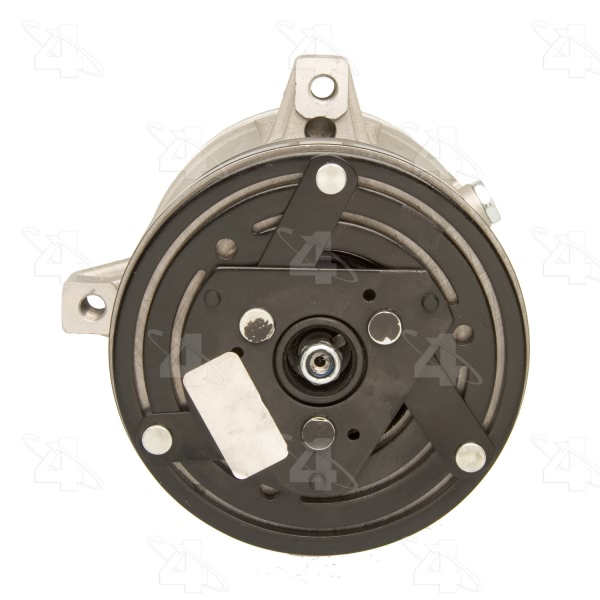

Clutch Maximum Diameter | 5.000 |
Coil Clock Position | 2 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | V5 |

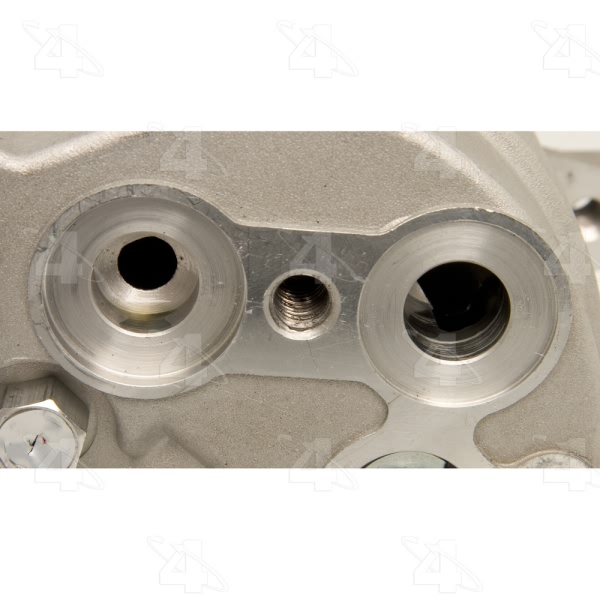

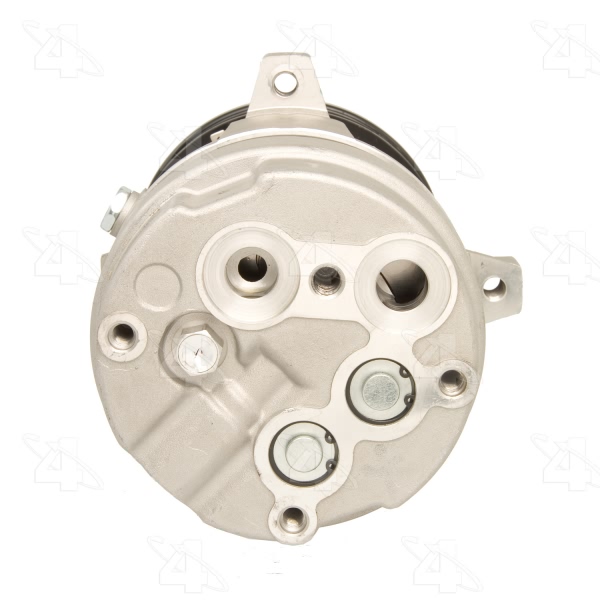

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.250 |
Mount Distance MM | 31.750 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 127.000 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 5.000 |
Pulley Outside Diameter | 5.000 |
Pulley Ridge Diameter | 5.000 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |

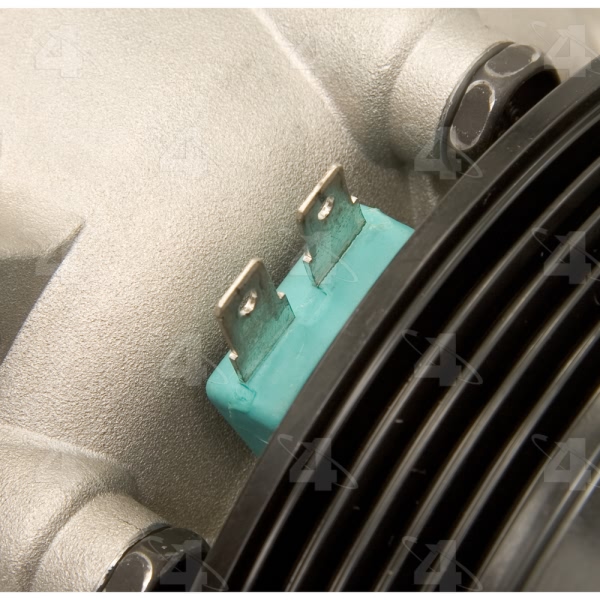

Terminal Type | Spade |
UPC | 096361582811 |
Year Make Model | Trim | Engine |
---|---|---|
1988-1991 Buick Skylark | All Trims | 4 Cyl 2.3L |
1987 Oldsmobile Calais | All Trims | 4 Cyl 2.3L |
1988-1991 Oldsmobile Cutlass Calais | All Trims | 4 Cyl 2.3L |
1988-1991 Pontiac Grand Am | All Trims | 4 Cyl 2.3L |
