Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58279 |

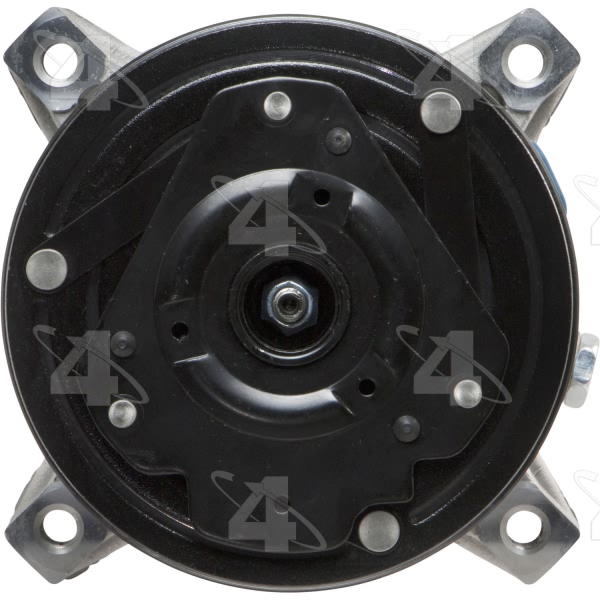

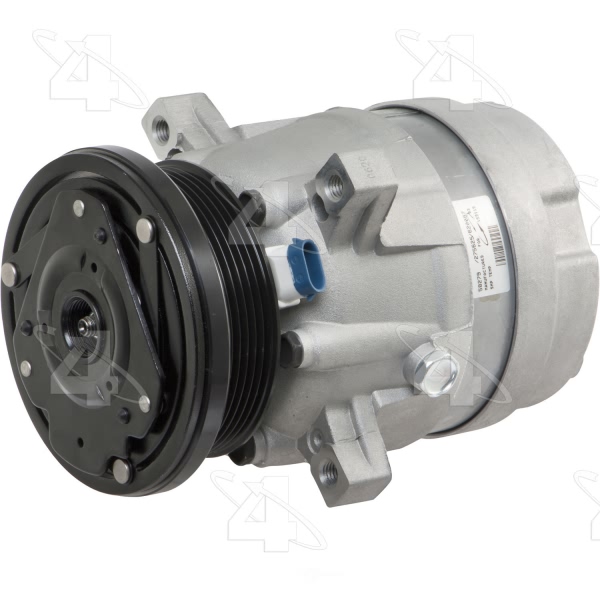

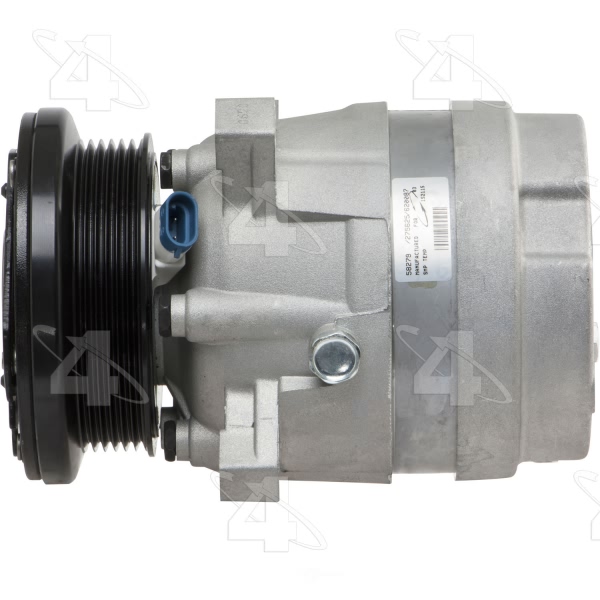

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.000 |
Coil Clock Position | 2 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | V5 |
Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.15625 |
Mount Distance MM | 29.210 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24356] / Red Sealing Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24357] / Green Sealing Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 127.000 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.000 |
Pulley Outside Diameter | 5.000 |
Pulley Ridge Diameter | 5.000 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Switch Included | High Pressure |
Terminal Type | 7mm Pin Connector or Pin |
UPC | 096361582798 |
Year Make Model | Trim | Engine |
---|---|---|
1988 Buick Regal | All Trims | 6 Cyl 2.8L |
1988 Oldsmobile Cutlass | All Trims | 6 Cyl 2.8L |
1988 Oldsmobile Cutlass Supreme | All Trims | 6 Cyl 2.8L |
1988 Pontiac Grand Prix | All Trims | All Engines |
