Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58274 |

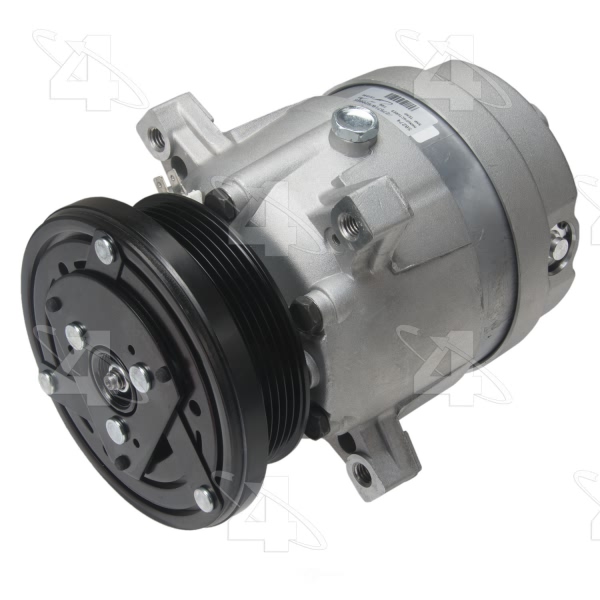

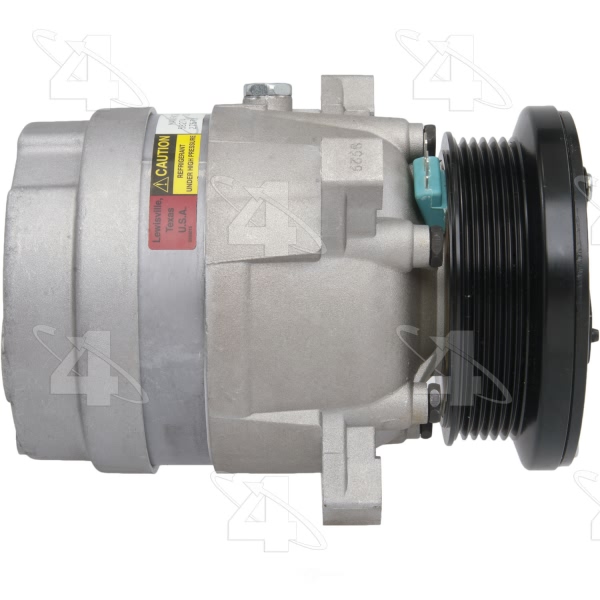

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.250 |
Coil Clock Position | 2 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | V5 |
Discharge Port Type | O-Ring / Sealing Washer |
Distance From Clutch To Mounting Flange | 1.15625 |
Mount Distance MM | 29.210 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter B IN Secondary | 4.213 |
Pulley Diameter B MM Secondary | 107.010 |
Pulley Diameter MM | 107.950 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.250 |
Pulley Outside Diameter | 4.250 |
Pulley Ridge Diameter | 4.250 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring / Sealing Washer |
Switch Included | High Pressure |

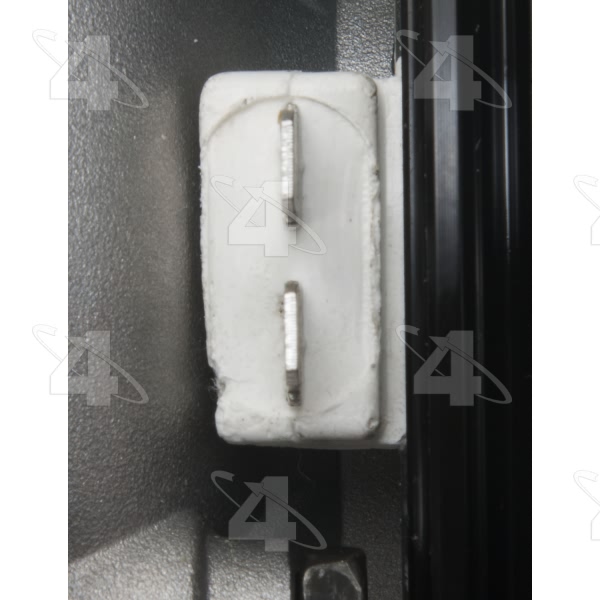

Terminal Type | Spade |
UPC | 096361582743 |
Year Make Model | Trim | Engine |
---|---|---|
1987-1988 Buick Century | All Trims | 4 Cyl 2.5L |
1987-1988 Chevrolet Celebrity | All Trims | 4 Cyl 2.5L |
1987-1988 Oldsmobile Cutlass Ciera | All Trims | 4 Cyl 2.5L |
1987-1988 Oldsmobile Cutlass Cruiser | All Trims | 4 Cyl 2.5L |
1987-1988 Oldsmobile Cutlass Cruiser | All Trims | 6 Cyl 2.8L |
1987-1988 Pontiac 6000 | All Trims | 4 Cyl 2.5L |
1987-1988 Pontiac Fiero | All Trims | 4 Cyl 2.5L |
