Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58271 |

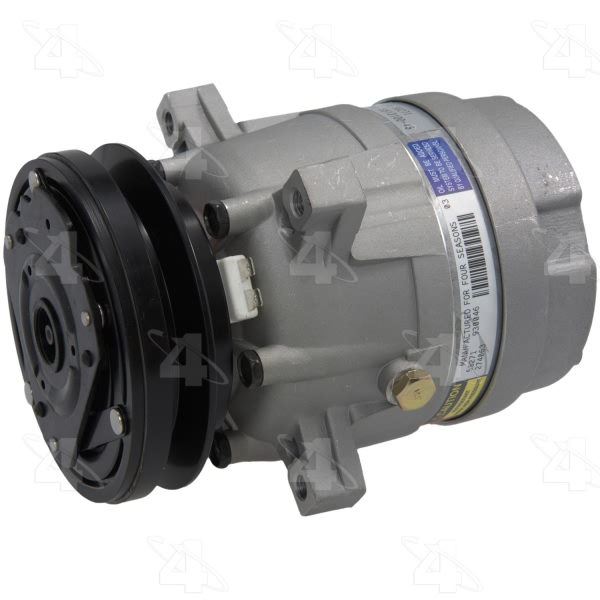

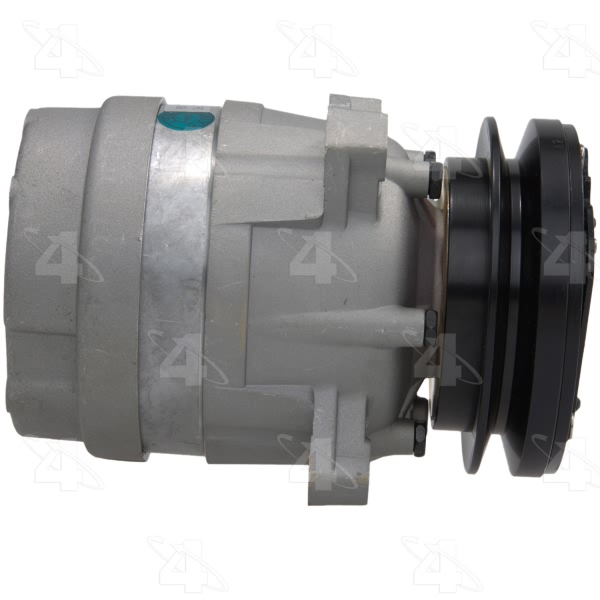

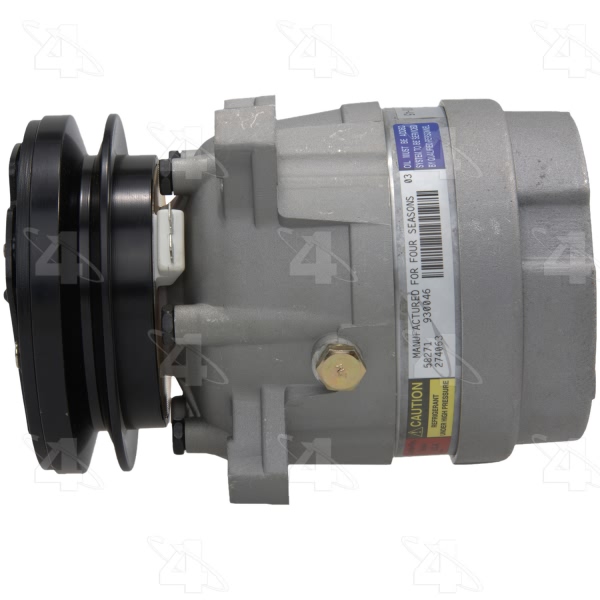

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.500 |
Belt Width MM | 12.700 |
Clutch Included | Yes |

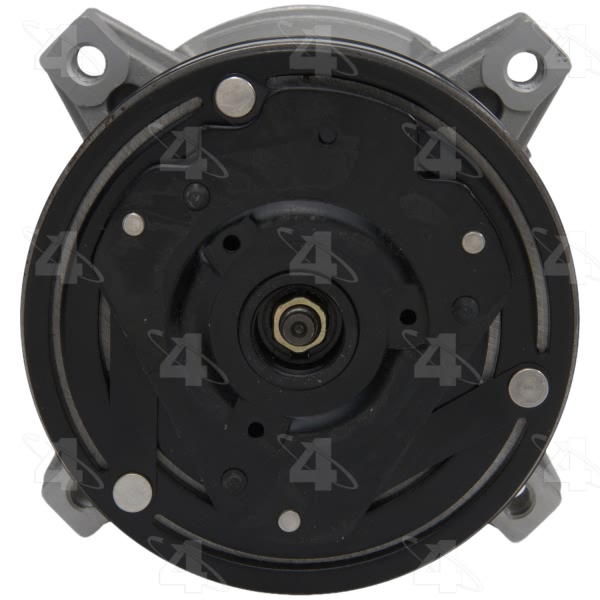

Clutch Maximum Diameter | 5.125 |
Coil Clock Position | 2 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | V5 |

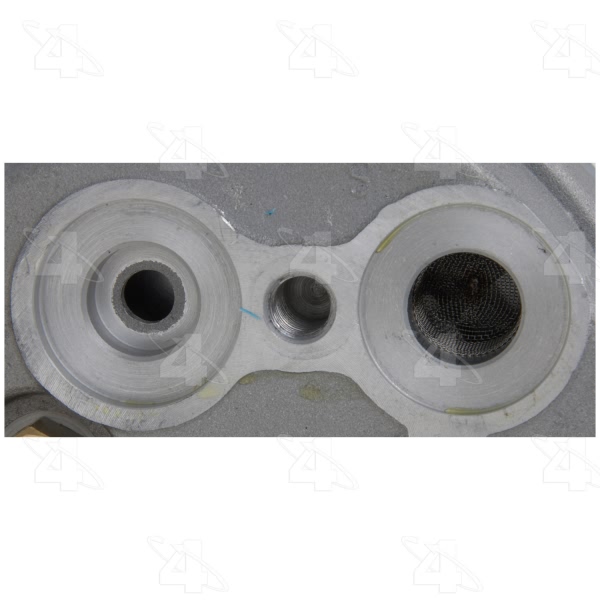

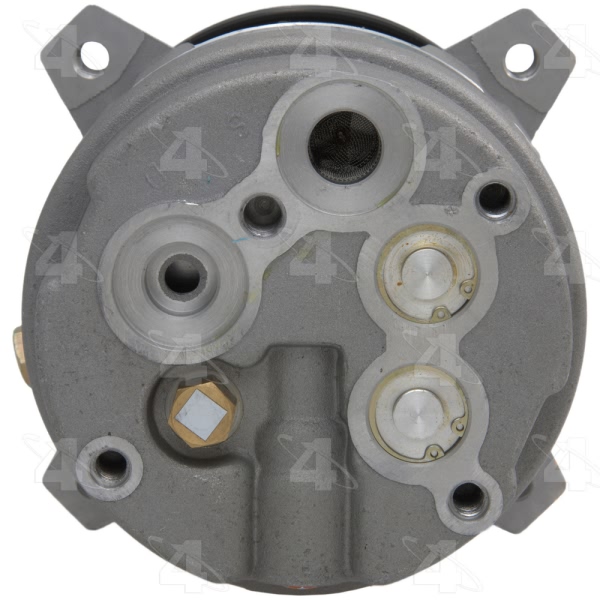

Discharge Port Type | O-Ring / Sealing Washer |
Distance From Clutch To Mounting Flange | 1.796875 |
Mount Distance MM | 45.720 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Printed Foot Note | This compressor is equipped with an R12 Control Valve. If retrofitting to R134a, Control Valve [38846] is recommended for optimum system performance. |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 130.048 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.125 |
Pulley Outside Diameter | 5.125 |
Pulley Ridge Diameter | 5.125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring / Sealing Washer |
Switch Included | High Pressure |

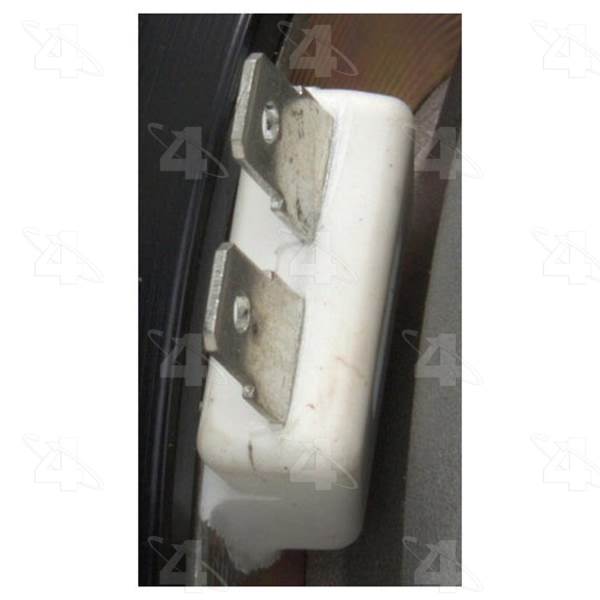

Terminal Type | Spade |
UPC | 096361582712 |
Year Make Model | Trim | Engine |
---|---|---|
1986 Buick Century | All Trims | 4 Cyl 2.5L |
1985-1987 Buick Skyhawk | All Trims | 4 Cyl 2.0L |
1986 Buick Skyhawk | All Trims | 4 Cyl 1.8L |
1988 Buick Skyhawk | All Trims | All Engines |
1986 Buick Skylark | All Trims | 6 Cyl 3.0L |
1986-1991 Buick Skylark | All Trims | 4 Cyl 2.5L |
1986-1987 Buick Somerset | All Trims | 4 Cyl 2.5L |
1985 Buick Somerset Regal | All Trims | 4 Cyl 2.5L |
1985-1986 Cadillac Cimarron | All Trims | 4 Cyl 2.0L |
1985-1986 Chevrolet Cavalier | All Trims | 4 Cyl 2.0L |
