Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58270 |

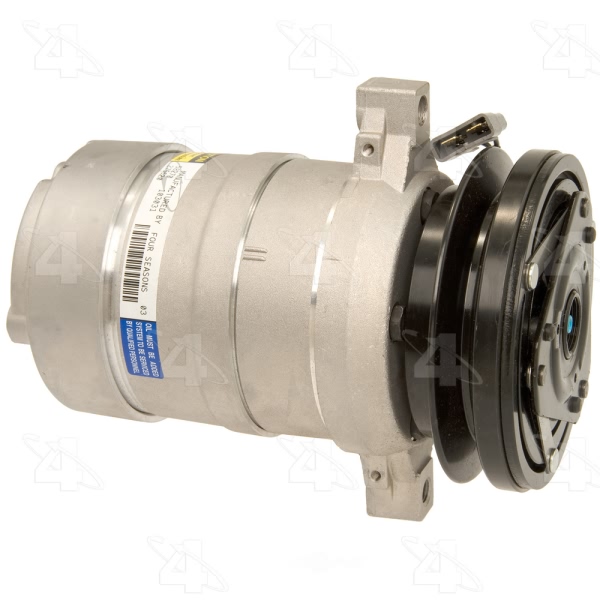

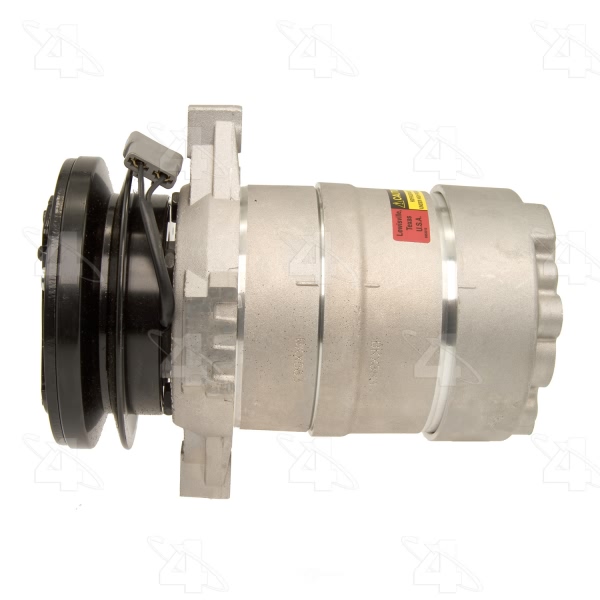

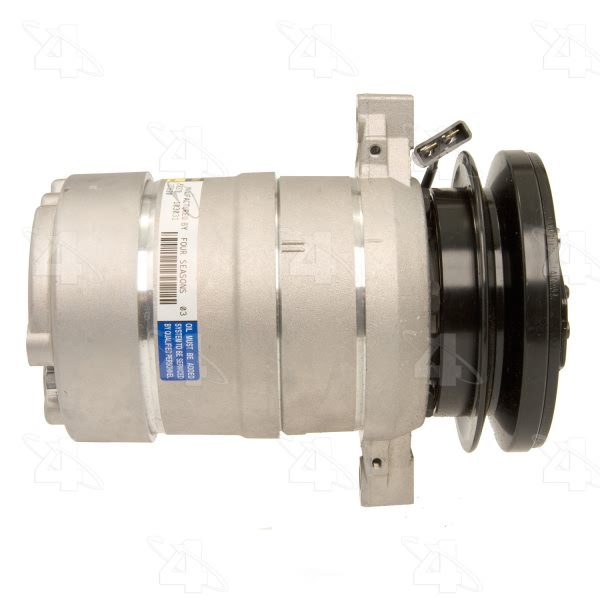

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.500 |
Belt Width MM | 12.700 |
Clutch Included | Yes |

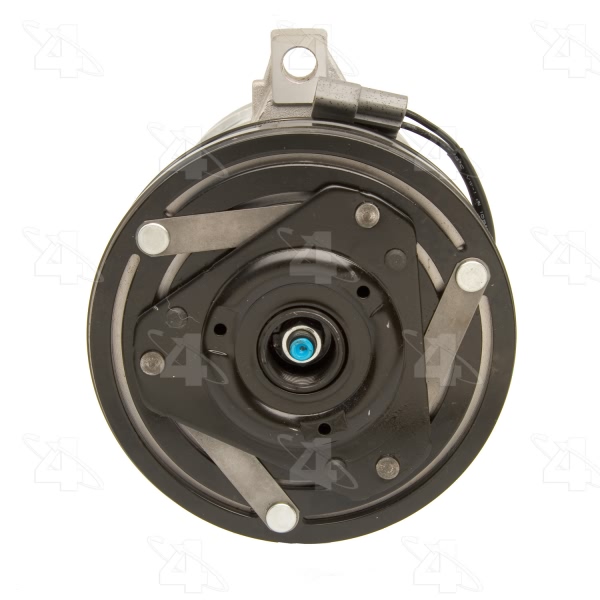

Clutch Maximum Diameter | 5.125 |
Coil Clock Position | 2 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | HR6 |

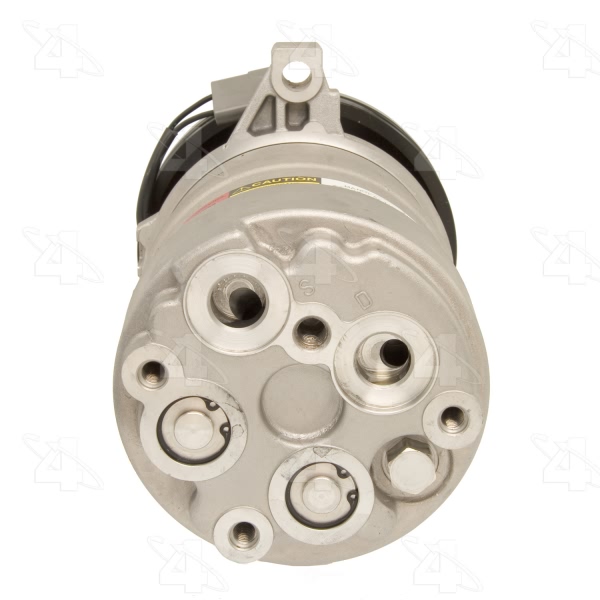

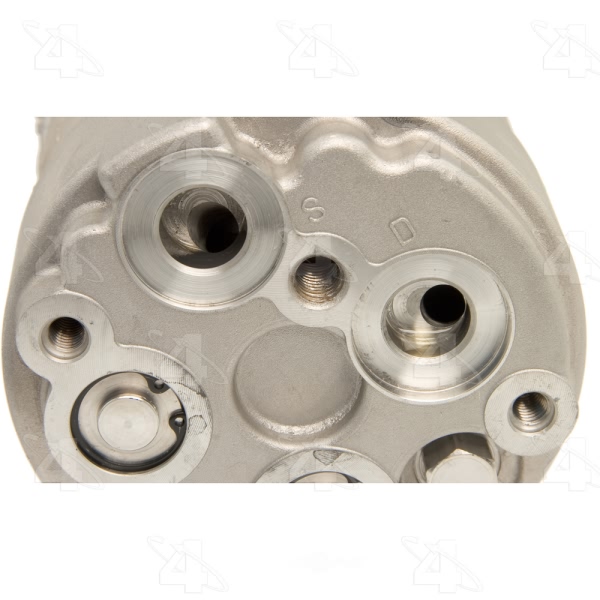

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.250 |
Mount Distance MM | 31.750 |
Mounting Hardware | Not Included |
Mounting Type | Type V Metric Threads |
New or Reman | New |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Printed Foot Note | 2 Ear (No Middle Ear) 1 Threaded Ear |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 130.048 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.125 |
Pulley Outside Diameter | 5.125 |
Pulley Ridge Diameter | 5.125 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Switch Included | High Pressure |

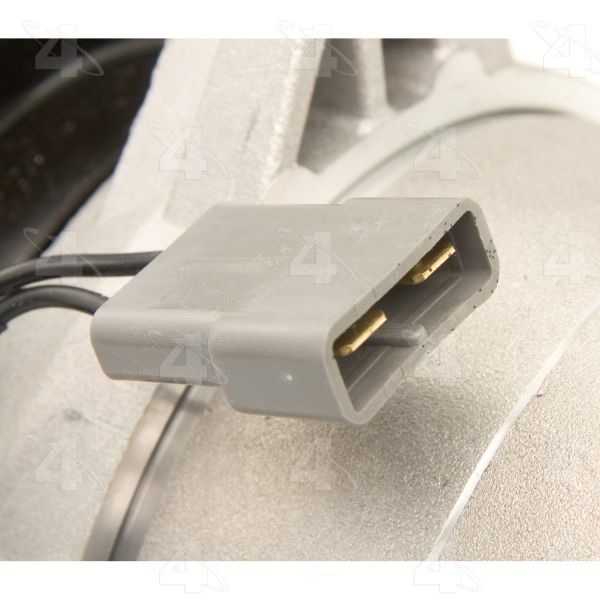

Terminal Type | Spade |
UPC | 096361582705 |
Year Make Model | Trim | Engine |
---|---|---|
1985 Buick Electra | All Trims | 6 Cyl 3.0L |
1985 Buick Electra | All Trims | 6 Cyl 3.8L |
1985 Buick Electra | All Trims | 6 Cyl 4.3L |
1985 Buick LeSabre | All Trims | 6 Cyl 3.8L |
1985 Oldsmobile 98 | All Trims | 6 Cyl 3.0L |
1985 Oldsmobile 98 | All Trims | 6 Cyl 3.8L |
1985 Oldsmobile 98 | All Trims | 6 Cyl 4.3L |
