Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58267 |

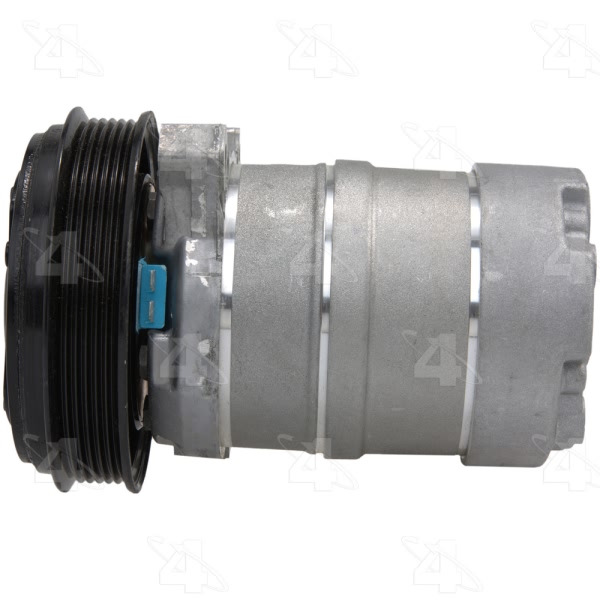

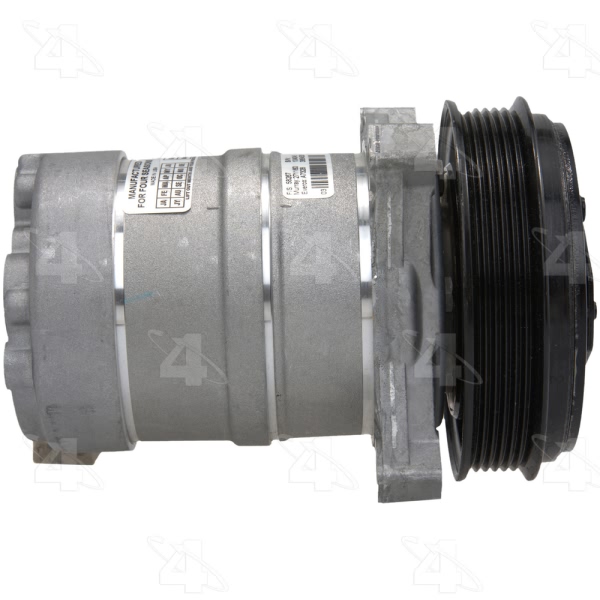

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.500 |
Coil Clock Position | 2 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | HR6 |
Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 0.546875 |
Mount Distance MM | 13.970 |
Mounting Hardware | Not Included |
Mounting Type | Type III |
New or Reman | New |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |

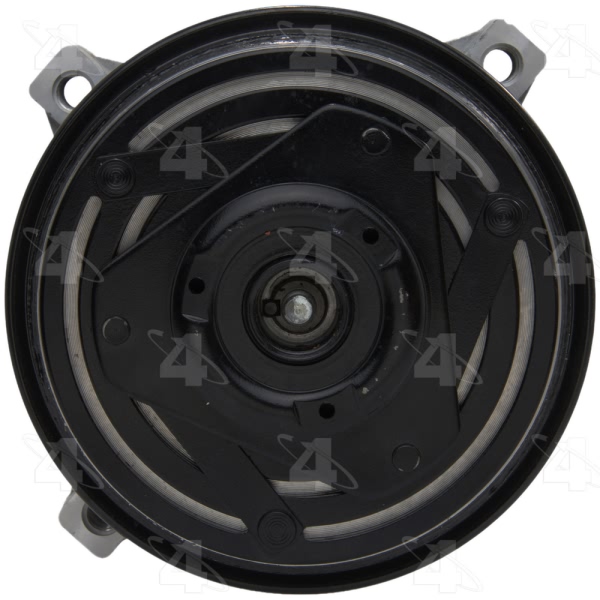

Pulley Belt Type | Serpentine |
Pulley Diameter MM | 139.700 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.500 |
Pulley Outside Diameter | 5.500 |
Pulley Ridge Diameter | 5.500 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Switch Included | High Pressure |

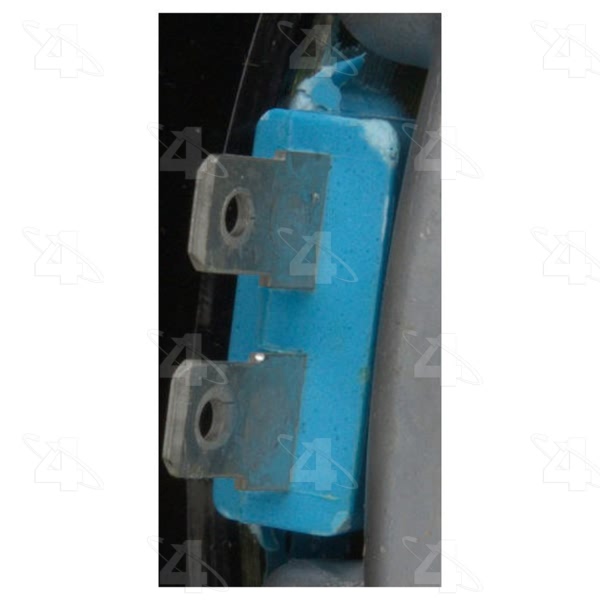

Terminal Type | Spade |
UPC | 096361582675 |
Year Make Model | Trim | Engine |
---|---|---|
1986-1988 Buick Century | All Trims | 6 Cyl 3.8L |
1989 Buick Century | All Trims | 6 Cyl 3.3L |
1985 Buick Electra | All Trims | 8 Cyl 5.0L |
1986-1988 Buick Electra | All Trims | 6 Cyl 3.8L |
1985 Buick LeSabre | All Trims | 8 Cyl 5.0L |
1986 Buick LeSabre | All Trims | 6 Cyl 3.0L |
1986-1989 Buick LeSabre | All Trims | 6 Cyl 3.8L |
1986 Buick Skylark | All Trims | 6 Cyl 3.0L |
1986 Buick Somerset | All Trims | 6 Cyl 3.0L |
1985 Buick Somerset Regal | All Trims | 6 Cyl 3.0L |
