Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58265 |

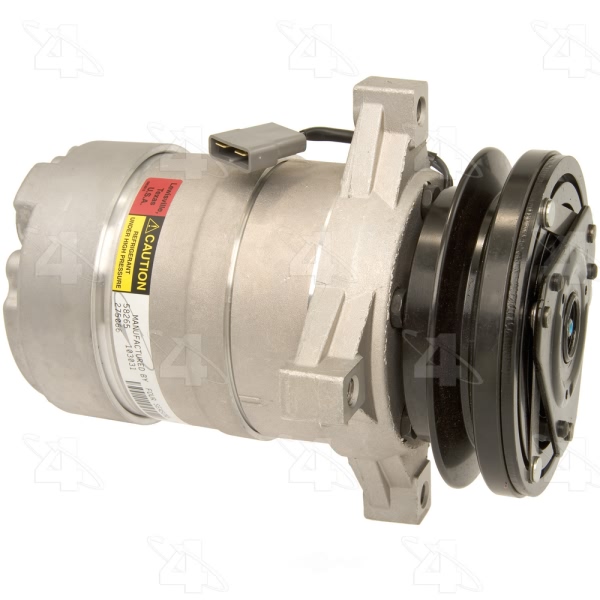

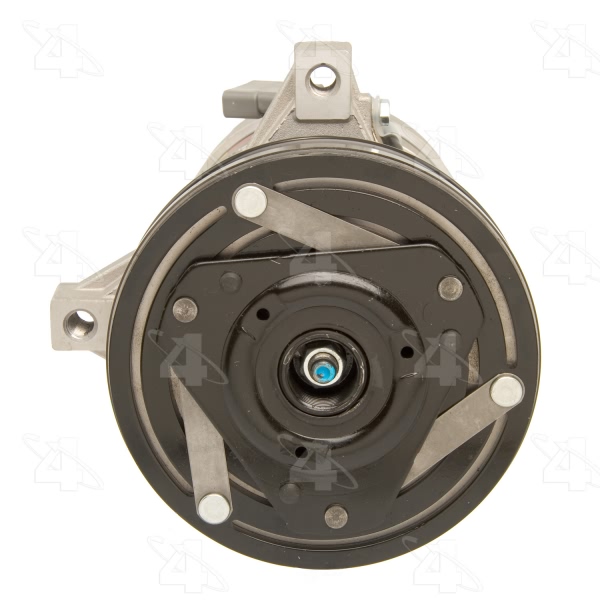

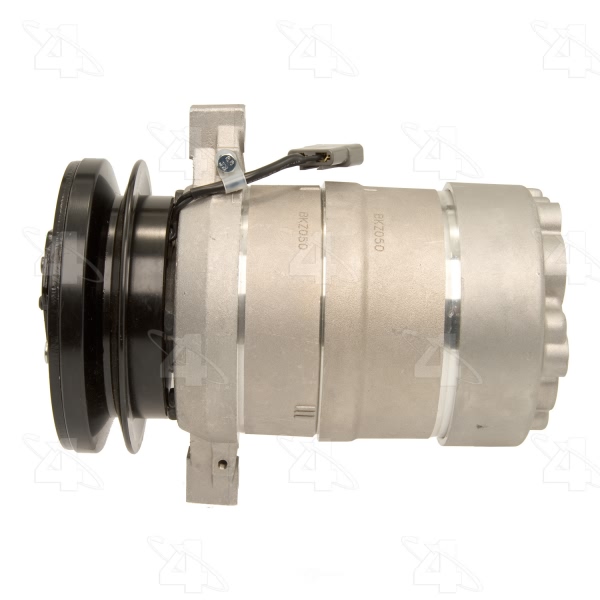

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.125 |
Coil Clock Position | 2 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | HR6 |
Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.203125 |
Mount Distance MM | 30.480 |
Mounting Hardware | Not Included |
Mounting Type | Type III Metric Thread |
New or Reman | New |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 130.048 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.125 |
Pulley Outside Diameter | 5.125 |
Pulley Ridge Diameter | 5.125 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Switch Included | High Pressure |
Terminal Type | Spade |
UPC | 096361582651 |
Year Make Model | Trim | Engine |
---|---|---|
1992-1993 AM General Hummer | All Trims | All Engines |
1983-1986 Buick Century | All Trims | 6 Cyl 2.8L |
1984-1985 Buick Skylark | All Trims | 6 Cyl 2.8L |
1993 Cadillac 60 Special | All Trims | All Engines |
1987-1991 Chevrolet Blazer | All Trims | 8 Cyl 6.2L |
1985-1986 Chevrolet C10 | All Trims | 8 Cyl 6.2L |
1985-1986 Chevrolet C10 Suburban | All Trims | 8 Cyl 6.2L |
1988 Chevrolet C1500 | All Trims | 6 Cyl 4.3L |
1985-1986 Chevrolet C20 | All Trims | 8 Cyl 6.2L |
1985-1986 Chevrolet C20 Suburban | All Trims | 8 Cyl 6.2L |
