Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58257 |

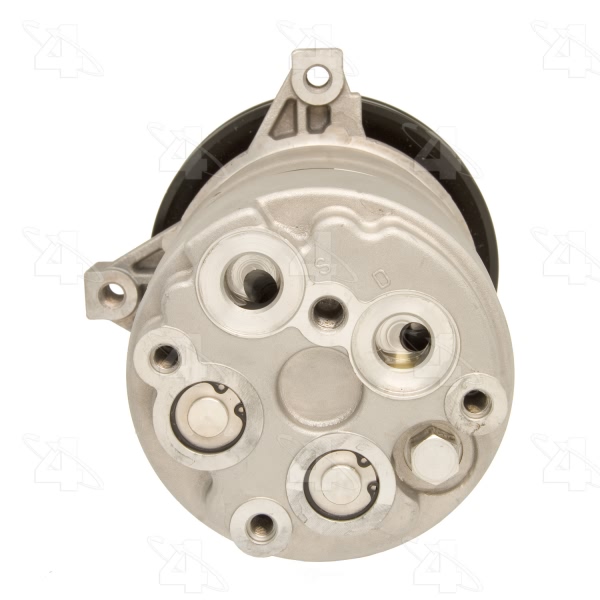

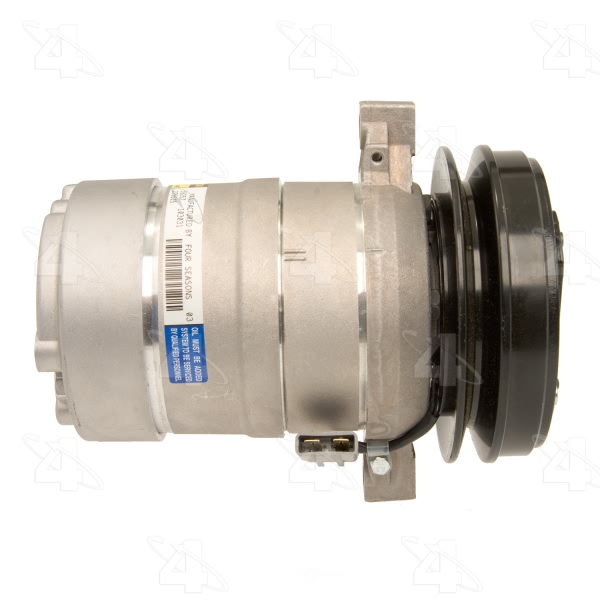

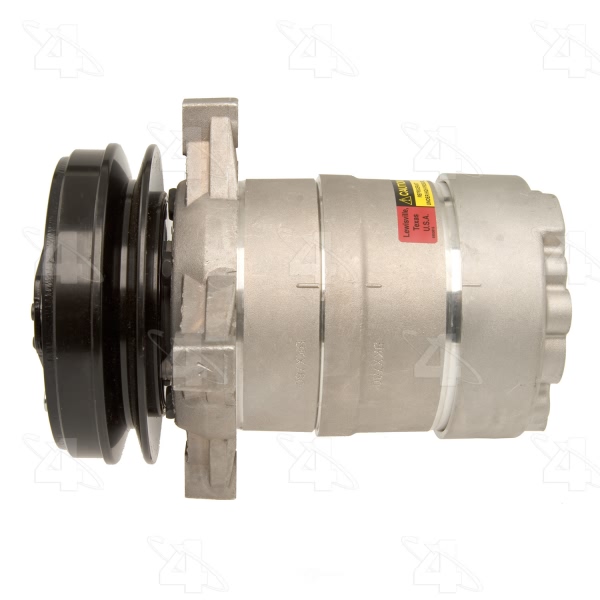

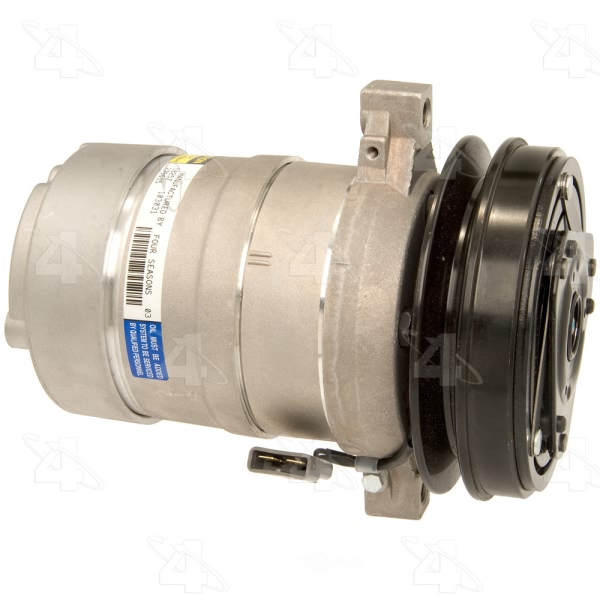

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.4375 |
Belt Width MM | 11.113 |

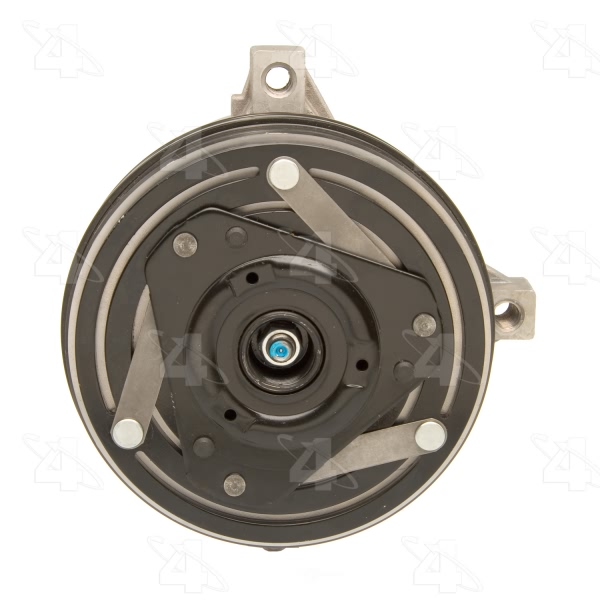

Clutch Included | Yes |
Clutch Maximum Diameter | 5.500 |
Coil Clock Position | 6 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | HR6 |

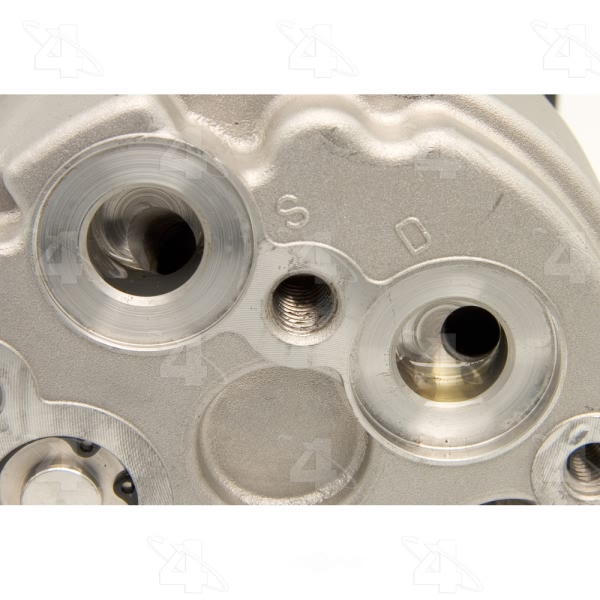

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 0.859375 |
Mount Distance MM | 21.590 |
Mounting Hardware | Not Included |
Mounting Type | Type II Metric Thread |
New or Reman | New |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 139.700 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.500 |
Pulley Outside Diameter | 5.500 |
Pulley Ridge Diameter | 5.500 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Switch Included | High Pressure |

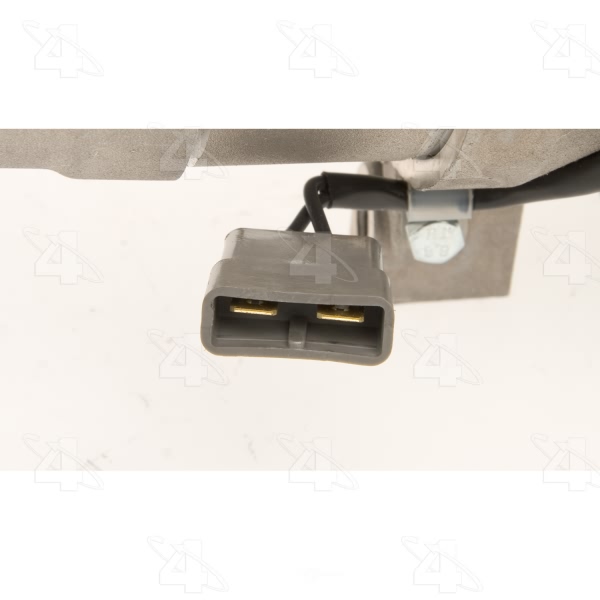

Terminal Type | Spade |
UPC | 096361582576 |
Year Make Model | Trim | Engine |
---|---|---|
1985-1986 Buick Skyhawk | All Trims | 4 Cyl 1.8L |
1987 Buick Skyhawk | All Trims | 4 Cyl 2.0L |
1985 Oldsmobile Firenza | All Trims | 4 Cyl 1.8L |
1985 Pontiac J2000 Sunbird | All Trims | 4 Cyl 1.8L |
1986 Pontiac Sunbird | All Trims | 4 Cyl 1.8L |
1987-1990 Pontiac Sunbird | All Trims | 4 Cyl 2.0L |
