Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58238 |

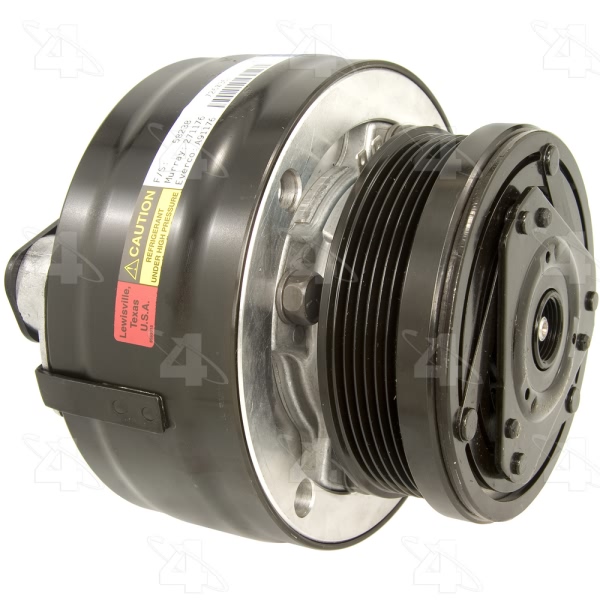

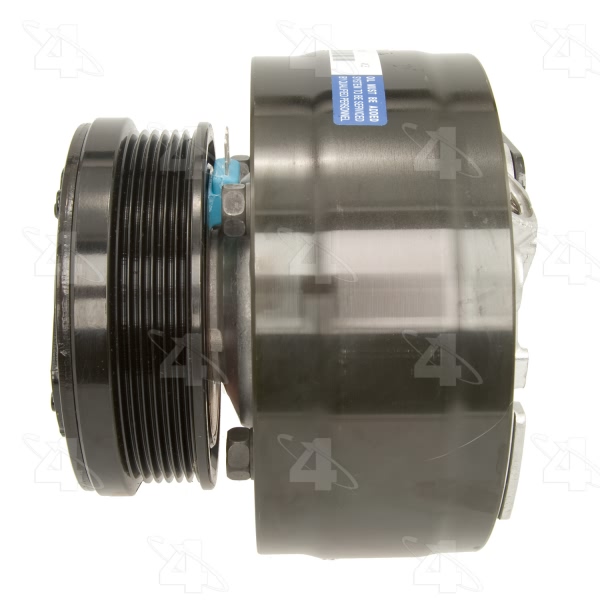

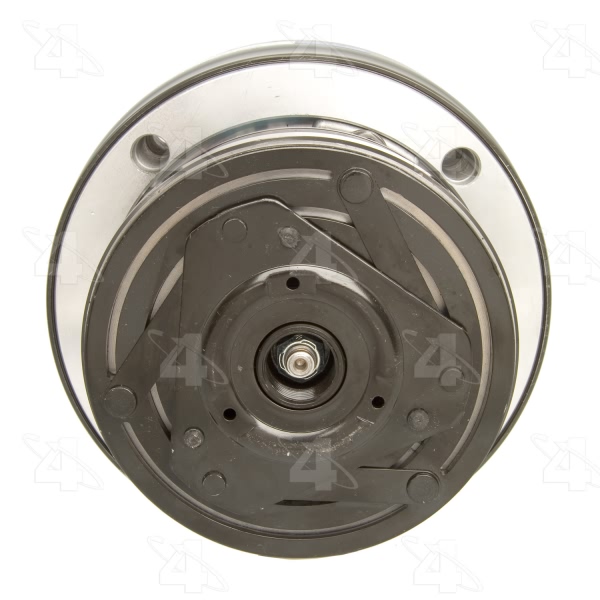

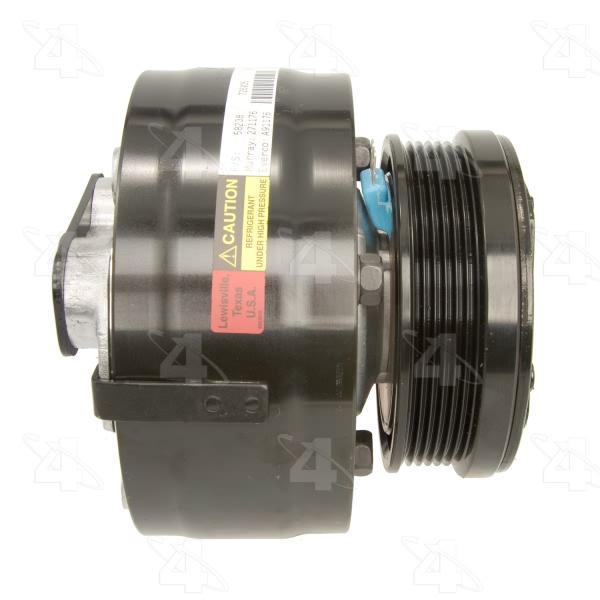

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.000 |
Coil Clock Position | 12 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | R4 Lightweight |
Distance From Clutch To Mounting Flange | 0.859375 |
Mounting Hardware | Not Included |
Mounting Type | Case Mount |
New or Reman | New |
O-Ring A Number/Desc | [24359] / Short Sealing Washer Pilot |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24360] / Long Sealing Washer Pilot |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24356] / Red Sealing Washer |
O-Ring C Quantity | 2 |
O-Ring D Number/Desc | [24357] / Green Sealing Washer |
O-Ring D Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 127.000 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.000 |
Pulley Outside Diameter | 5.000 |
Pulley Ridge Diameter | 5.000 |
Refrigerant Type | R134a |
Reman w/o Clutch | [57233] / Reman Compressor; [57230] / Reman Compressor |
Suction Port Type | O-Ring / Sealing Washer |

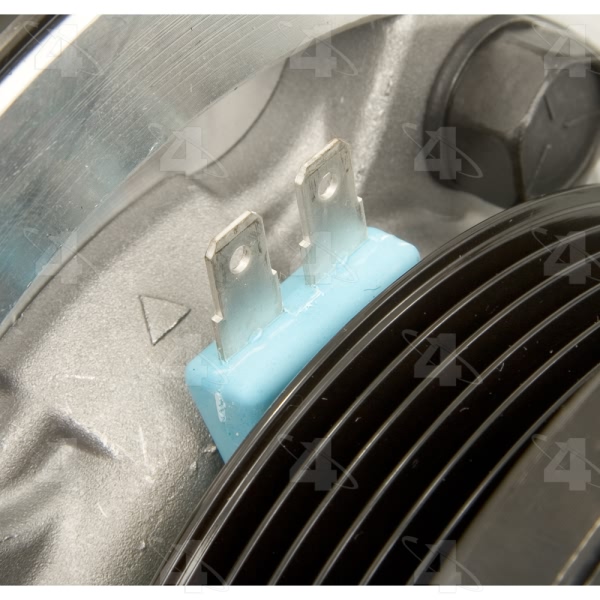

Switch Included | High Pressure |
Terminal Type | Spade |
UPC | 096361582385 |
Year Make Model | Trim | Engine |
---|---|---|
1987 Chevrolet Camaro | All Trims | 6 Cyl 2.8L |
1988-1989 Chevrolet Camaro | All Trims | All Engines |
1989-1990 Chevrolet Caprice | All Trims | 6 Cyl 4.3L |
1989-1990 Chevrolet Caprice | All Trims | 8 Cyl 5.0L |
1989-1990 Chevrolet Caprice | All Trims | 8 Cyl 5.7L |
1985-1987 Chevrolet Corvette | All Trims | All Engines |
1988-1991 Chevrolet G30 | All Trims | 8 Cyl 7.4L |
1987-1991 Chevrolet S10 | All Trims | 6 Cyl 2.8L |
1987-1989 Chevrolet S10 Blazer | All Trims | 6 Cyl 2.8L |
1988-1991 GMC G3500 | All Trims | 8 Cyl 7.4L |
