Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58189 |

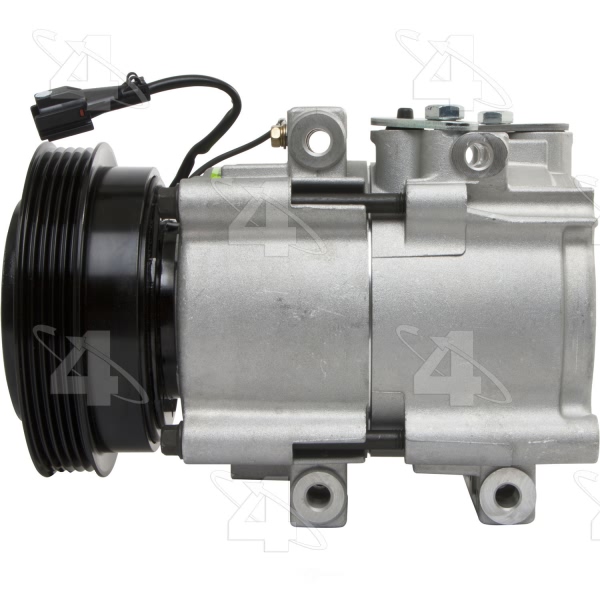

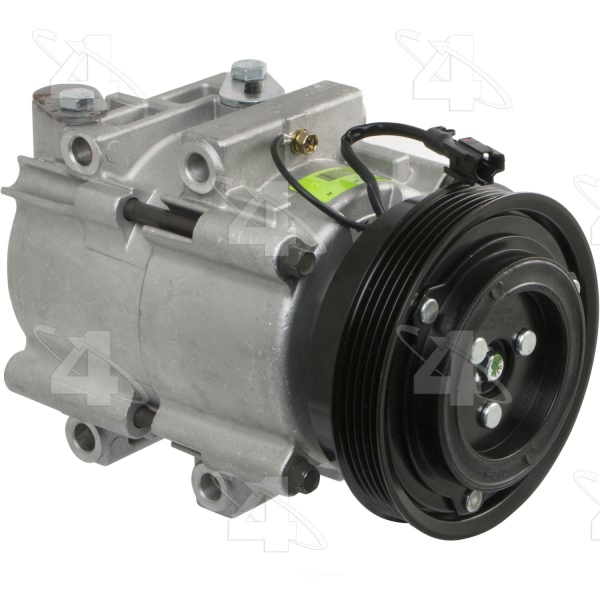

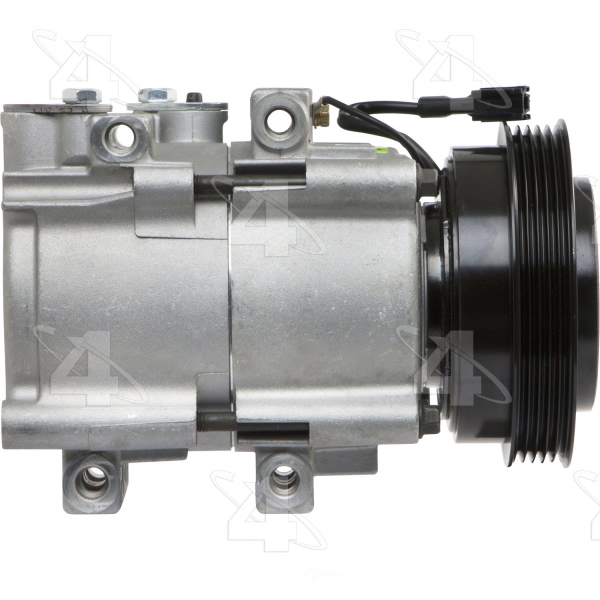

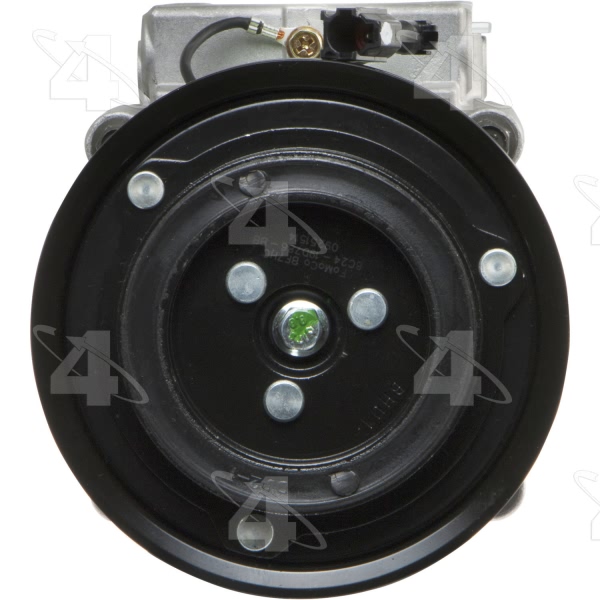

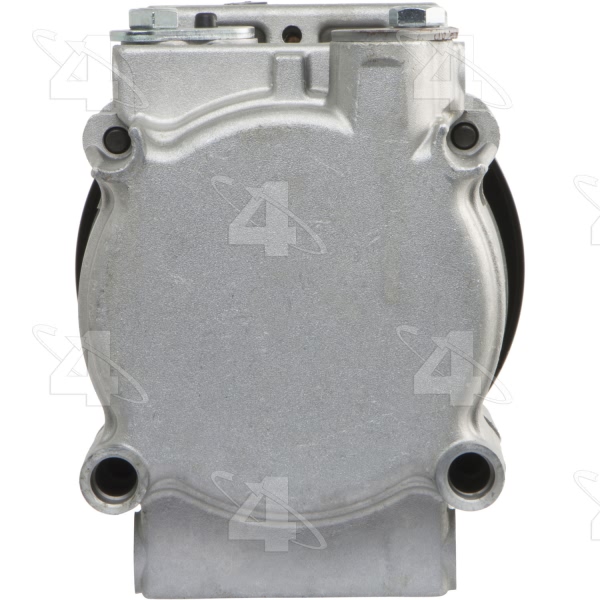

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | HS17 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.90625 |
Mount Distance MM | 73.660 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24628] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24641] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require Use of O.E. Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 123.825 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 4.875 |
Pulley Outside Diameter | 4.875 |
Pulley Ridge Diameter | 4.875 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361581890 |
Year Make Model | Trim | Engine |
---|---|---|
2001-2004 Hyundai Santa Fe | All Trims | 4 Cyl 2.4L |
1999-2005 Hyundai Sonata | All Trims | 4 Cyl 2.4L |
2001-2006 Kia Optima | All Trims | 4 Cyl 2.4L |
