Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58179 |

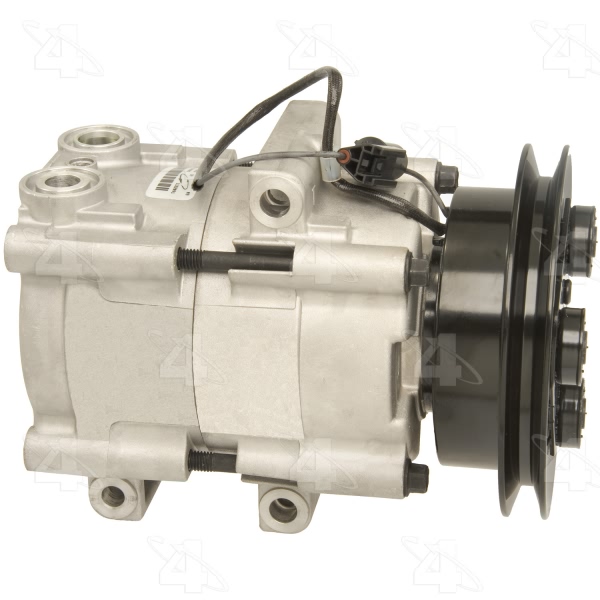

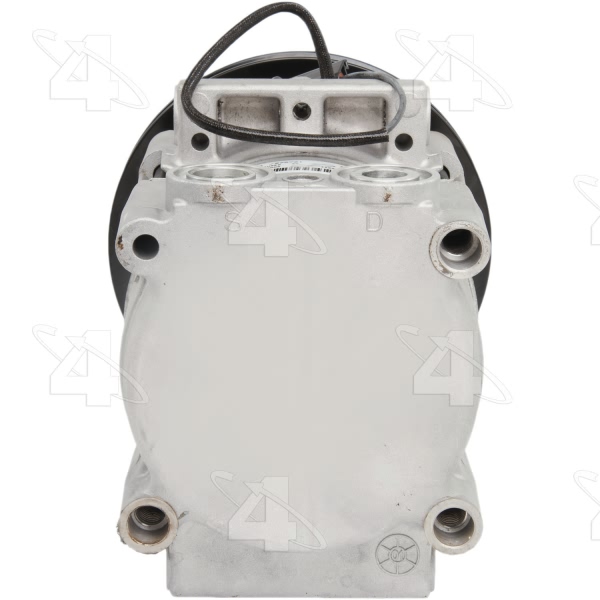

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.65625 |
Coil Clock Position | 12 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | FS10 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 3.40625 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24632] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 143.510 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.65625 |
Pulley Outside Diameter | 5.65625 |
Pulley Ridge Diameter | 5.65625 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361581791 |
Year Make Model | Trim | Engine |
---|---|---|
1994 Hyundai Excel | All Trims | All Engines |
