Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58144 |

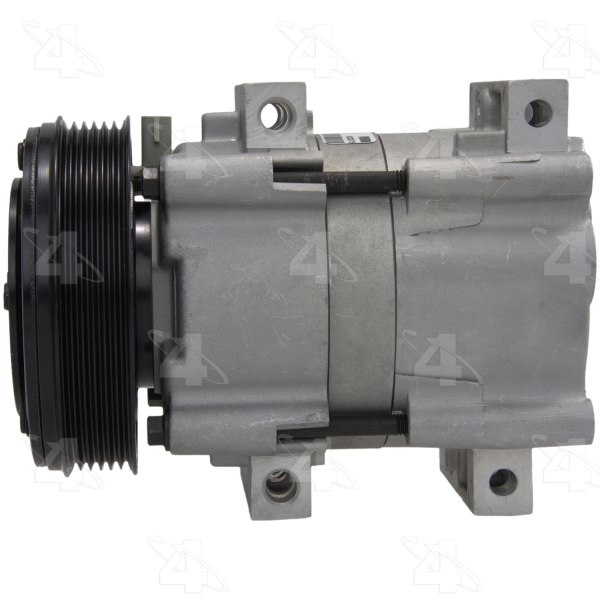

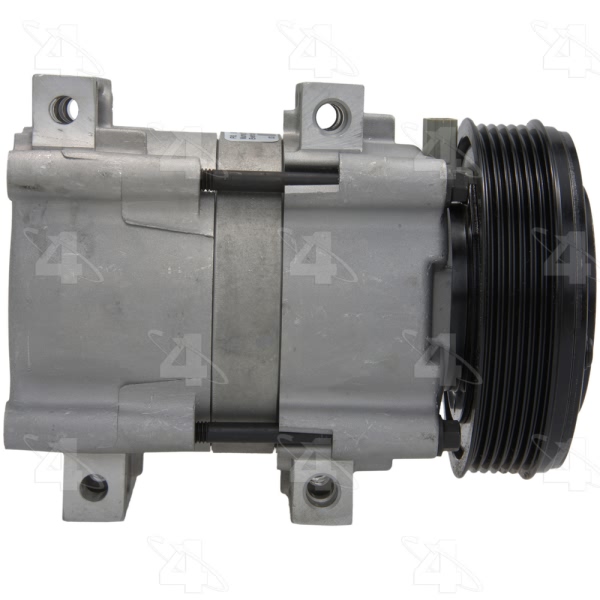

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.875 |

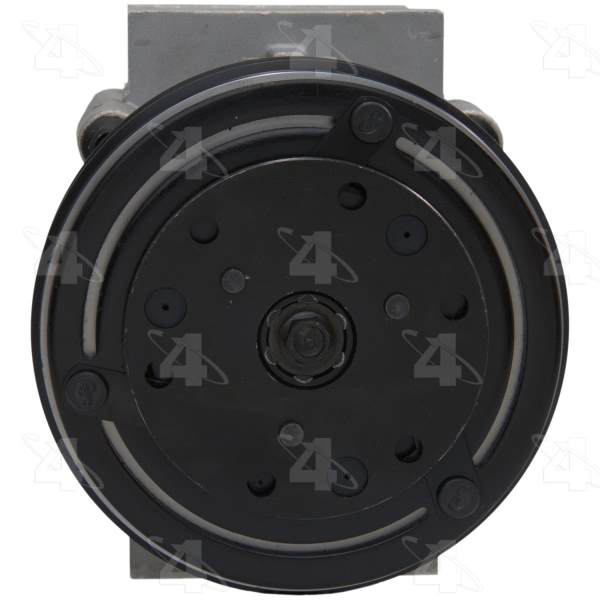

Clutch Included | Yes |
Clutch Maximum Diameter | 5.000 |
Coil Clock Position | 12 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | FS10 |
Distance From Clutch To Mounting Flange | 1.703125 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |

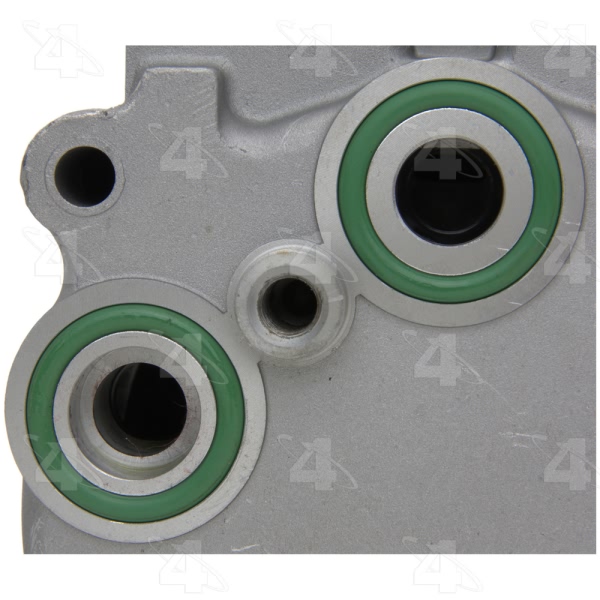

O-Ring A Number/Desc | [24632] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.000 |
Pulley Outside Diameter | 5.000 |
Pulley Ridge Diameter | 5.000 |
Refrigerant Type | R134a |
Suc Prt Typ Note | W/ O-Ring |

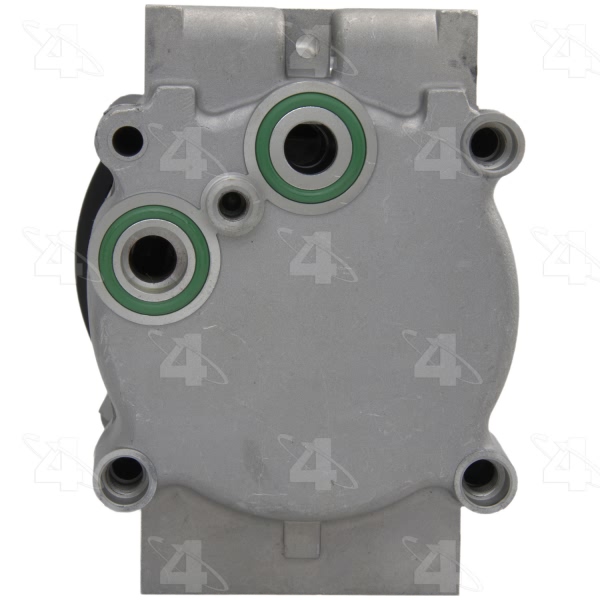

Suction Port Type | Block Mount |

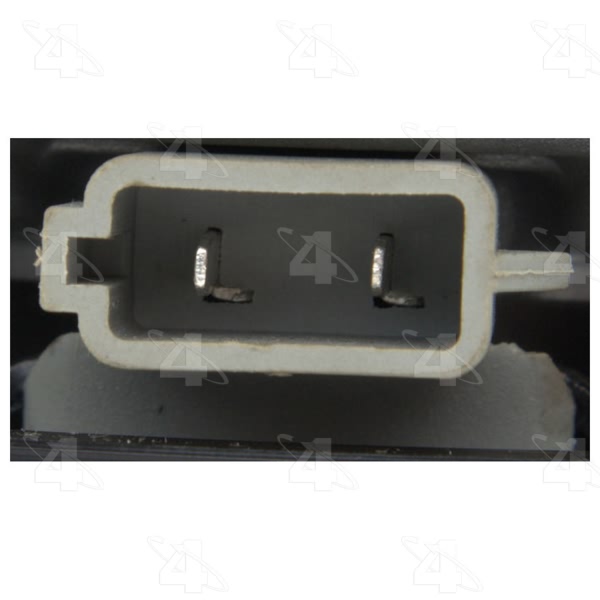

Terminal Type | Pin |
UPC | 096361581449 |
Year Make Model | Trim | Engine |
---|---|---|
1995-2000 Ford Contour | All Trims | 4 Cyl 2.0L |
2001-2004 Ford Escape | All Trims | 4 Cyl 2.0L |
1995 Ford Mystique | All Trims | 4 Cyl 2.0L |
2001-2004 Mazda Tribute | All Trims | 4 Cyl 2.0L |
1999-2002 Mercury Cougar | All Trims | 4 Cyl 2.0L |
1995-2000 Mercury Mystique | All Trims | 4 Cyl 2.0L |
