Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58140 |

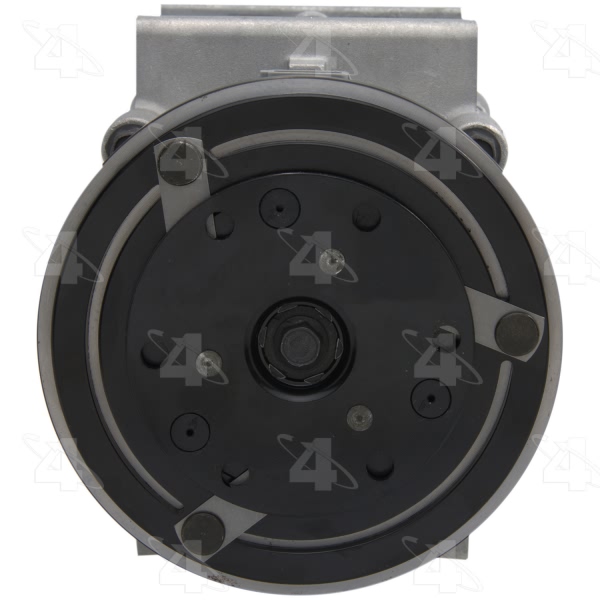

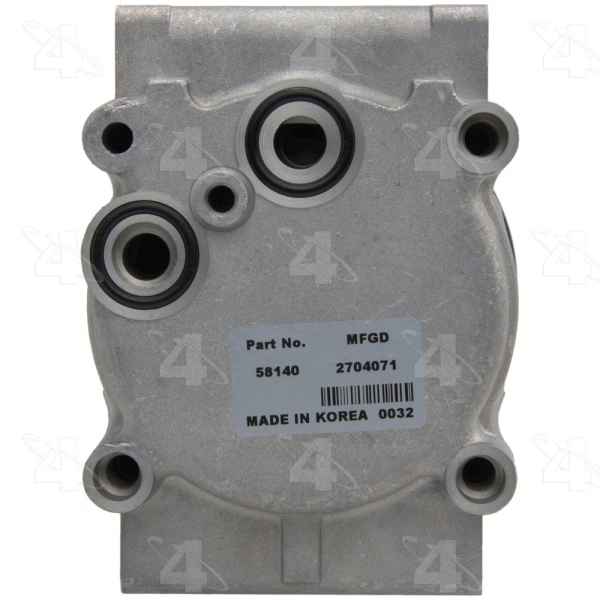

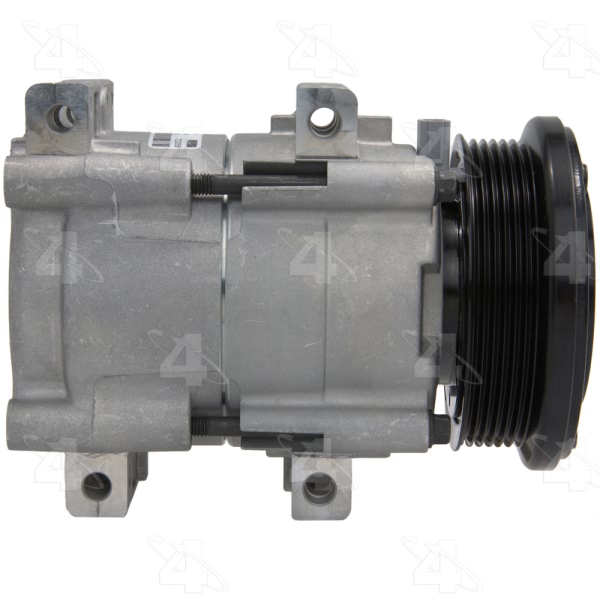

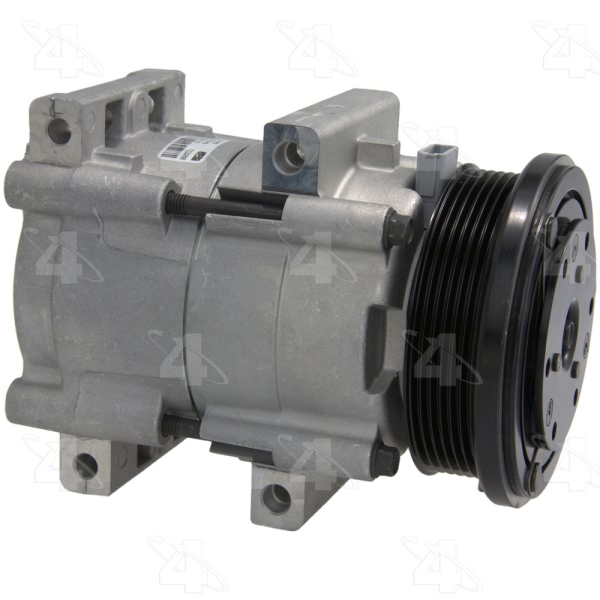

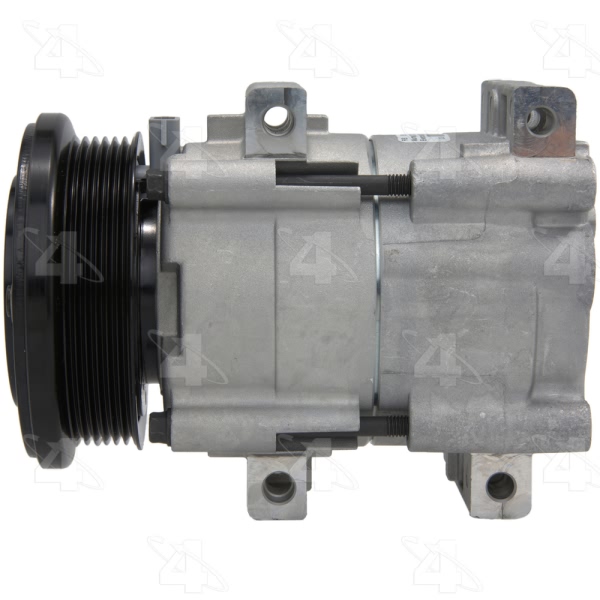

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.875 |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.500 |
Coil Clock Position | 12 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | FS10 |
Distance From Clutch To Mounting Flange | 1.703125 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24632] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.500 |
Pulley Outside Diameter | 4.500 |
Pulley Ridge Diameter | 4.500 |
Refrigerant Type | R134a |
Suc Prt Typ Note | W/ O-Ring |

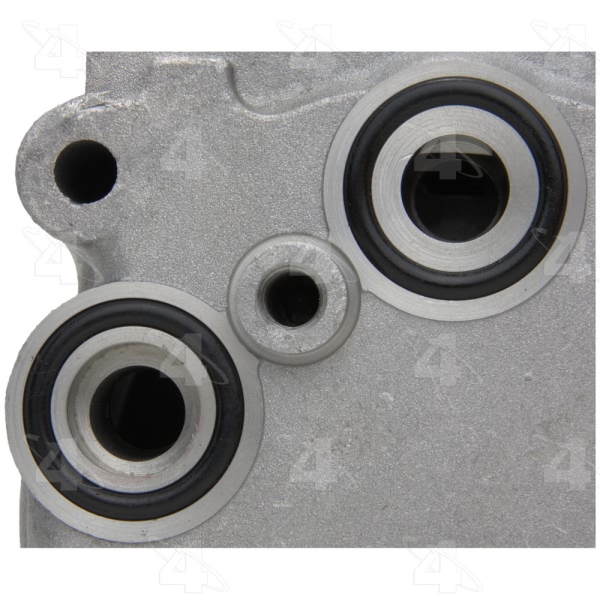

Suction Port Type | Block Mount |

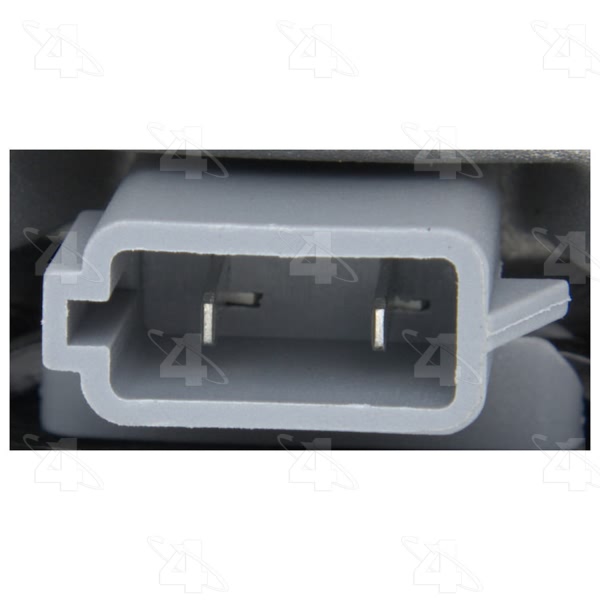

Terminal Type | Pin |
UPC | 096361581401 |
Year Make Model | Trim | Engine |
---|---|---|
1990-1997 Ford Aerostar | All Trims | 6 Cyl 3.0L |
1991-1993 Ford Cougar | All Trims | 8 Cyl 5.0L |
1996-2001 Ford Explorer | All Trims | 8 Cyl 5.0L |
1994-1995 Ford Mustang | All Trims | 8 Cyl 5.0L |
1995 Ford Mustang | All Trims | 8 Cyl 5.8L |
2005-2006 Ford Mustang | All Trims | 6 Cyl 4.0L |
1991-1993 Ford Thunderbird | All Trims | 8 Cyl 5.0L |
1991-1993 Mercury Cougar | All Trims | 8 Cyl 5.0L |
1997 Mercury Mountaineer | All Trims | All Engines |
1998-2001 Mercury Mountaineer | All Trims | 8 Cyl 5.0L |
