Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58128 |
Part Description | A C Compressor With Clutch |
Belt Width IN | 0.875 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.500 |
Coil Clock Position | 9 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | FS10 |
Distance From Clutch To Mounting Flange | 1.703125 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24632] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.500 |
Pulley Outside Diameter | 5.500 |
Pulley Ridge Diameter | 5.500 |
Refrigerant Type | R134a |
Suc Prt Typ Note | W/ O-Ring |
Suction Port Type | Block Mount |

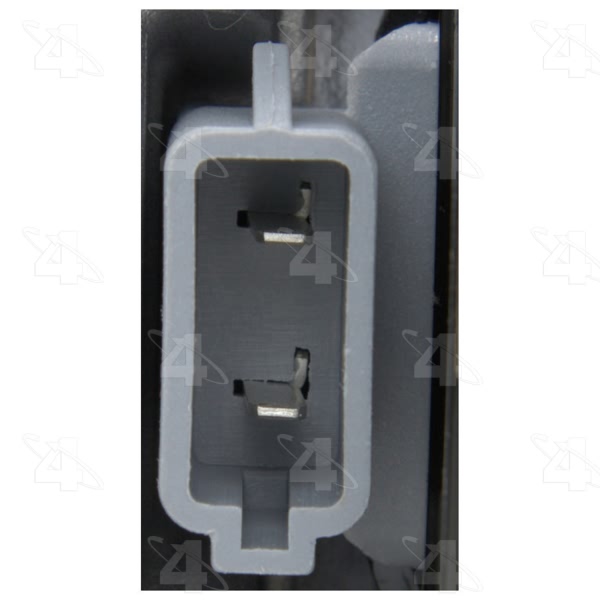

Terminal Type | Pin |
UPC | 096361581289 |
Year Make Model | Trim | Engine |
---|---|---|
1996-1997 Ford F-100 Ranger | All Trims | 4 Cyl 2.3L |
1998-2000 Ford F-100 Ranger | All Trims | 4 Cyl 2.5L |
1990-1997 Ford Ranger | All Trims | 4 Cyl 2.3L |
1998-2001 Ford Ranger | All Trims | 4 Cyl 2.5L |
1994 Mazda B2300 | All Trims | All Engines |
1995-1997 Mazda B2300 | All Trims | 4 Cyl 2.3L |
1998-2001 Mazda B2500 | All Trims | All Engines |
