Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58106 |

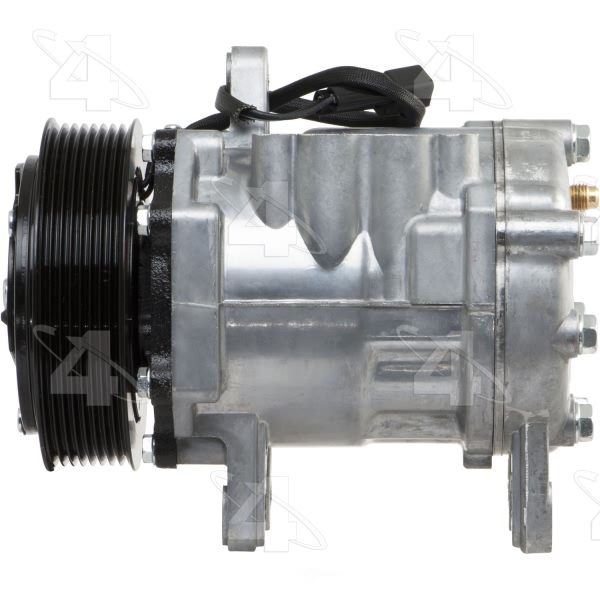

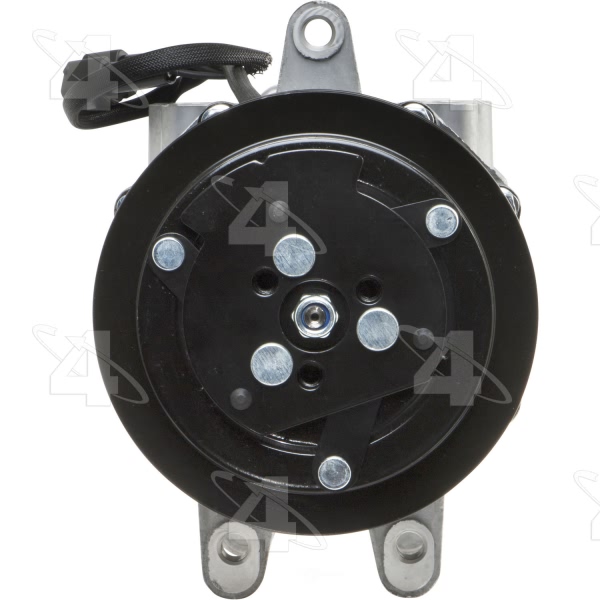

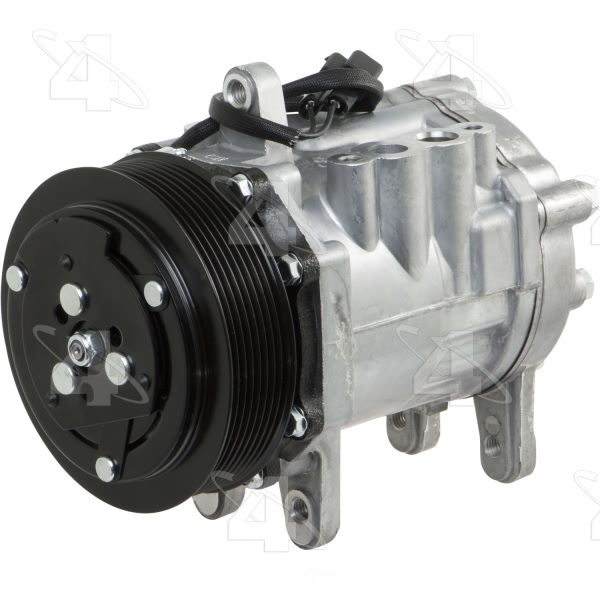

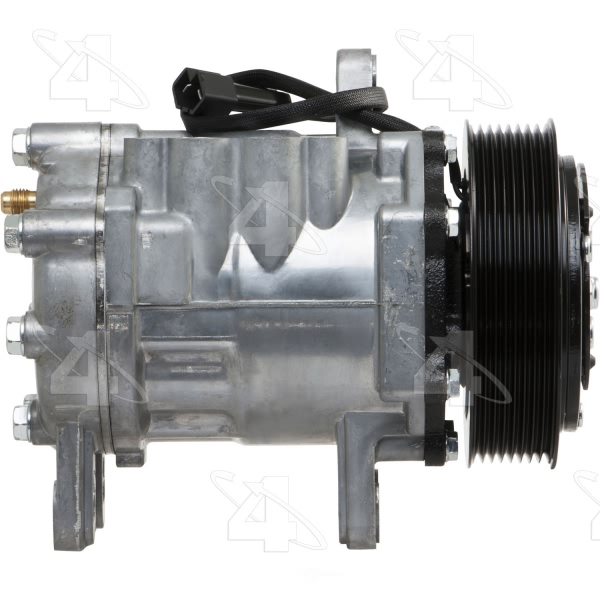

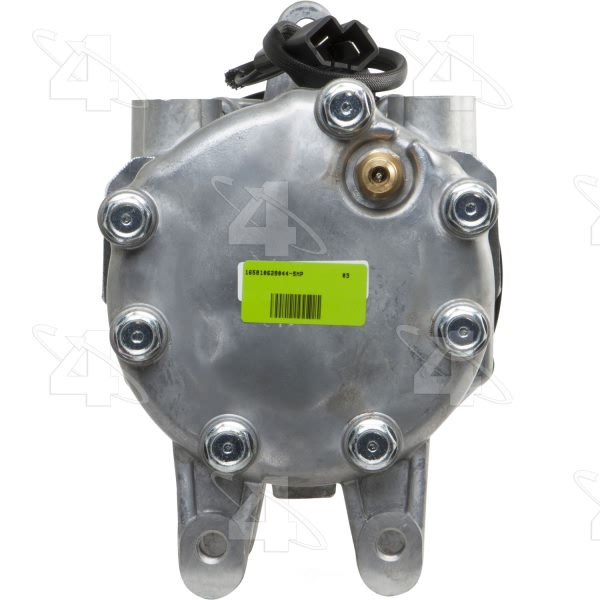

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.250 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | C171 |
Discharge Port Type | Gasket |
Distance From Clutch To Mounting Flange | 1.546875 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24151] / Compressor Manifold Port Gasket |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 133.350 |
Pulley Groove Quantity | 8 |
Pulley Lip Diameter | 5.250 |
Pulley Outside Diameter | 5.250 |
Pulley Ridge Diameter | 5.250 |
Refrigerant Type | R134a |
Suction Port Type | Gasket |
Terminal Type | Spade |
UPC | 096361581067 |
Year Make Model | Trim | Engine |
---|---|---|
1989-1991 Dodge D250 | All Trims | 6 Cyl 5.9L |
1989-1991 Dodge D350 | All Trims | 6 Cyl 5.9L |
1989-1991 Dodge W250 | All Trims | 6 Cyl 5.9L |
1989-1991 Dodge W350 | All Trims | 6 Cyl 5.9L |
