Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58101 |

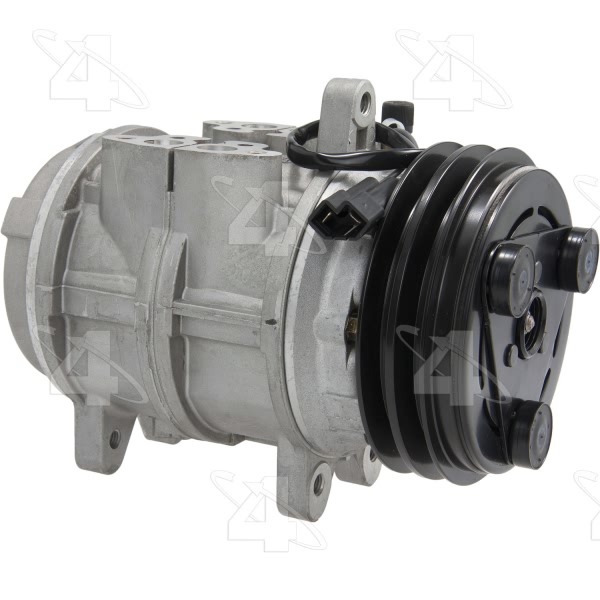

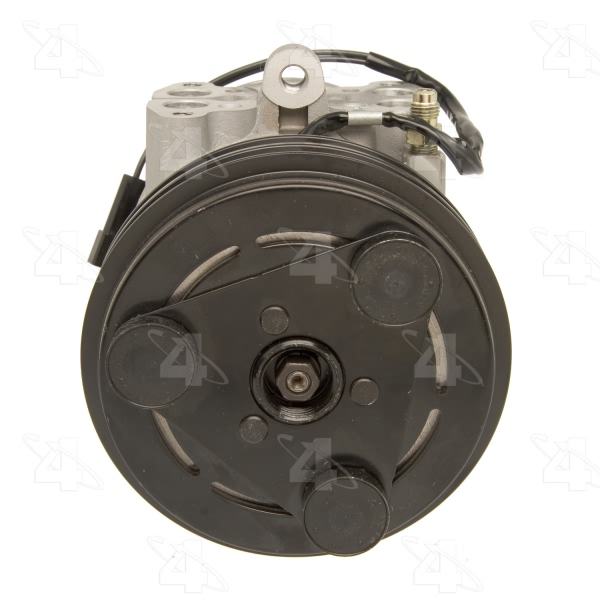

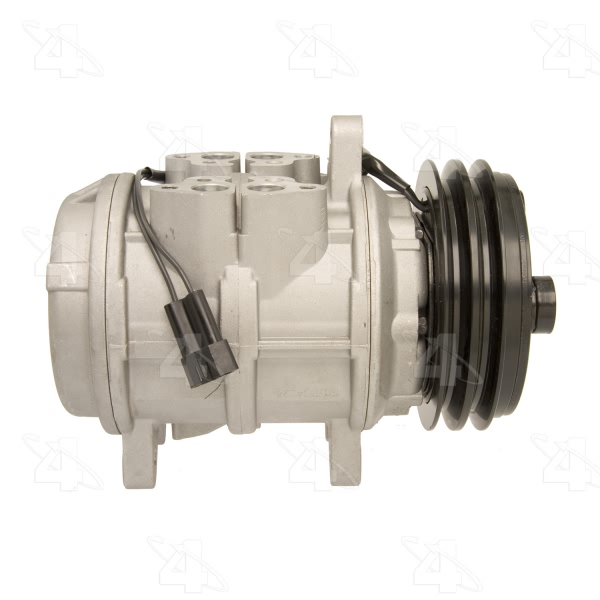

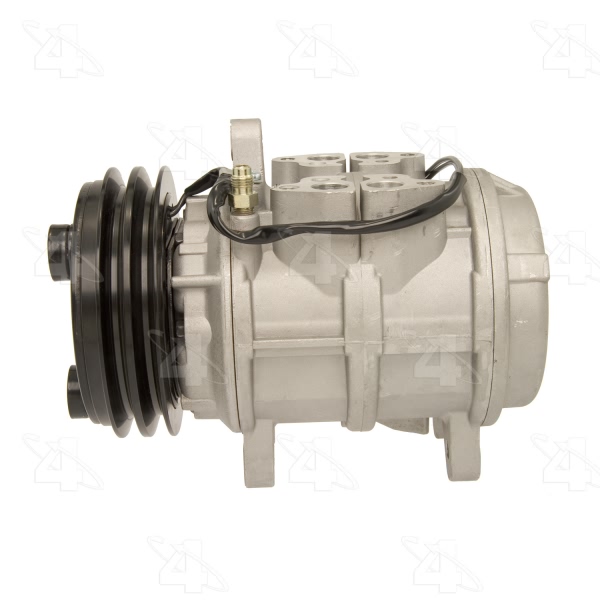

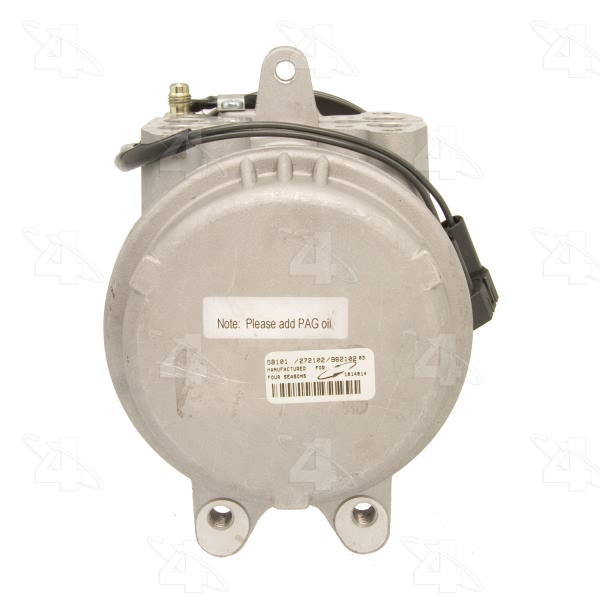

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.375 |
Belt Width MM | 9.525 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.5625 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | C171 |

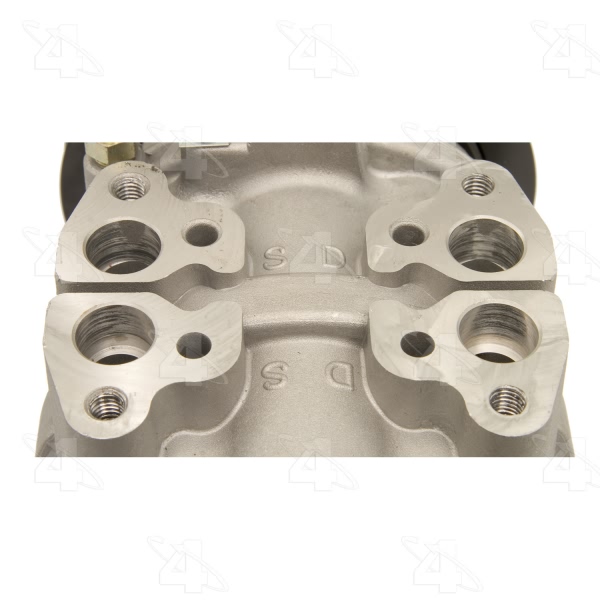

Discharge Port Type | Gasket |
Distance From Clutch To Mounting Flange | 1.65625 |
Mount Distance B IN | 2.203125 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24151] / Compressor Manifold Port Gasket |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 141.275 |
Pulley Groove Quantity | 2 |
Pulley Lip Diameter | 5.5625 |
Pulley Outside Diameter | 5.5625 |
Pulley Ridge Diameter | 5.5625 |
Refrigerant Type | R134a |
Reman w/o Clutch | [57038] |
Suc Prt Typ Note | W/ Gasket |
Suction Port Type | Gasket |

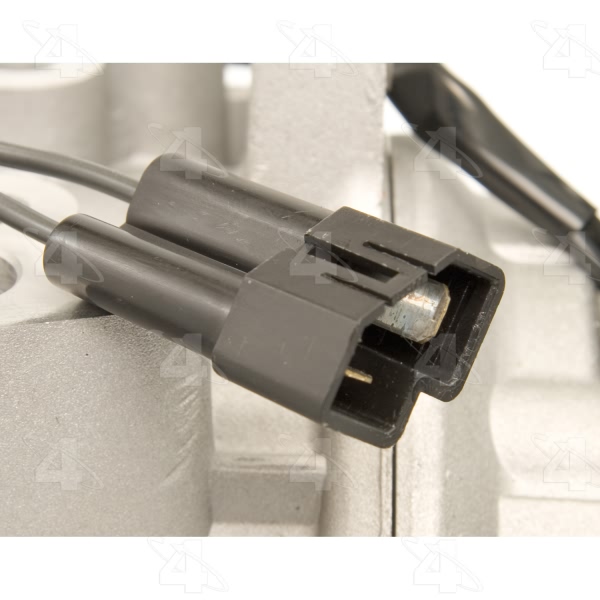

Terminal Type | Spade |
UPC | 096361581012 |
Year Make Model | Trim | Engine |
---|---|---|
1984-1989 Chrysler Fifth Avenue | All Trims | All Engines |
1983 Chrysler LeBaron | All Trims | 4 Cyl 2.6L |
1983 Chrysler New Yorker | All Trims | 4 Cyl 2.6L |
1983 Dodge Aries | All Trims | 4 Cyl 2.6L |
1981-1985 Dodge B150 | All Trims | 8 Cyl 5.2L |
1986-1989 Dodge B150 | All Trims | All Engines |
1990 Dodge B150 | All Trims | 6 Cyl 3.9L |
1990 Dodge B150 | All Trims | 8 Cyl 5.2L |
1981 Dodge B250 | All Trims | 8 Cyl 5.9L |
1981-1985 Dodge B250 | All Trims | 8 Cyl 5.2L |
