Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58100 |

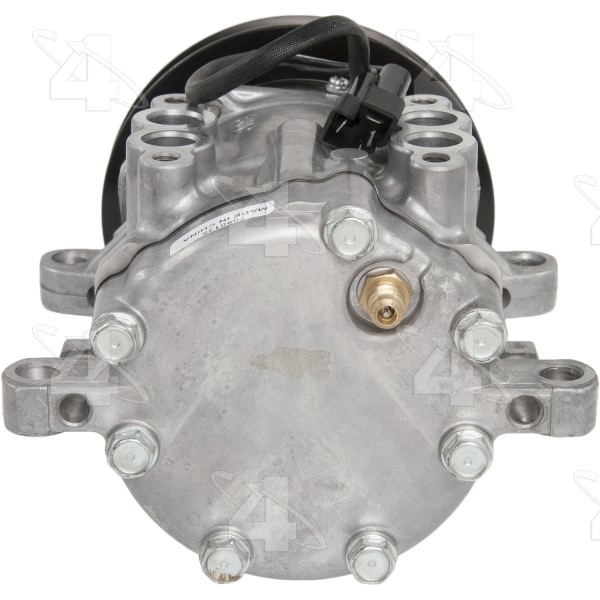

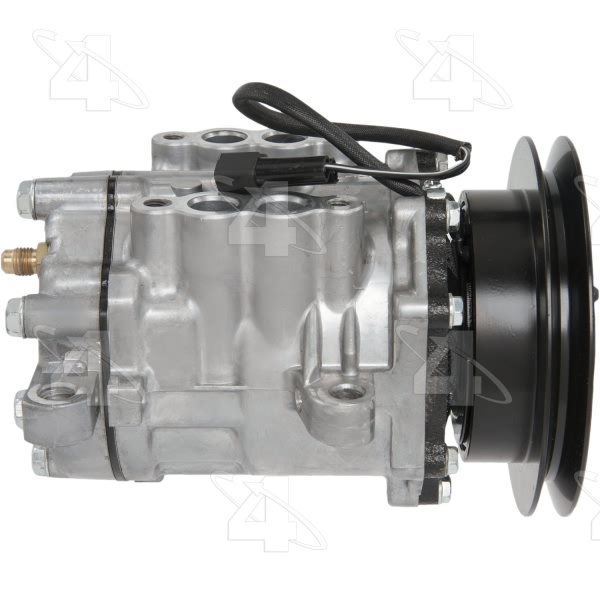

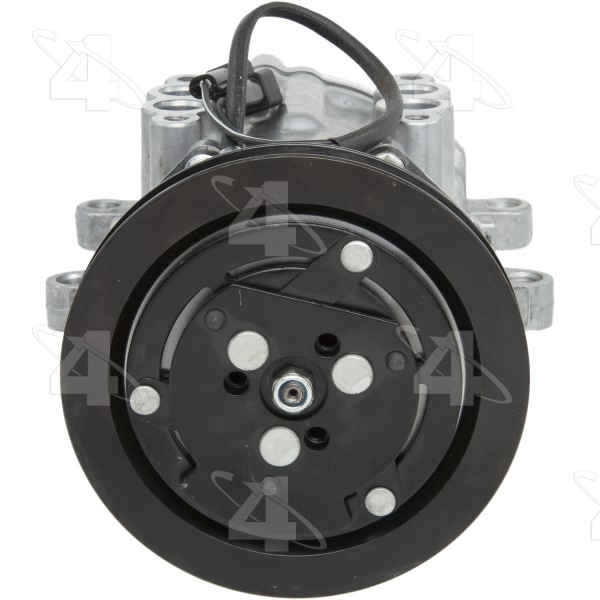

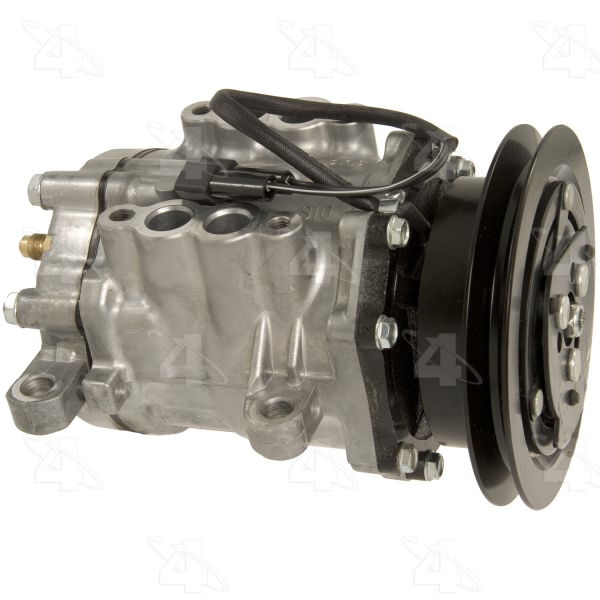

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.4375 |
Belt Width MM | 11.113 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.750 |

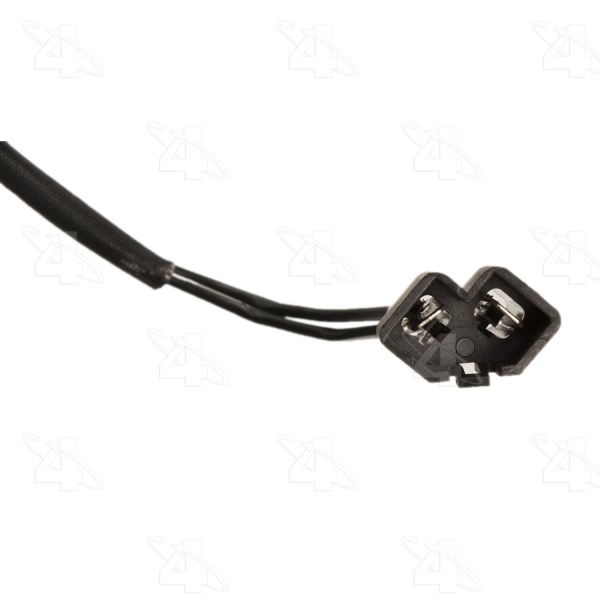

Coil Clock Position | 2 Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | A590 |
Discharge Port Type | O-Ring / Gasket |
Distance From Clutch To Mounting Flange | 2.546875 |
Mount Distance MM | 64.770 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24151] / Compressor Manifold Port Gasket |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 146.050 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.750 |
Pulley Outside Diameter | 5.750 |
Pulley Ridge Diameter | 5.750 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring / Gasket |
Terminal Type | Spade |
UPC | 096361581005 |
Year Make Model | Trim | Engine |
---|---|---|
1985-1990 Chrysler Daytona | All Trims | All Engines |
1991 Chrysler Daytona | All Trims | 4 Cyl 2.5L |
1988-1990 Chrysler Dynasty | All Trims | 4 Cyl 2.5L |
1989 Chrysler Dynasty | All Trims | 6 Cyl 3.0L |
1985-1986 Chrysler Laser | All Trims | All Engines |
1985 Chrysler LeBaron | All Trims | 4 Cyl 2.2L |
1986-1990 Chrysler LeBaron | All Trims | All Engines |
1985 Chrysler New Yorker | All Trims | 4 Cyl 2.2L |
1986-1988 Chrysler New Yorker | All Trims | All Engines |
1989-1991 Chrysler Shadow | All Trims | All Engines |
