Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58077 |

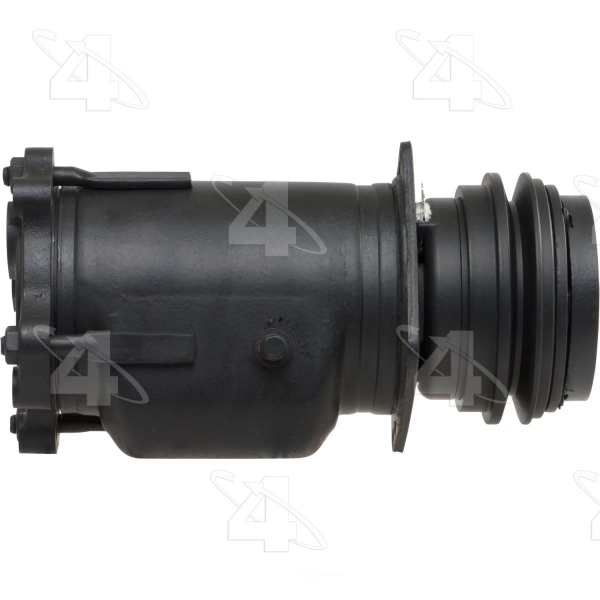

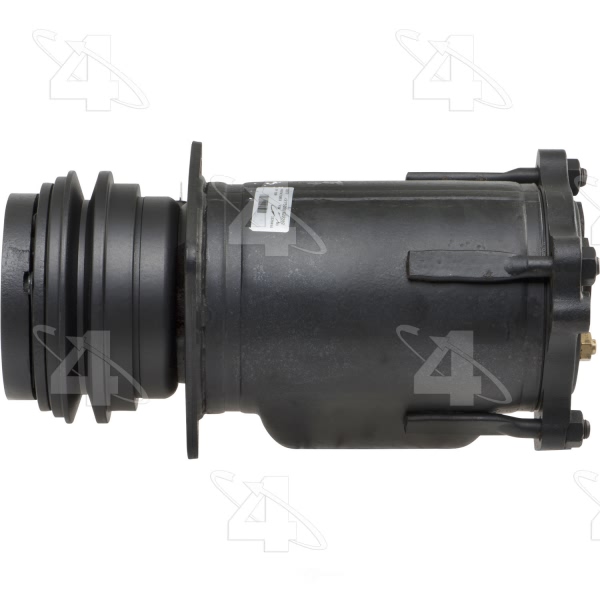

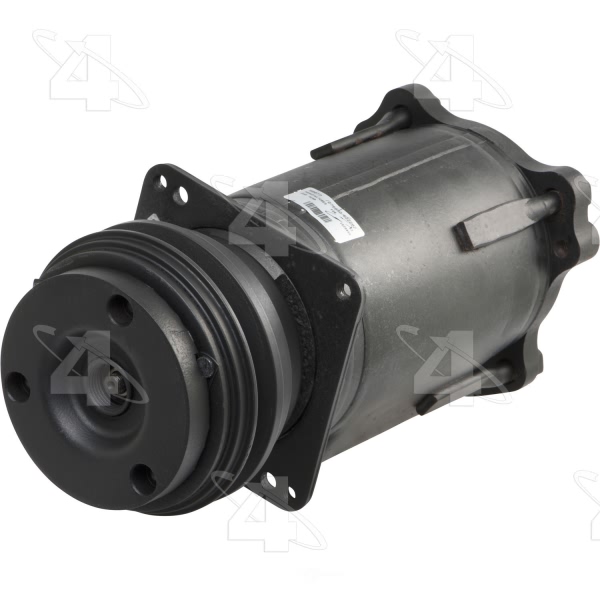

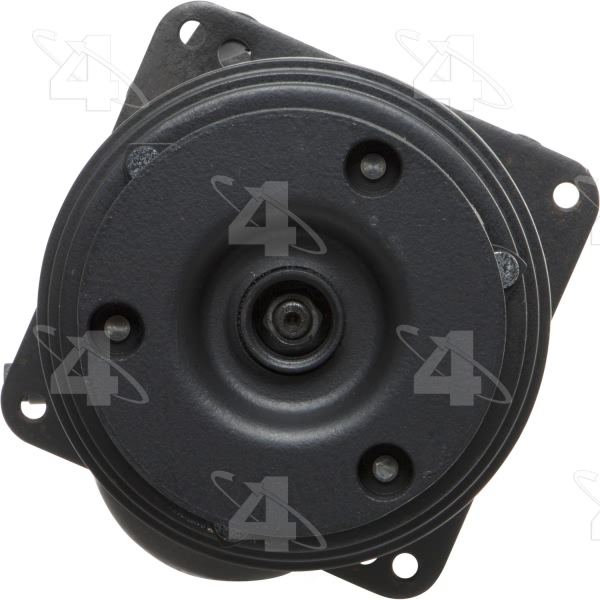

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.4375 |
Belt Width MM | 11.113 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.000 |
Coil Clock Position | 10 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | A6 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.000 |
Mount Distance MM | 50.800 |
Mounting Hardware | Not Included |
Mounting Type | Direct Mount |
New or Reman | New |
O-Ring A Number/Desc | [24619] / Green Oval O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 127.000 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.000 |
Pulley Outside Diameter | 5.000 |
Pulley Ridge Diameter | 5.000 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Spade |
UPC | 096361580770 |
Year Make Model | Trim | Engine |
---|---|---|
1975-1976 Ford Custom 500 | Base | 8 Cyl 7.5L |
1975-1977 Ford Custom 500 | Base | 8 Cyl 5.8L |
1975-1977 Ford Custom 500 | Base | 8 Cyl 6.6L |
1975-1977 Ford Custom 500 | Ranch Wagon | 8 Cyl 6.6L |
1975-1977 Ford Granada | All Trims | 6 Cyl 3.3L |
1975-1980 Ford Granada | All Trims | 6 Cyl 4.1L |
1975-1976 Ford LTD | Brougham | All Engines |
1975-1979 Ford LTD | All Trims | All Engines |
1975-1979 Ford LTD | Base | All Engines |
1975-1979 Ford LTD | Landau | All Engines |
