Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 198386 |

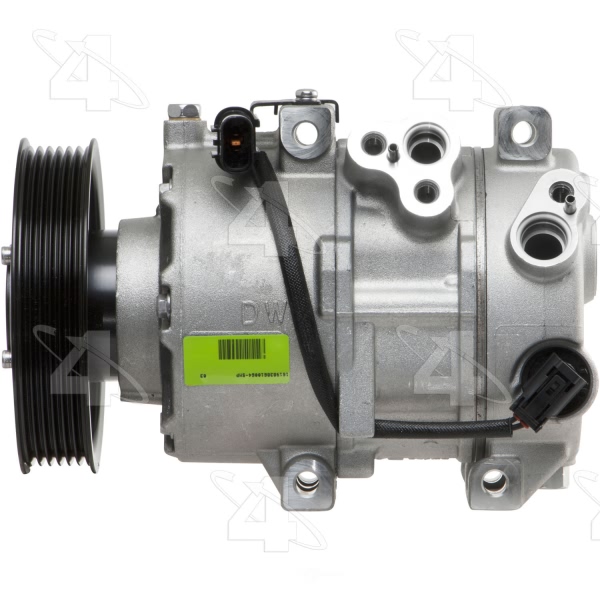

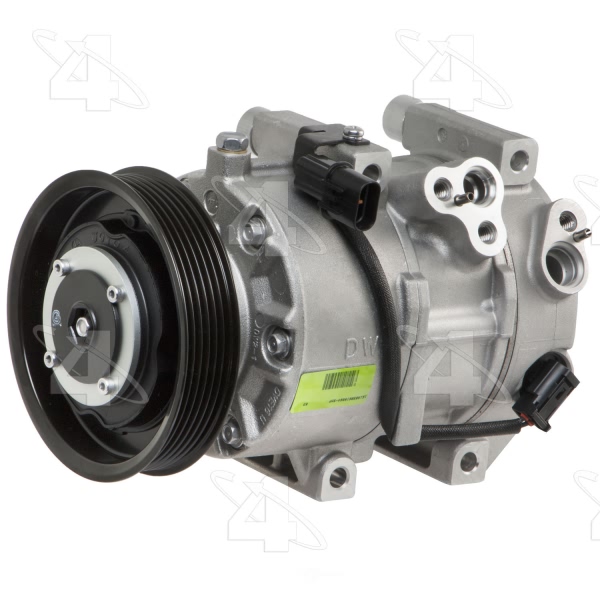

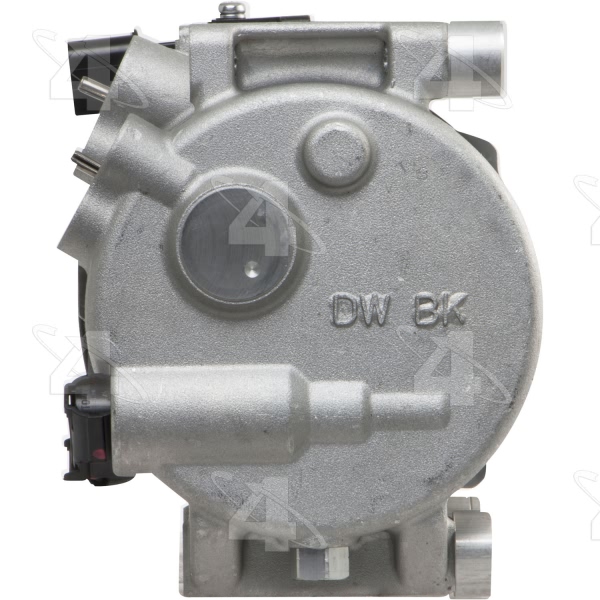

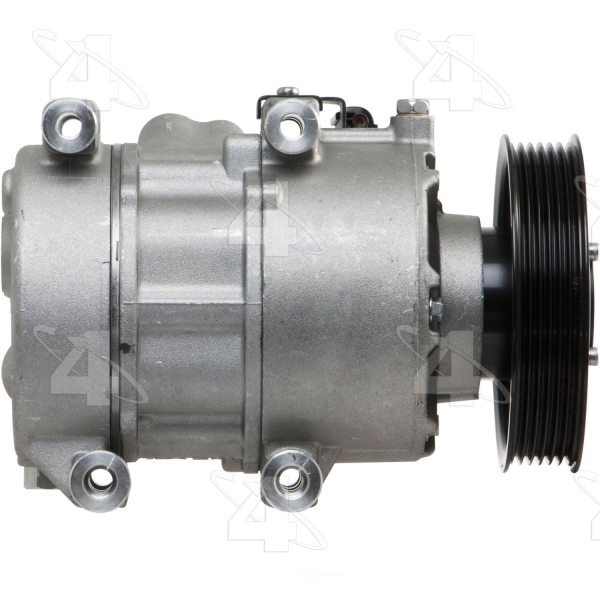

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.69 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | HCC-DVE16 |

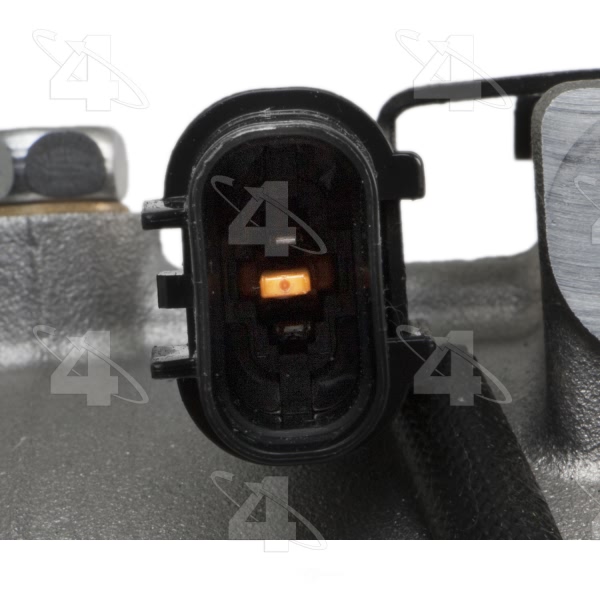

ECV Harness Connector | SE30F, 26899 Female / / SE22M, 26882 Male |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | 24661 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24681 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |

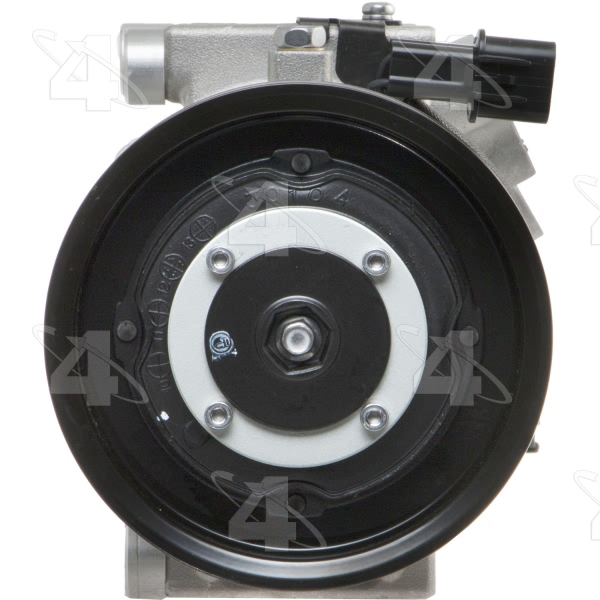

Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.69 |
Pulley Outside Diameter | 4.69 |
Pulley Ridge Diameter | 4.69 |
Refrigerant Type | R134a |
Terminal Type | Pin |
UPC | 096361629479 |
Year Make Model | Trim | Engine |
---|---|---|
2013-2014 Hyundai Genesis Coupe | All Trims | 6 Cyl 3.8L |
2015-2016 Hyundai Genesis Coupe | All Trims | All Engines |
