Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 198359 |

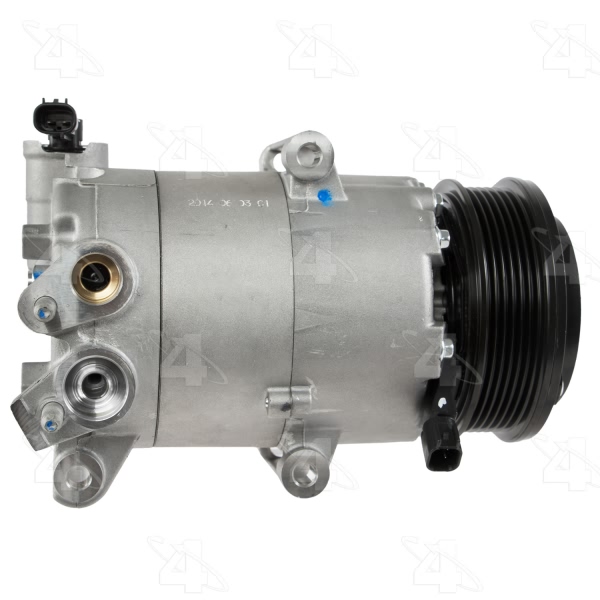

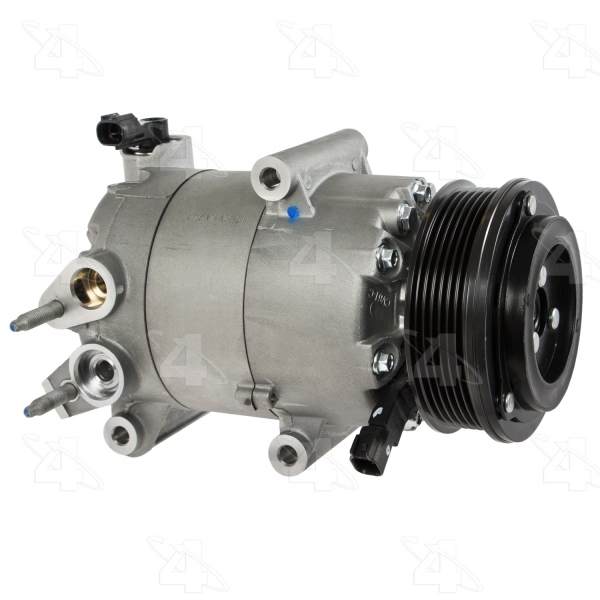

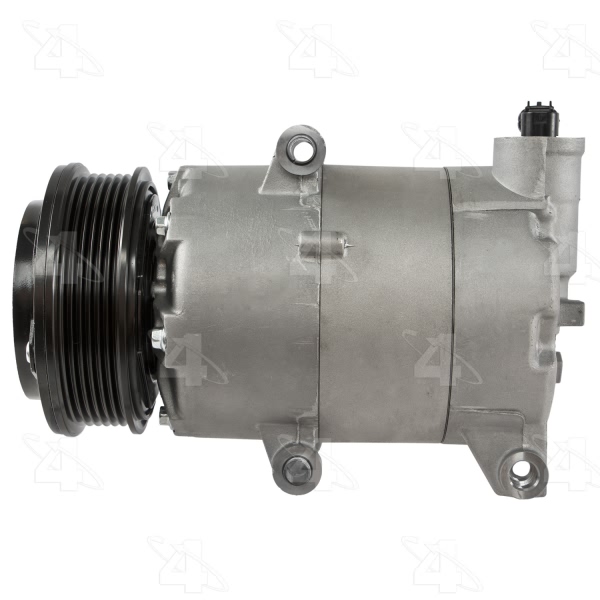

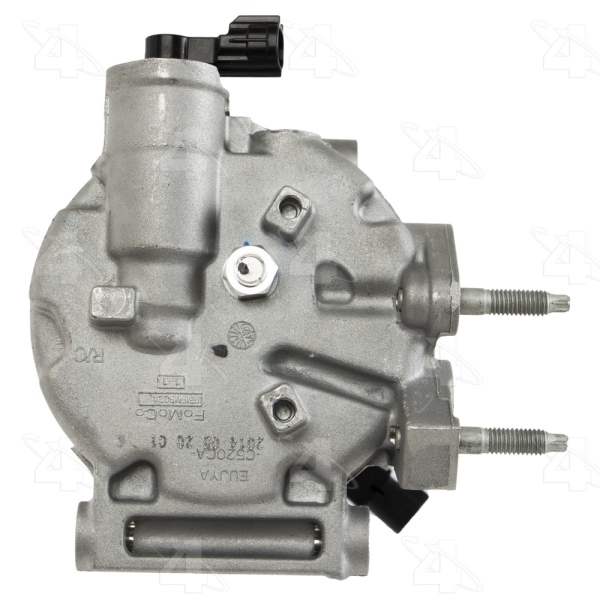

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.875 |
Belt Width MM | 22.000 |
Clutch Included | Yes |

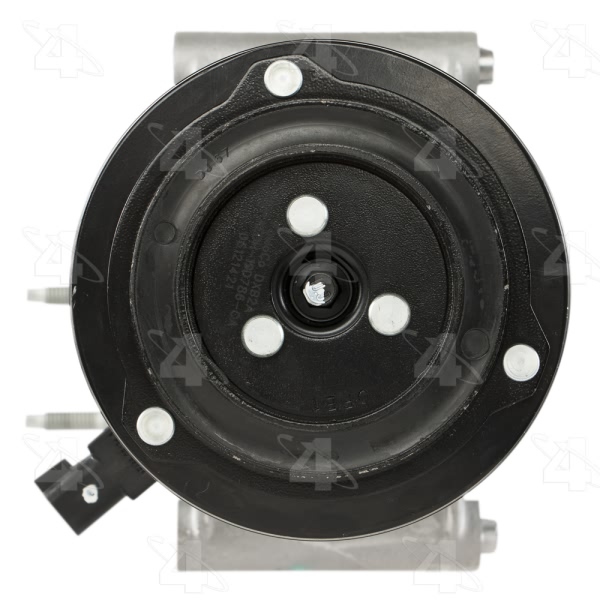

Clutch Maximum Diameter | 4.250 |
Coil Clock Position | 2 |

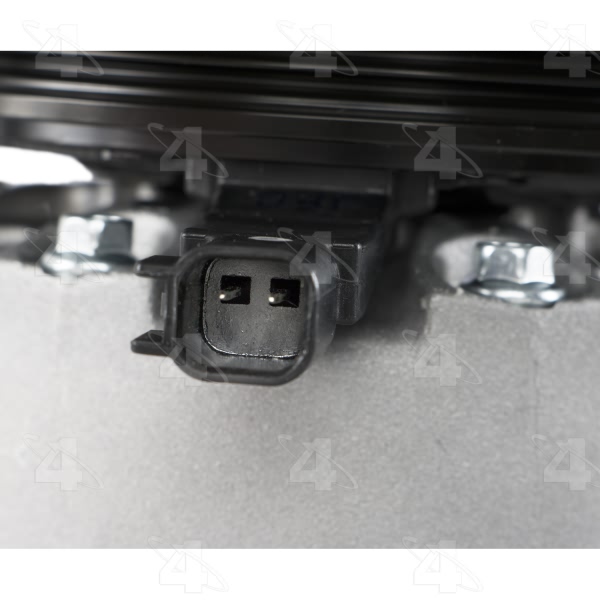

Coil Type | Pin |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
Compressor Type | HCC-VS16 |

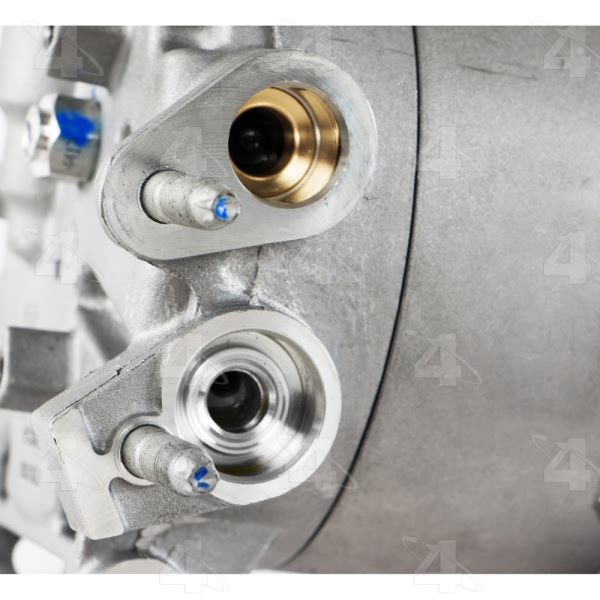

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 2.453125 |

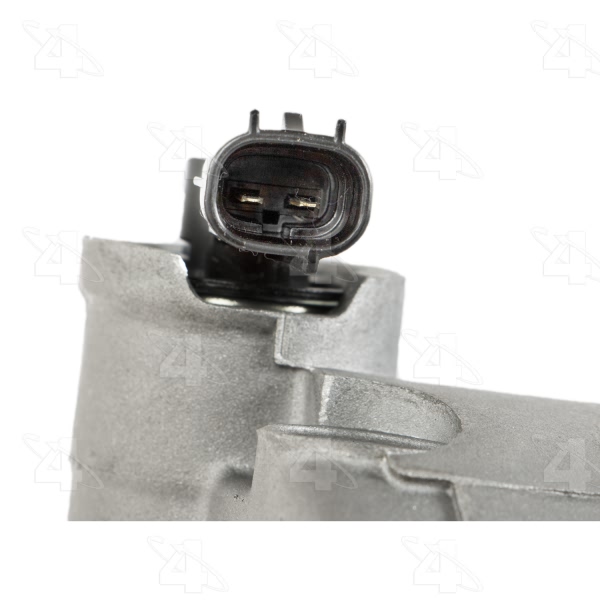

ECV Harness Connector | SE25F, 26897 Female / / SE23M, 26883 Male |
Mount Distance MM | 62.000 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24241] / Sealing Washer Kit |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24243] / Tear Drop Sealing Washer |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24258] / Sealing Washer |
O-Ring C Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 107.950 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.250 |
Pulley Outside Diameter | 4.250 |
Pulley Ridge Diameter | 4.250 |
Refrigerant Type | R-134a or R1234yf |
Suction Port Type | Sealing Washer |
Terminal Type | Pin |
UPC | 096361623965 |
Year Make Model | Trim | Engine |
---|---|---|
2013-2016 Ford Escape | All Trims | 4 Cyl 1.6L |
2017 Ford Escape | All Trims | 4 Cyl 1.5L |
2018-2019 Ford Escape | SE | All Engines |
2018-2019 Ford Escape | SEL | All Engines |
2014-2016 Ford Transit Connect | All Trims | 4 Cyl 1.6L |
