Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 198355 |

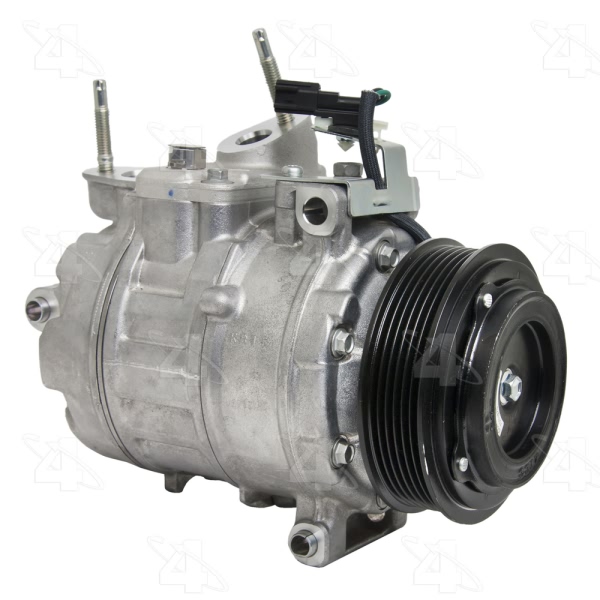

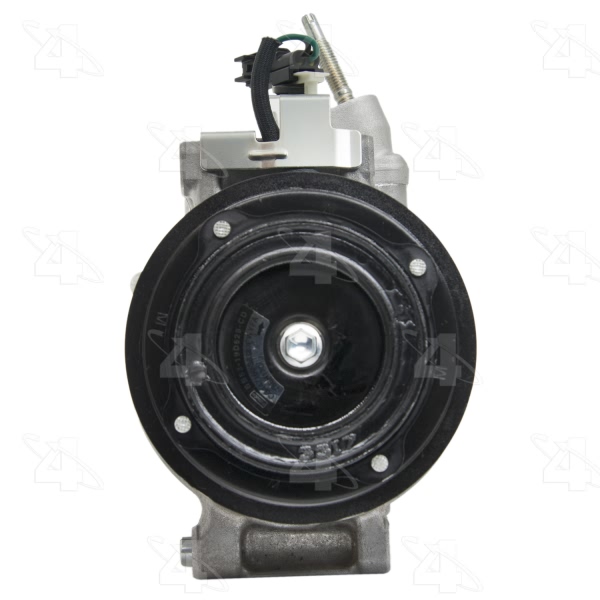

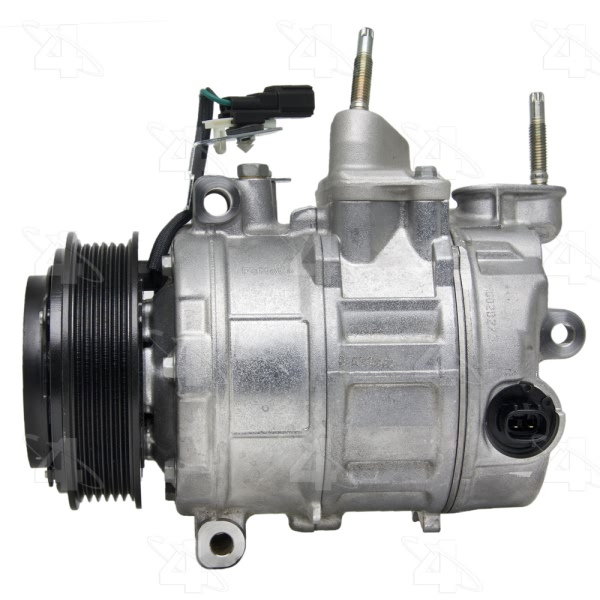

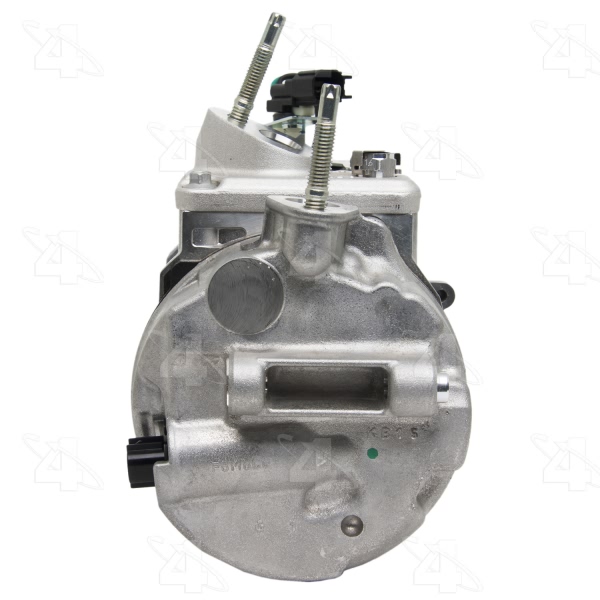

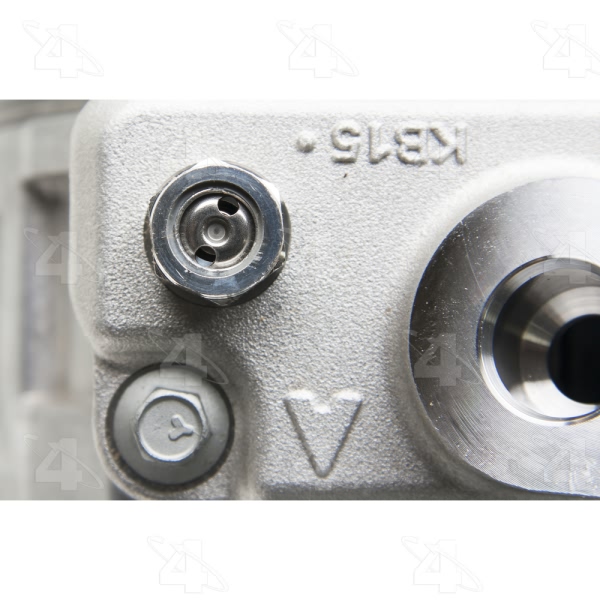

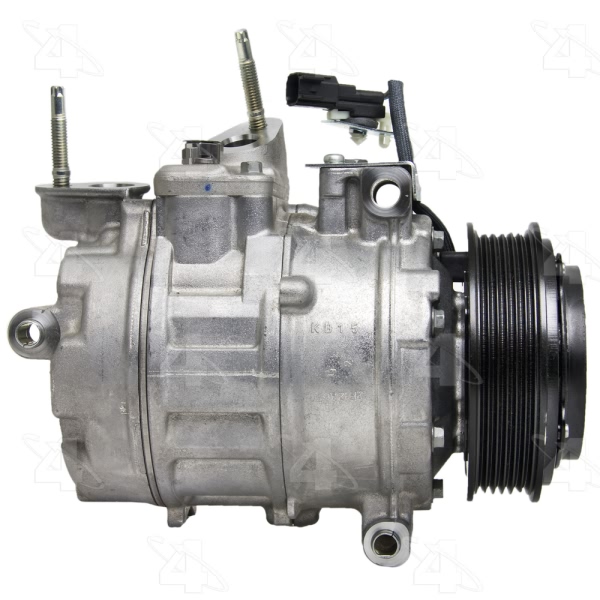

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.3125 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 7SBH17 |

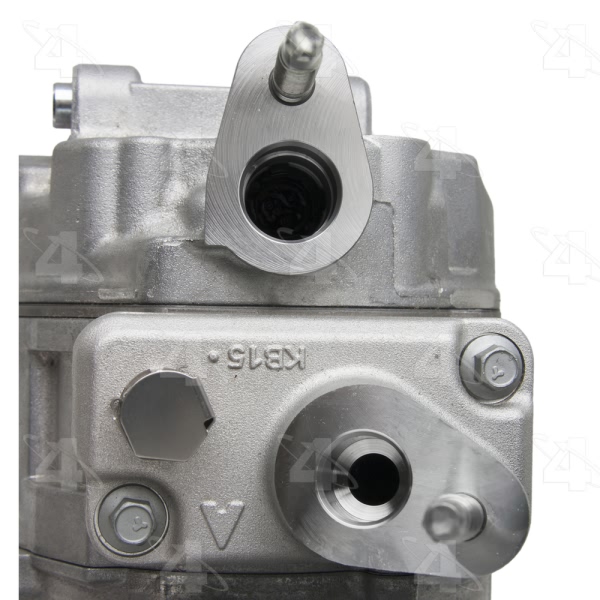

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.703125 |

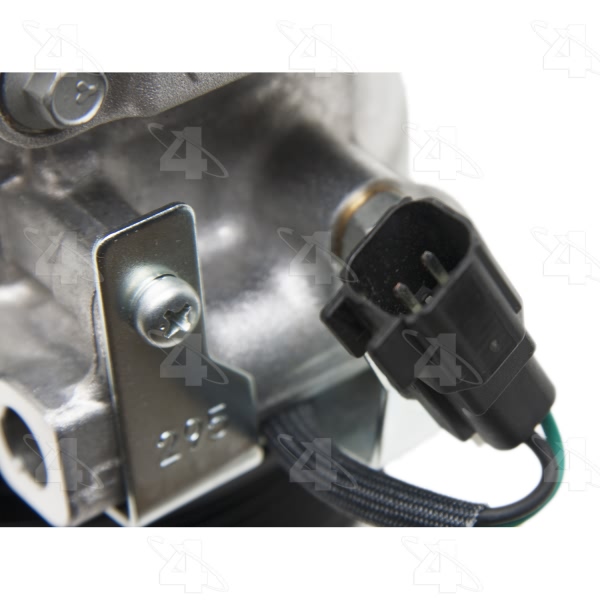

ECV Harness Connector | SE10F, 26984 Female / / SE10M, 26878 Male |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | 24257 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24642 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | 24243 |
O-Ring C Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 109.474 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.3125 |
Pulley Outside Diameter | 4.3125 |
Pulley Ridge Diameter | 4.3125 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Terminal Type | Pin |
UPC | 096361623750 |
Year Make Model | Trim | Engine |
---|---|---|
2012-2015 Ford Edge | All Trims | 4 Cyl 2.0L |
2012-2013 Ford Explorer | All Trims | 4 Cyl 2.0L |
