Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 198339 |

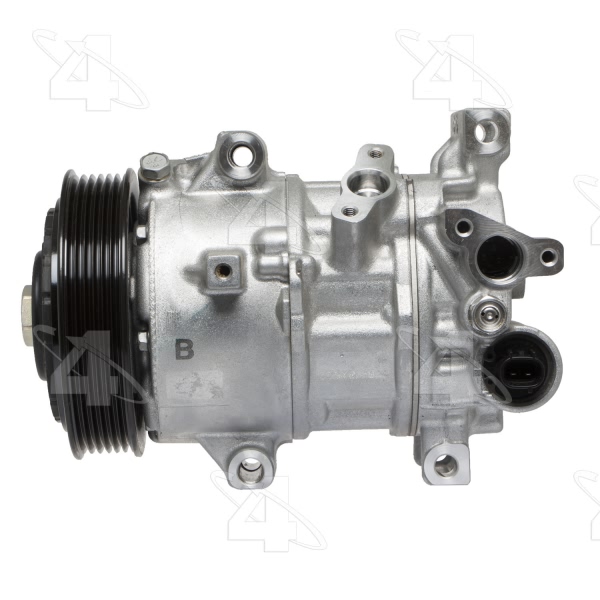

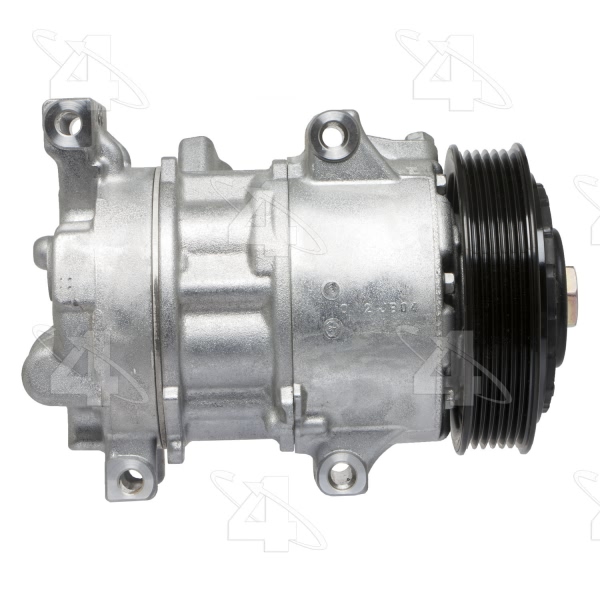

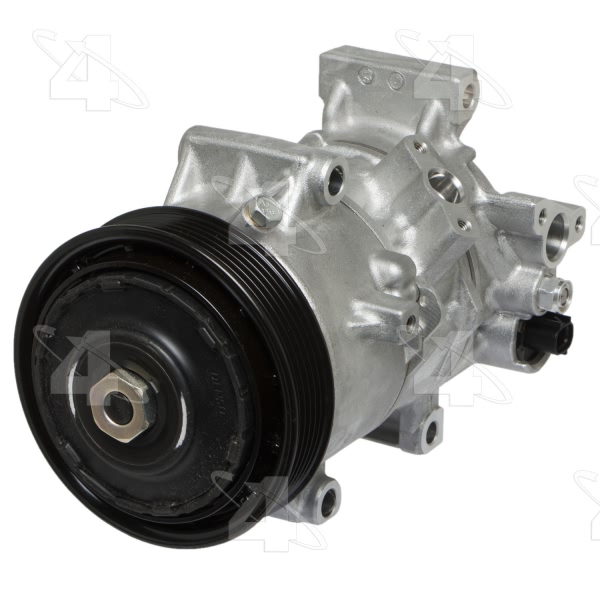

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.53125 |
Coil Clock Position | Lead Wire |
Coil Voltage | NR |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 6SEU14C |
Distance From Clutch To Mounting Flange | 1.625 |
ECV Harness Connector | SE10F, 26984 Female / / SE10M, 26878 Male |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | 24661 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24681 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |

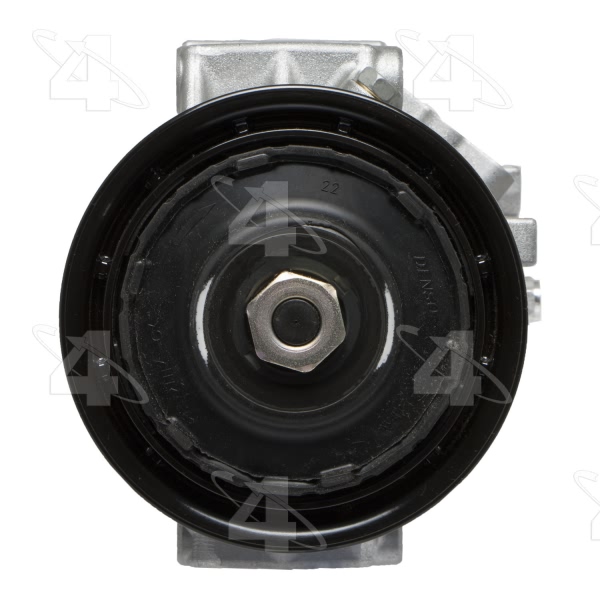

Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.53125 |
Pulley Outside Diameter | 4.53125 |
Pulley Ridge Diameter | 4.53125 |
Refrigerant Type | R134a |

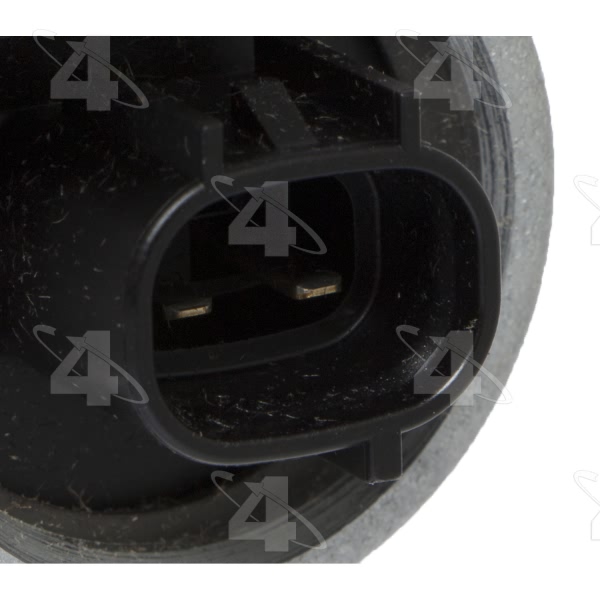

Terminal Type | Pin |
UPC | 096361629707 |
Year Make Model | Trim | Engine |
---|---|---|
2016 Scion iM | All Trims | All Engines |
2014-2017 Toyota Corolla | All Trims | All Engines |
2018 Toyota Corolla | L | 4 Cyl 1.8L |
2018 Toyota Corolla | LE | 4 Cyl 1.8L |
2018 Toyota Corolla | LE Eco | 4 Cyl 1.8L |
2018 Toyota Corolla | SE | 4 Cyl 1.8L |
2018 Toyota Corolla | XLE | 4 Cyl 1.8L |
2018 Toyota Corolla | XSE | 4 Cyl 1.8L |
