Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 198336 |

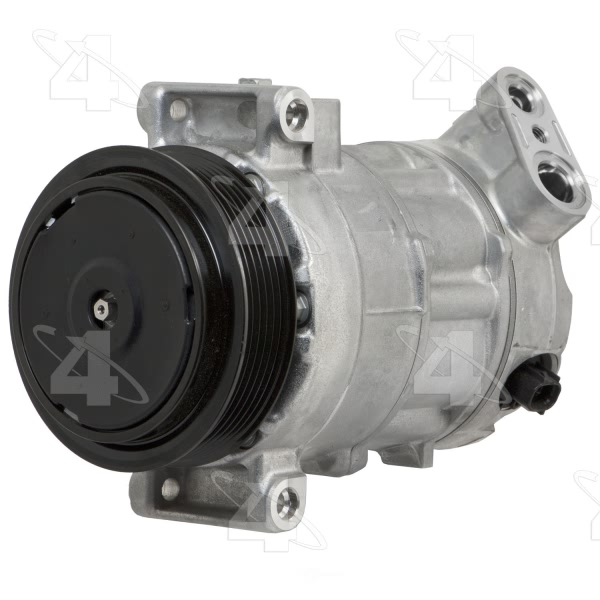

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.33 |
Coil Clock Position | Lead Wire |
Coil Voltage | NR |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 6SEU16C |
Distance From Clutch To Mounting Flange | PAG 46 |
ECV Harness Connector | SE10F, 26984 Female / / SE10M, 26878 Male |
Mounting Hardware | Not Included |
Mounting Type | 3 Tangent One on Rear Head |
New or Reman | New |
O-Ring A Number/Desc | 24402 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24404 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.33 |
Pulley Outside Diameter | 4.33 |
Pulley Ridge Diameter | 4.33 |
Refrigerant Type | R134a |
Terminal Type | Pin |
UPC | 096361629189 |
Year Make Model | Trim | Engine |
---|---|---|
2008-2009 Pontiac G8 | All Trims | 6 Cyl 3.6L |
