Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 198324 |

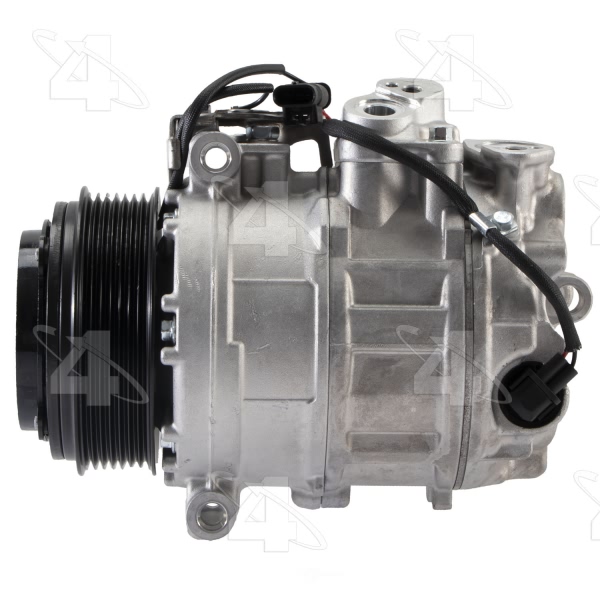

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.328125 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
Compressor Type | 7SAS17C |
Distance From Clutch To Mounting Flange | 0.640625 |

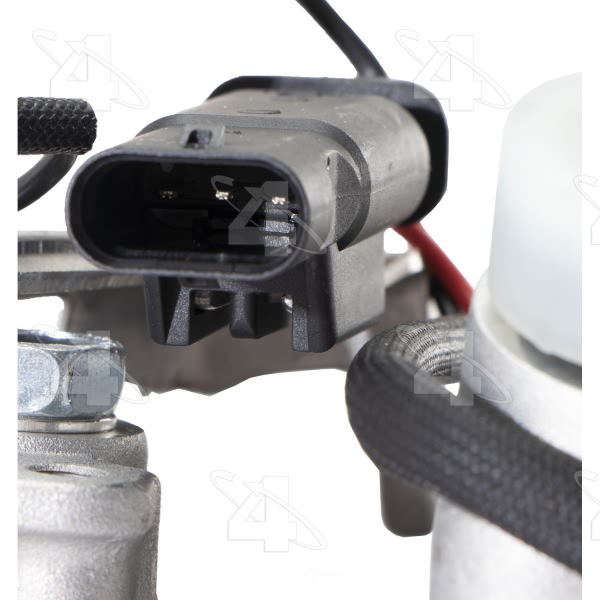

ECV Harness Connector | SE05F, 26892 Female / / SE22M, 26882 Male |
Mounting Hardware | Not Included |
Mounting Type | 3 Tangent One on Rear Head |
New or Reman | New |
O-Ring A Number/Desc | 24402 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24404 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 4.328125 |
Pulley Outside Diameter | 4.328125 |
Pulley Ridge Diameter | 4.328125 |
Refrigerant Type | R-134a or R1234yf |
Terminal Type | Pin |
UPC | 096361102545 |
Year Make Model | Trim | Engine |
---|---|---|
2016 Mercedes-Benz GL350 | All Trims | All Engines |
2017 Mercedes-Benz GLS350d | All Trims | All Engines |
