Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 198312 |

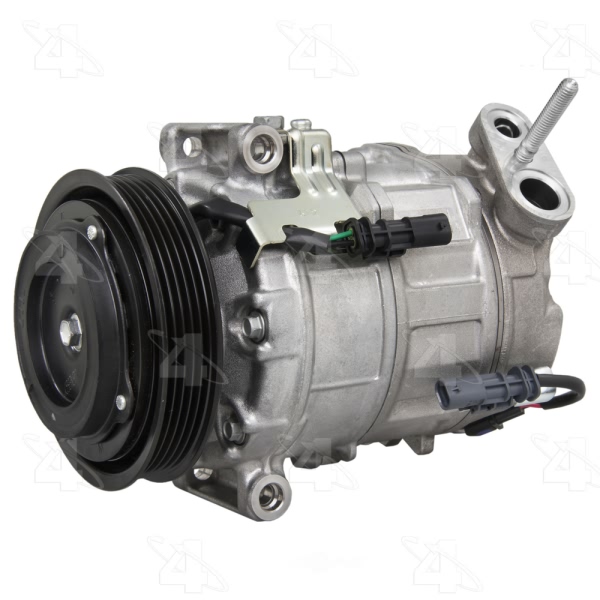

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.71875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 7SBH17 |

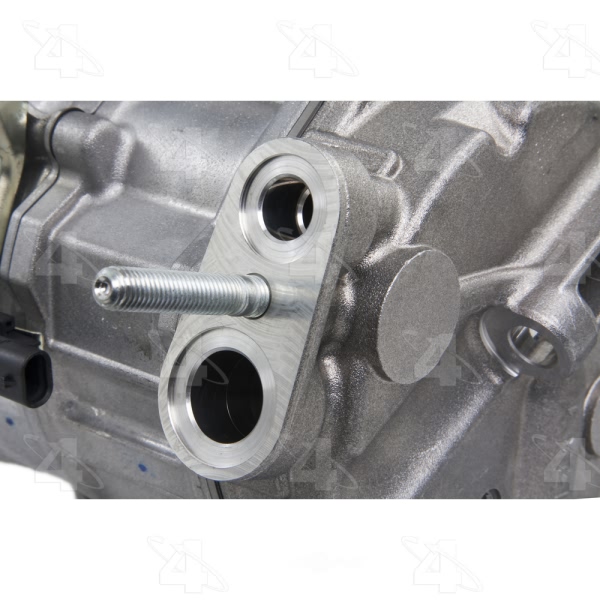

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.203125 |

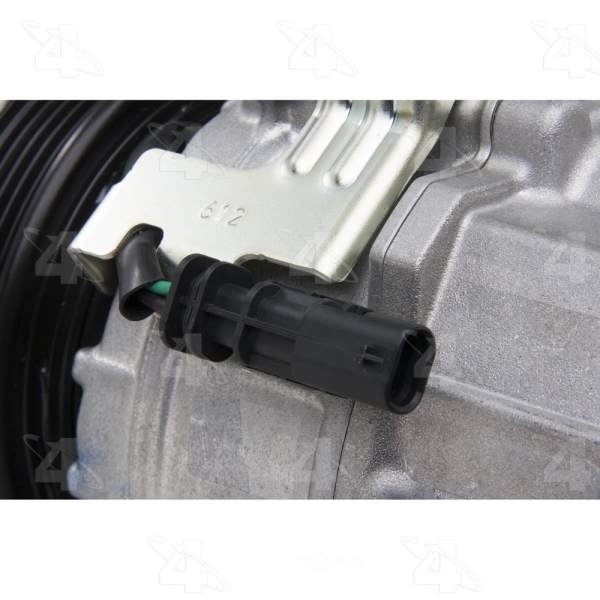

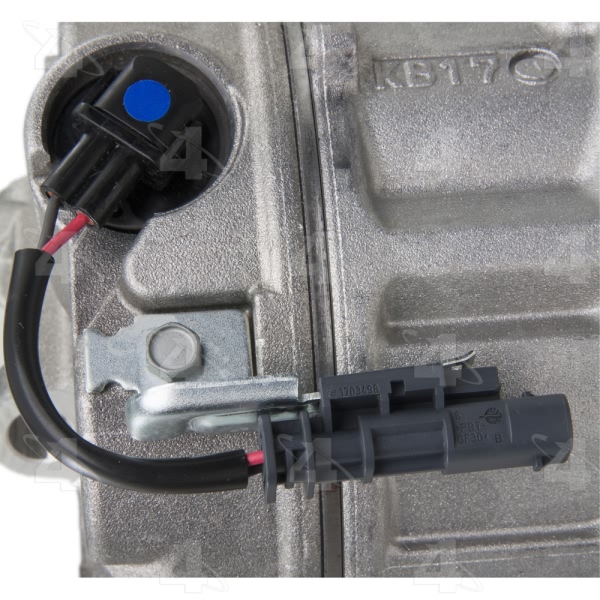

ECV Harness Connector | SE31F, 26900 Female / / SE23M, 26883 Male |
Mount Distance MM | 30.734 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 119.888 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 4.71875 |
Pulley Outside Diameter | 4.71875 |
Pulley Ridge Diameter | 4.71875 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Terminal Type | Pin |
UPC | 096361623644 |
Year Make Model | Trim | Engine |
---|---|---|
2012-2015 Chevrolet Equinox | All Trims | 4 Cyl 2.4L |
2012-2015 GMC Terrain | All Trims | 4 Cyl 2.4L |
