Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 198311 |

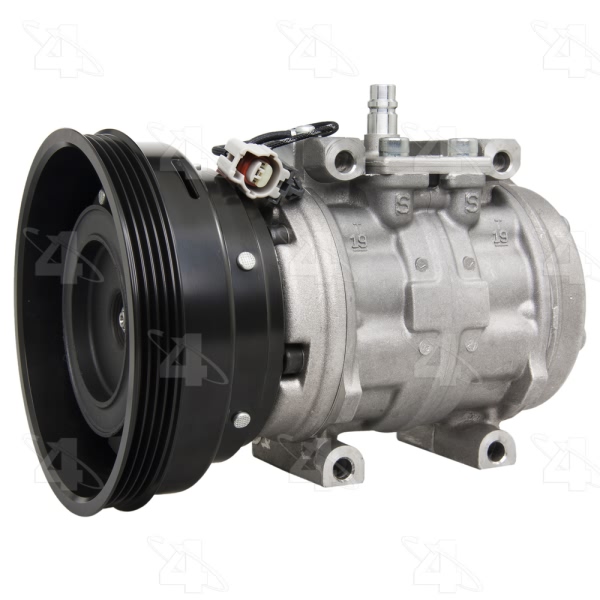

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.90625 |

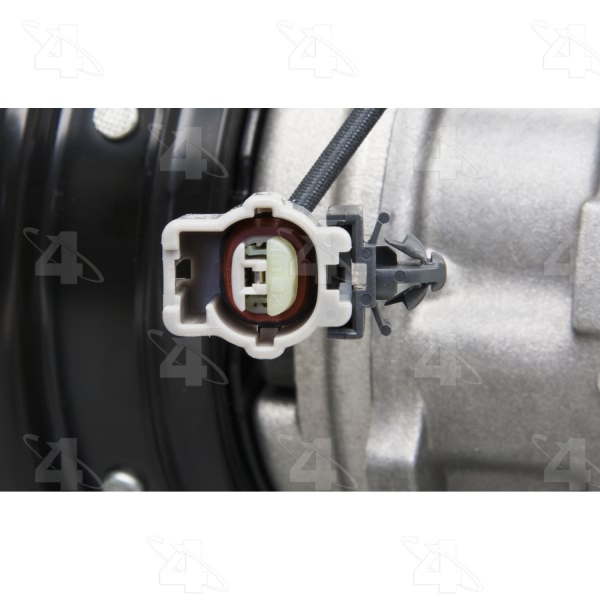

Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10p13C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 3.250 |
Mount Distance MM | 82.550 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24613] / Green O-Ring |
O-Ring A Quantity | 4 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 149.860 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 5.90625 |
Pulley Outside Diameter | 5.90625 |
Pulley Ridge Diameter | 5.90625 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Spade |
UPC | 096361623538 |
Year Make Model | Trim | Engine |
---|---|---|
1991-1995 Toyota MR2 | All Trims | All Engines |
