Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 198310 |

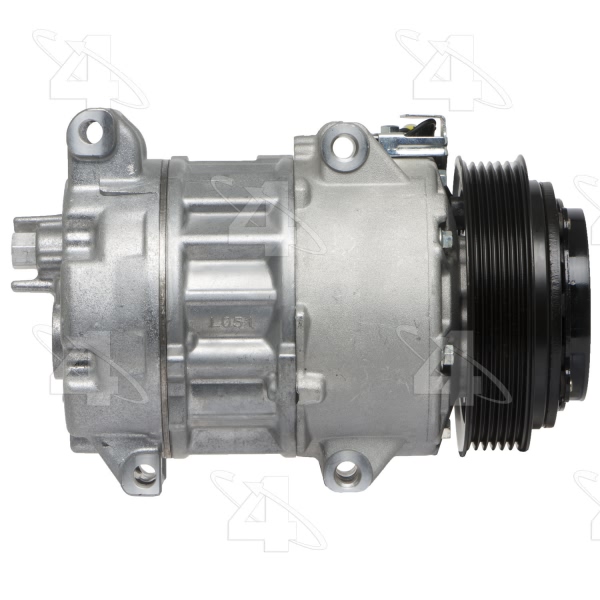

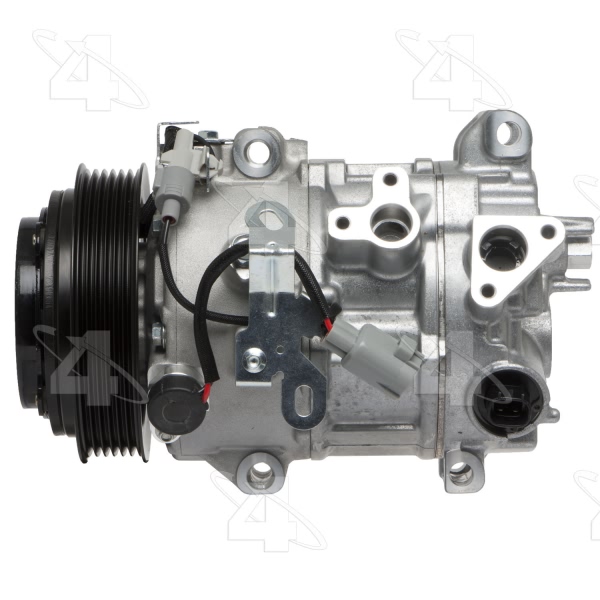

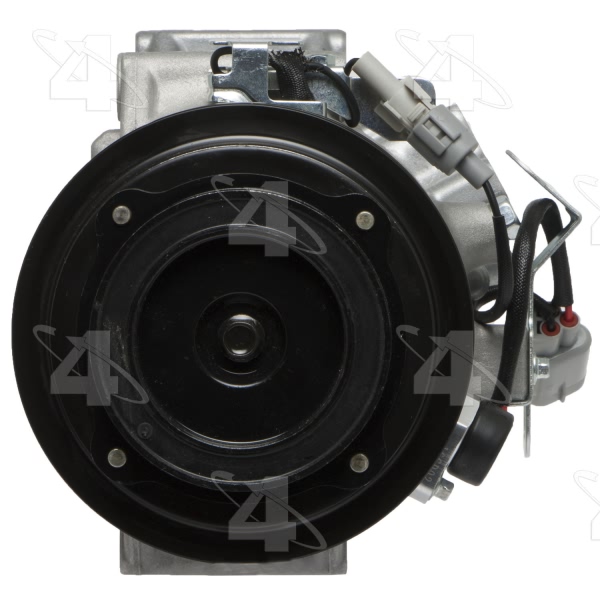

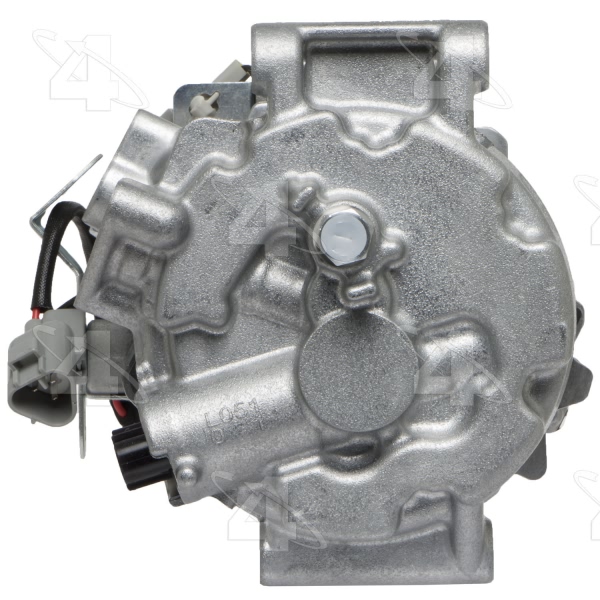

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.734375 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 7SAS17C |
Distance From Clutch To Mounting Flange | 1.65625 |
ECV Harness Connector | SE10F, 26984 Female / / SE10M, 26878 Male |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | 24661 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24681 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 120.142 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.734375 |
Pulley Outside Diameter | 4.734375 |
Pulley Ridge Diameter | 4.734375 |
Refrigerant Type | R134a |
Terminal Type | Pin |
UPC | 096361027626 |
Year Make Model | Trim | Engine |
---|---|---|
2013-2014 Toyota RAV4 | All Trims | 4 Cyl 2.5L |
2015 Toyota RAV4 | All Trims | All Engines |
2016-2018 Toyota RAV4 | All Trims | 4 Cyl 2.5L |
