Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 198307 |

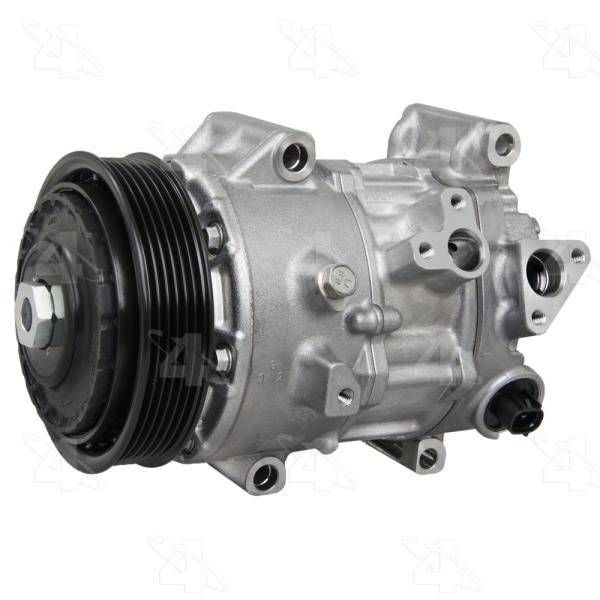

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.734375 |
Coil Clock Position | Wire Lead |
Coil Type | 7 MM Pin |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 7SES17C |

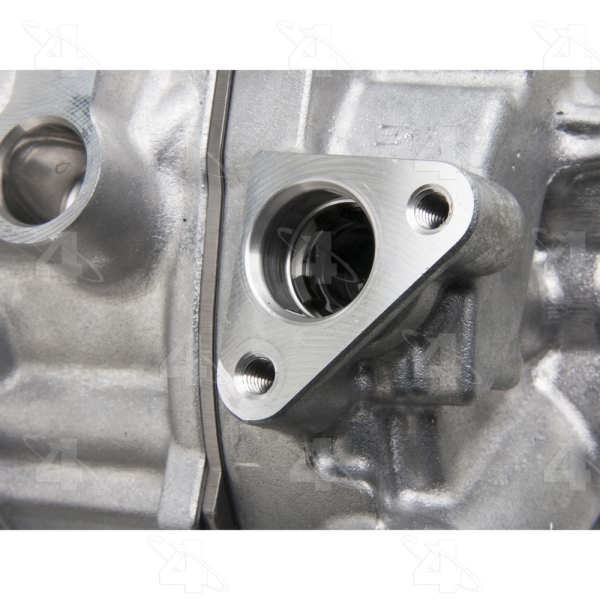

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.625 |

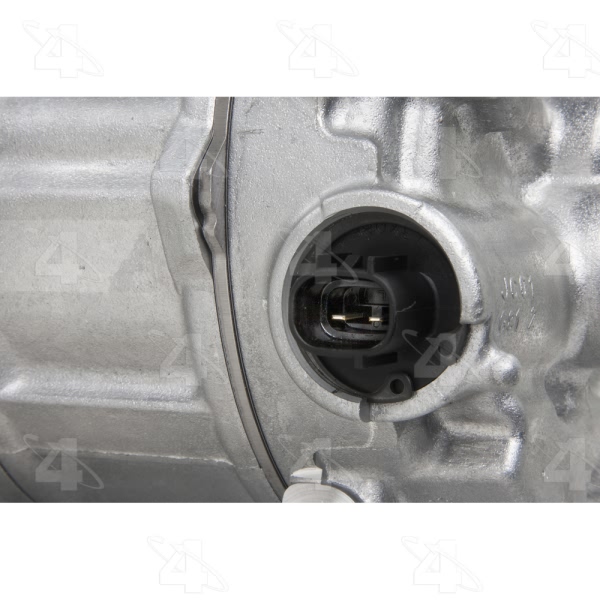

ECV Harness Connector | SE10F, 26984 Female / / SE10M, 26878 Male |
Mount Distance MM | 41.402 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 120.142 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.734375 |
Pulley Outside Diameter | 4.734375 |
Pulley Ridge Diameter | 4.734375 |
Refrigerant Type | R134a |

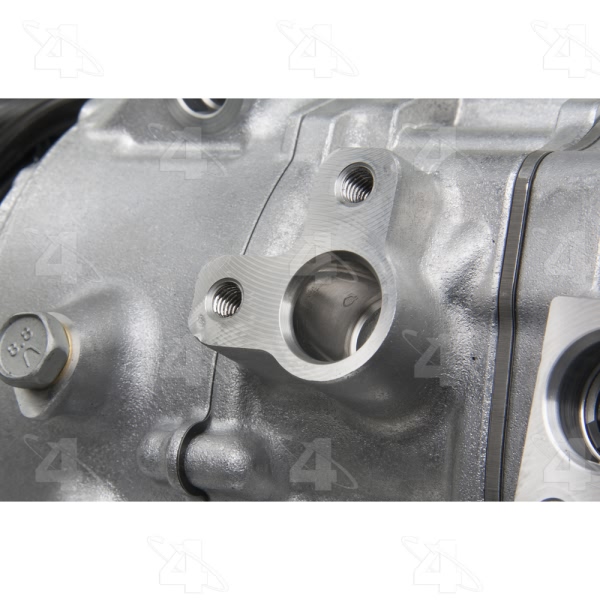

Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361623613 |
Year Make Model | Trim | Engine |
---|---|---|
2015-2017 Lexus NX200t | All Trims | All Engines |
2018 Lexus NX300 | All Trims | All Engines |
2018 Lexus NX300h | All Trims | All Engines |
2018 Toyota Camry | All Trims | 4 Cyl 2.5L |
2018 Toyota Camry | L | 4 Cyl 2.5L |
2018 Toyota Camry | LE | 4 Cyl 2.5L |
2018 Toyota Camry | SE | 4 Cyl 2.5L |
2018 Toyota Camry | XLE | 4 Cyl 2.5L |
2018 Toyota Camry | XSE | 4 Cyl 2.5L |
2014-2017 Toyota Highlander | All Trims | 4 Cyl 2.7L |
