Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 198301 |

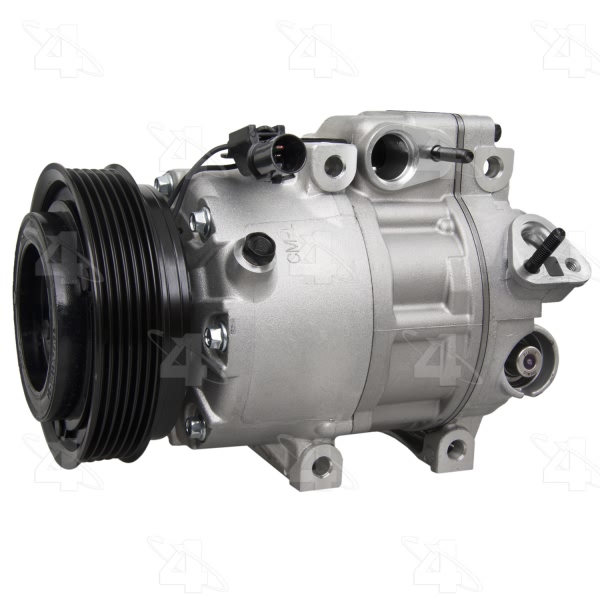

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | VS18M |

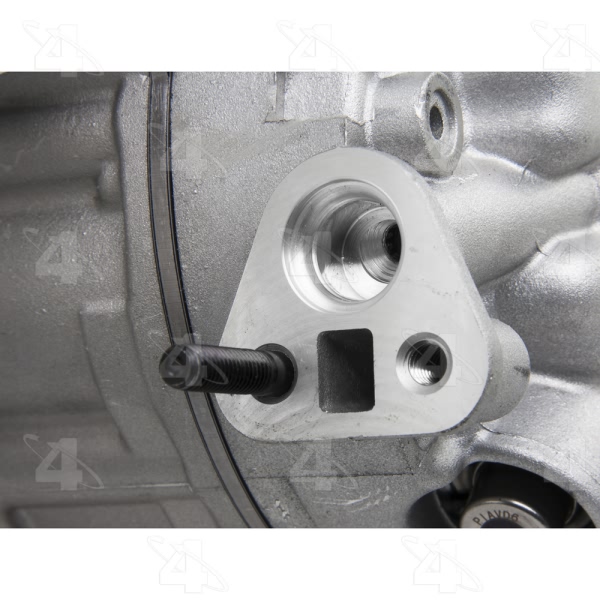

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.796875 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24131] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24622] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 123.825 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.875 |
Pulley Outside Diameter | 4.875 |
Pulley Ridge Diameter | 4.875 |
Refrigerant Type | R134a |

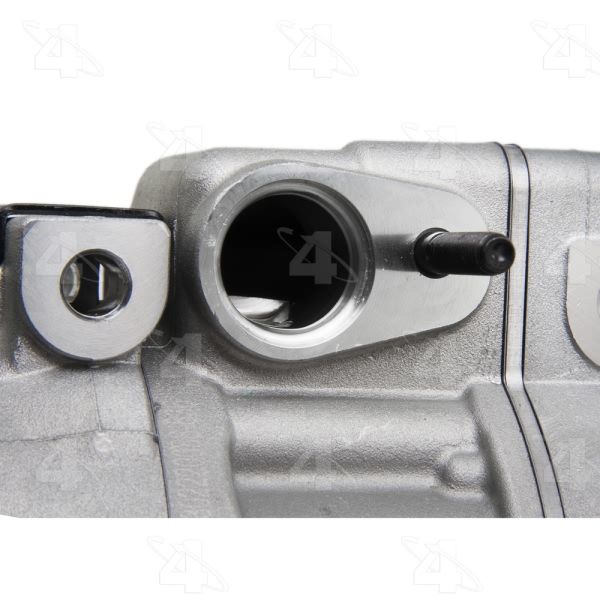

Suction Port Type | O-Ring |

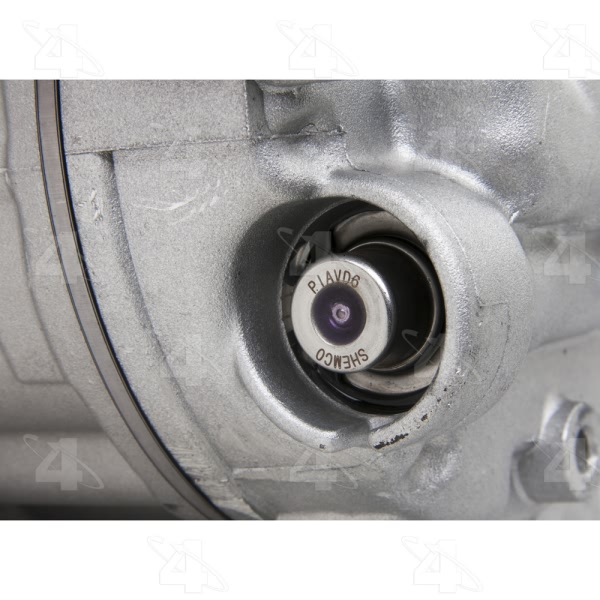

Switch Included | Control Valve |

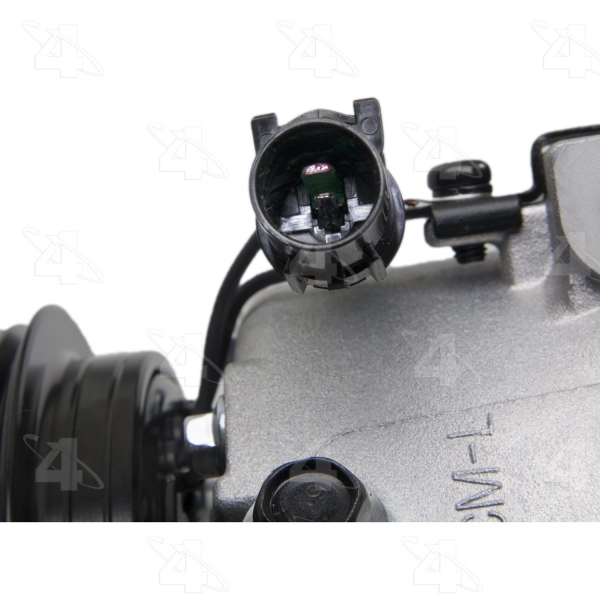

Terminal Type | Pin |
UPC | 096361623514 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2009 Hyundai Santa Fe | All Trims | 6 Cyl 3.3L |
2007-2012 Hyundai Veracruz | All Trims | All Engines |
