Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 198299 |

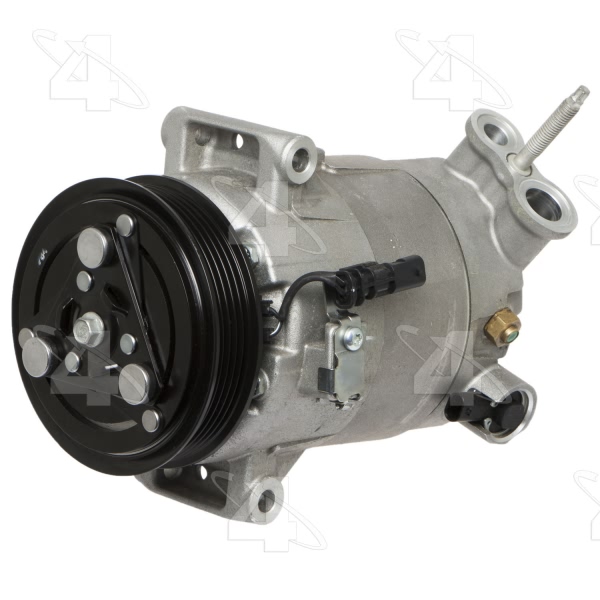

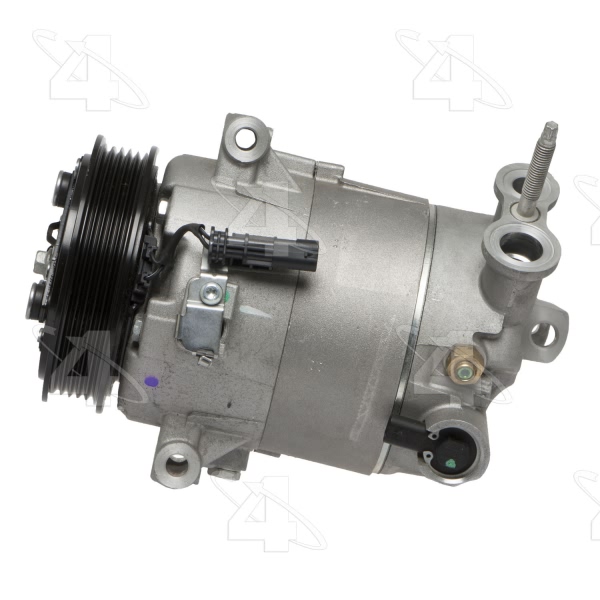

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.3125 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | CVC |
Distance From Clutch To Mounting Flange | 1.203125 |

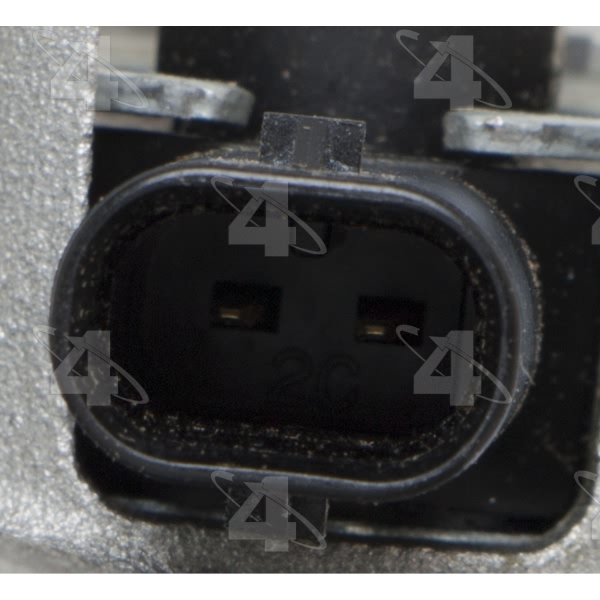

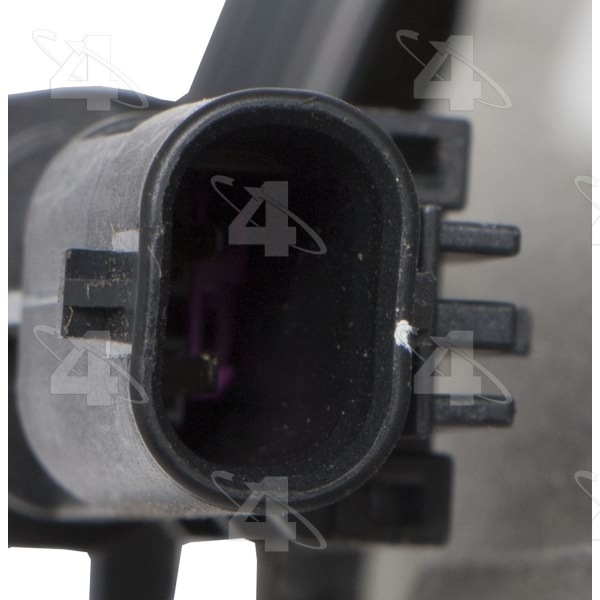

ECV Harness Connector | SE31F, 26900 Female / / SE23M, 26883 Male |
Mounting Hardware | Not Included |
Mounting Type | 3 Ear & 1 Tangent |
New or Reman | New |
O-Ring A Number/Desc | 24402 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24404 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 4.3125 |
Pulley Outside Diameter | 4.3125 |
Pulley Ridge Diameter | 4.3125 |
Refrigerant Type | R134a |
Terminal Type | Pin |
UPC | 096361027619 |
Year Make Model | Trim | Engine |
---|---|---|
2015-2019 Chevrolet Colorado | All Trims | 4 Cyl 2.5L |
2018-2019 Chevrolet Equinox | All Trims | 4 Cyl 1.5L |
2015-2019 GMC Canyon | All Trims | 4 Cyl 2.5L |
2018-2019 GMC Terrain | All Trims | 4 Cyl 1.5L |
