Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 198277 |

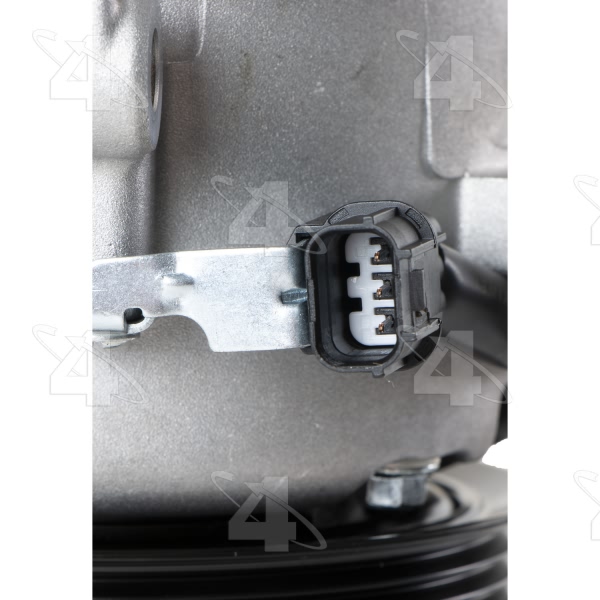

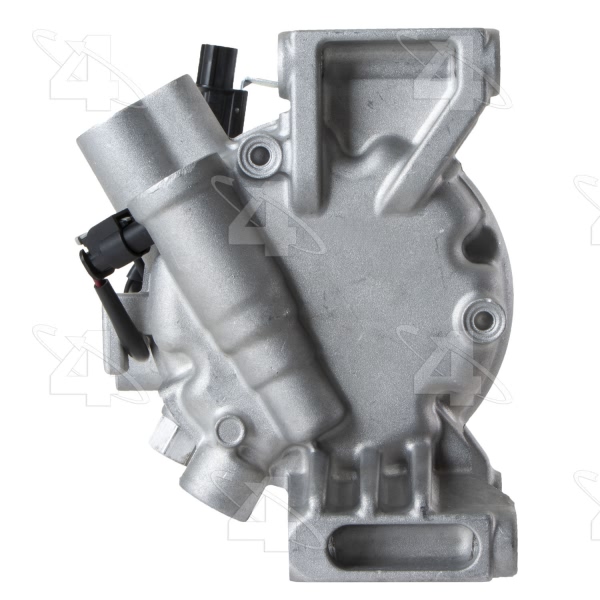

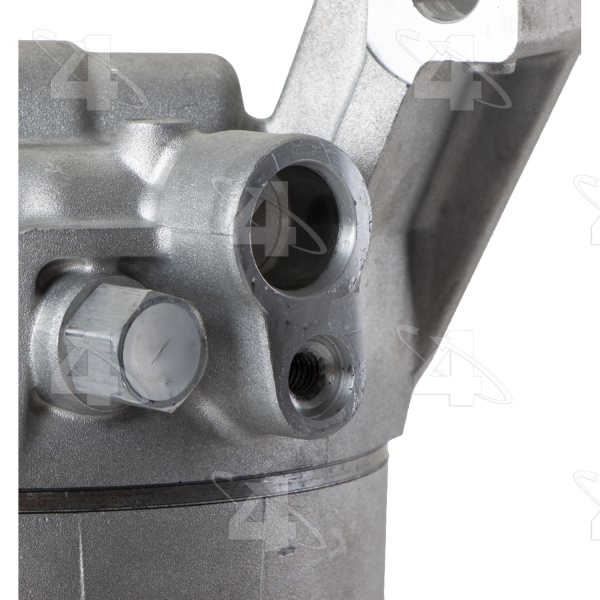

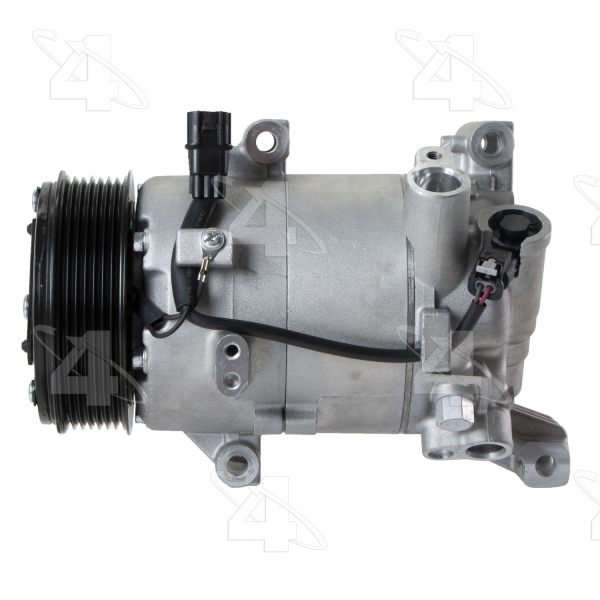

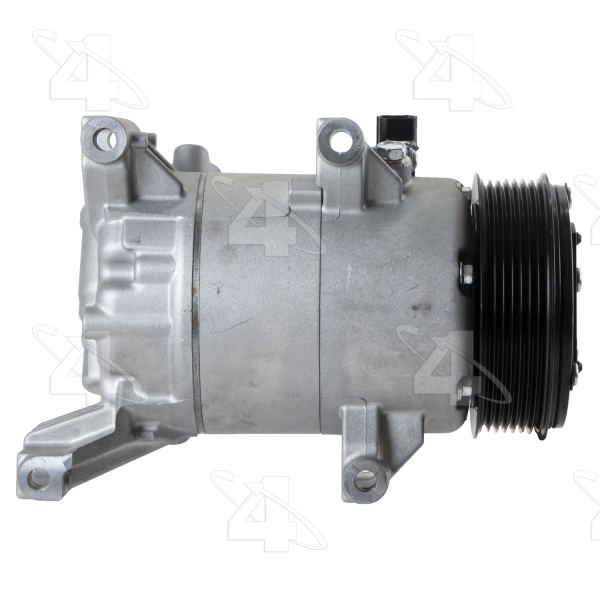

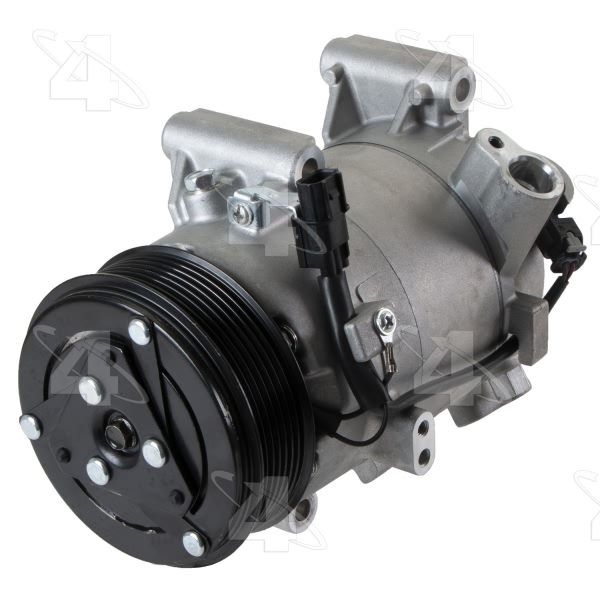

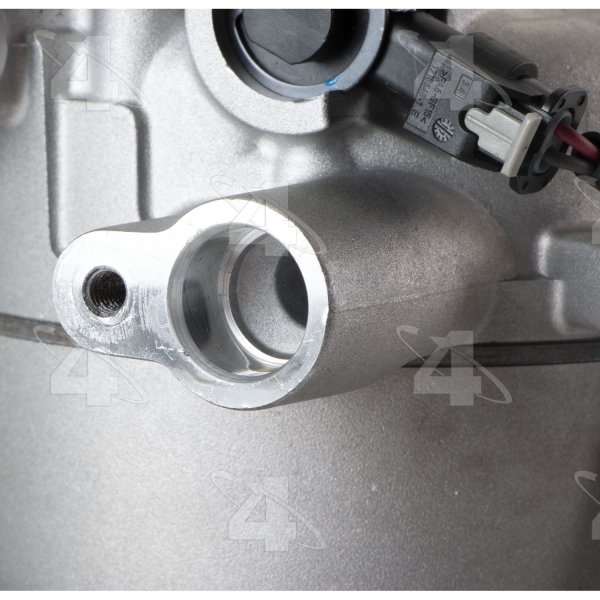

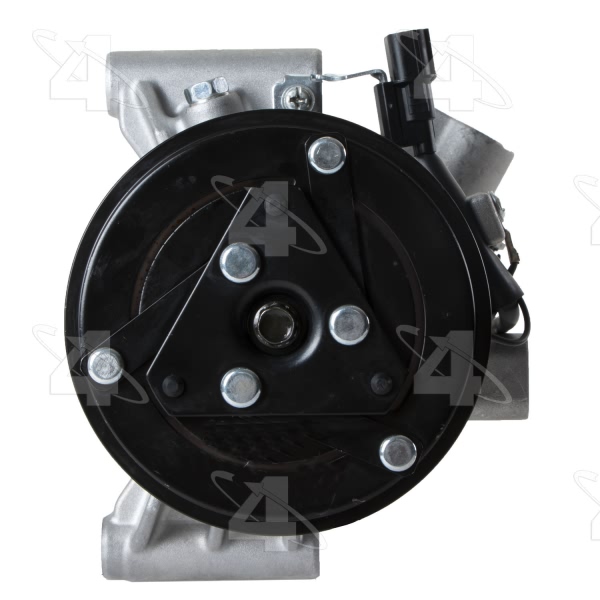

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.330 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
Compressor Type | CVC |
Distance From Clutch To Mounting Flange | 2.000 |
ECV Harness Connector | SE05F, 26892 Female / / SE22M, 26882 Male |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | 24661 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24681 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 4.330 |
Pulley Outside Diameter | 4.330 |
Pulley Ridge Diameter | 4.330 |
Refrigerant Type | R-134a or R1234yf |
Terminal Type | Pin |
UPC | 096361090460 |
Year Make Model | Trim | Engine |
---|---|---|
2017 Honda CR-V | All Trims | 4 Cyl 1.5L |
2018 Honda CR-V | EX | 4 Cyl 1.5L |
2018 Honda CR-V | EX-L | 4 Cyl 1.5L |
2018 Honda CR-V | Touring | 4 Cyl 1.5L |
2019 Honda CR-V | EX-L | All Engines |
2016-2017 Honda Civic | All Trims | 4 Cyl 1.5L |
2017-2018 Honda Civic | EX | 4 Cyl 1.5L |
2017-2018 Honda Civic | EX-L | 4 Cyl 1.5L |
2017-2018 Honda Civic | EX-T | 4 Cyl 1.5L |
2017-2018 Honda Civic | LX | 4 Cyl 1.5L |
