Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 178316 |

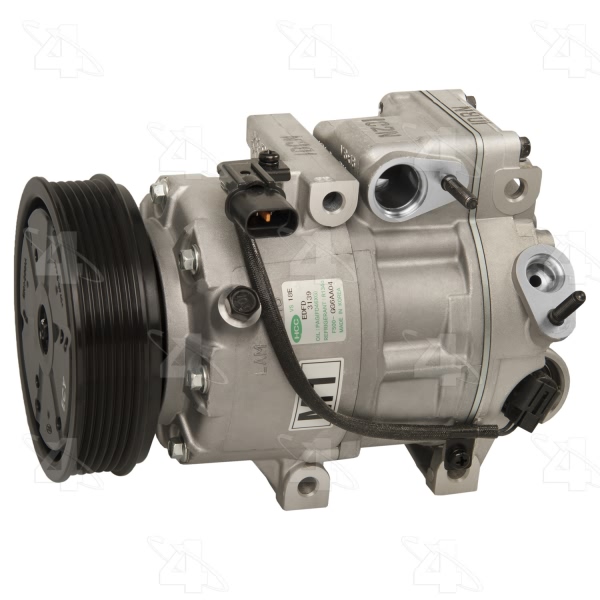

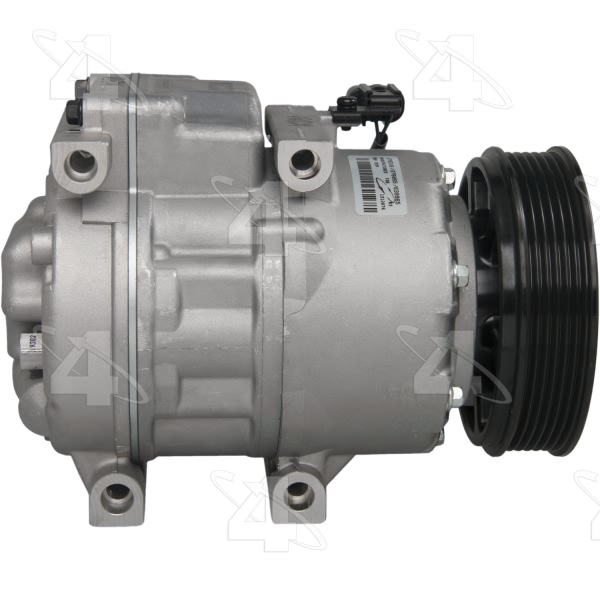

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.6875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | VS18E |

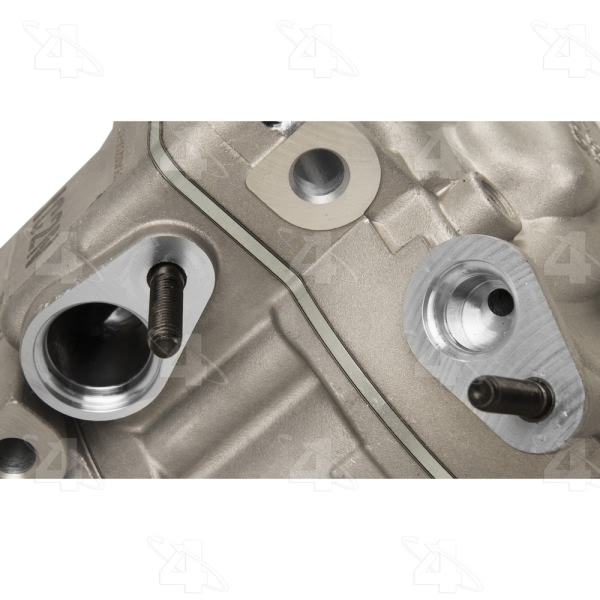

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.796875 |

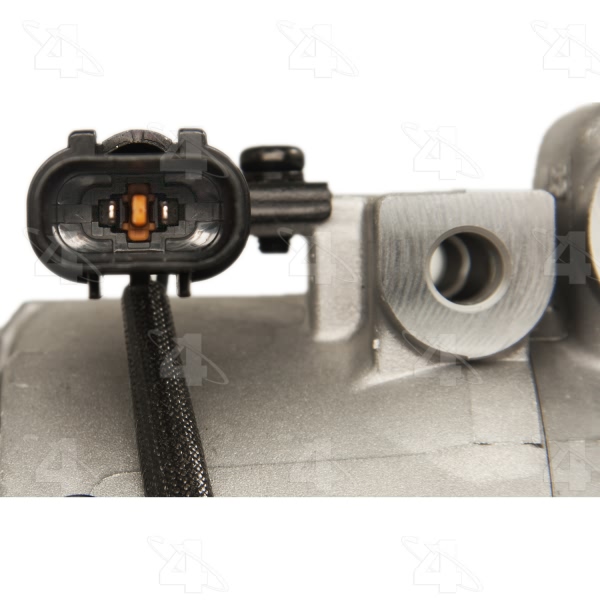

ECV Harness Connector | SE30F, 26899 Female / / SE22M, 26882 Male |
Mount Distance MM | 71.120 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24602] / Green Round O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24659] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |

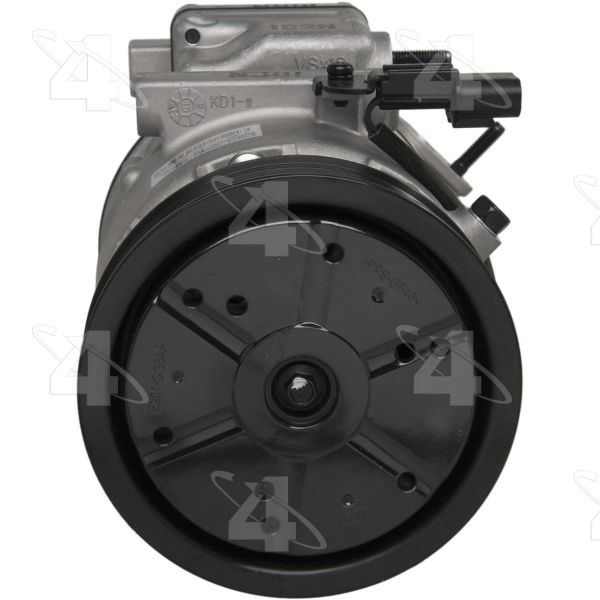

Pulley Belt Type | Serpentine |
Pulley Diameter MM | 118.872 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.6875 |
Pulley Outside Diameter | 4.6875 |
Pulley Ridge Diameter | 4.6875 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361622272 |
Year Make Model | Trim | Engine |
---|---|---|
2009-2012 Hyundai Genesis | All Trims | 6 Cyl 3.8L |
